Average Resistance | 104.77 Ohm 20 °C |
---|---|
[Uc] Control Circuit Voltage | 220 V AC 50 Hz |
Control Circuit Type | AC 50 Hz |

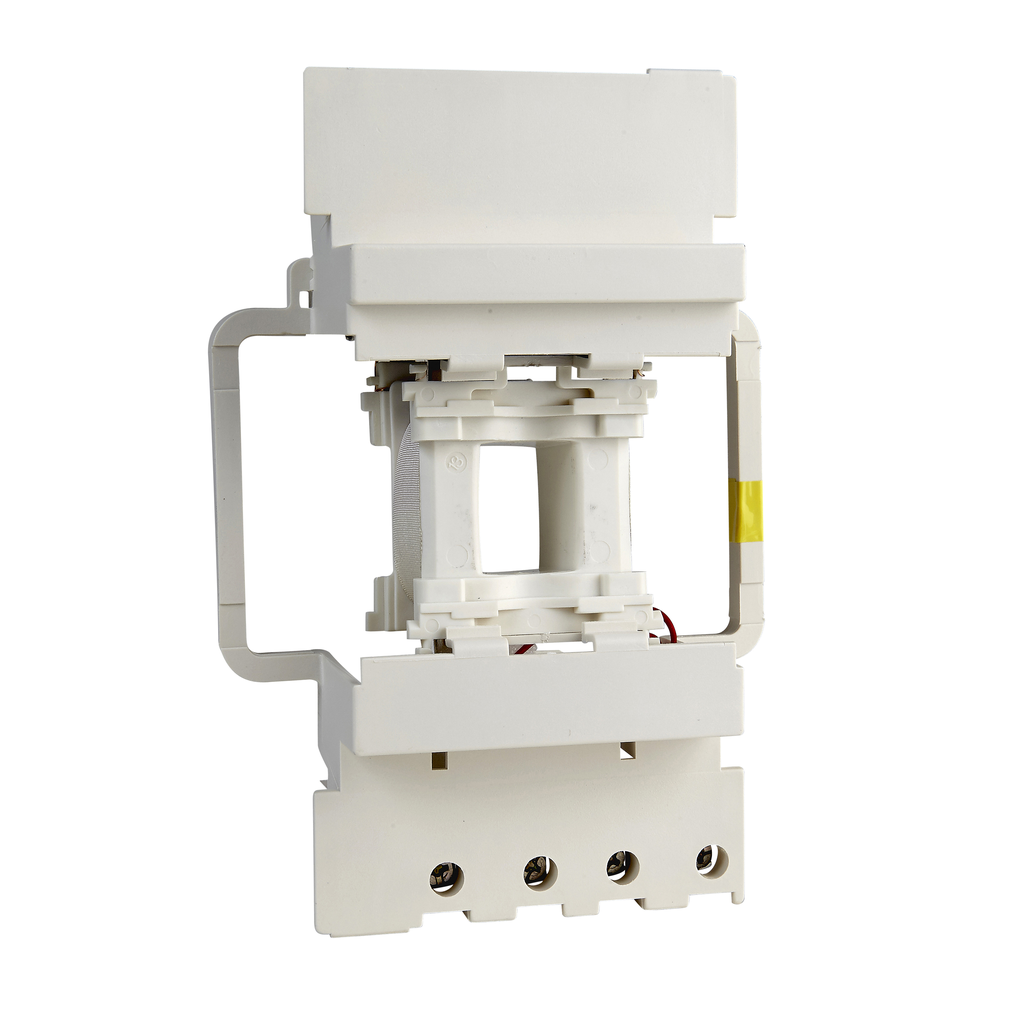

Product Or Component Type | contactor coil |
Range | TeSys |
Inductance Of Closed Circuit | 7.65 H |
Maximum Operating Rate | 2400 cyc/h 60 °C |
Mechanical Durability | 8 Mcycles |
Product Compatibility | LC1D115 |
Device Short Name | LX1D8 |
Warranty | 18 months |
Control Circuit Voltage Limits |
|
Inrush Power In Va | 300-300 VA 50 Hz 0.8 20 °C) |
Coil Technology | without built-in suppressor module |
Hold-In Power Consumption In Va | 22-22 VA 50 Hz 0.3 20 °C) |
Heat Dissipation | 3-8 W 50 Hz |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP110205EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Ambient Air Temperature For Operation | -5-60 °C |
Net Weight | 0.26 kg |
