LV850062SP

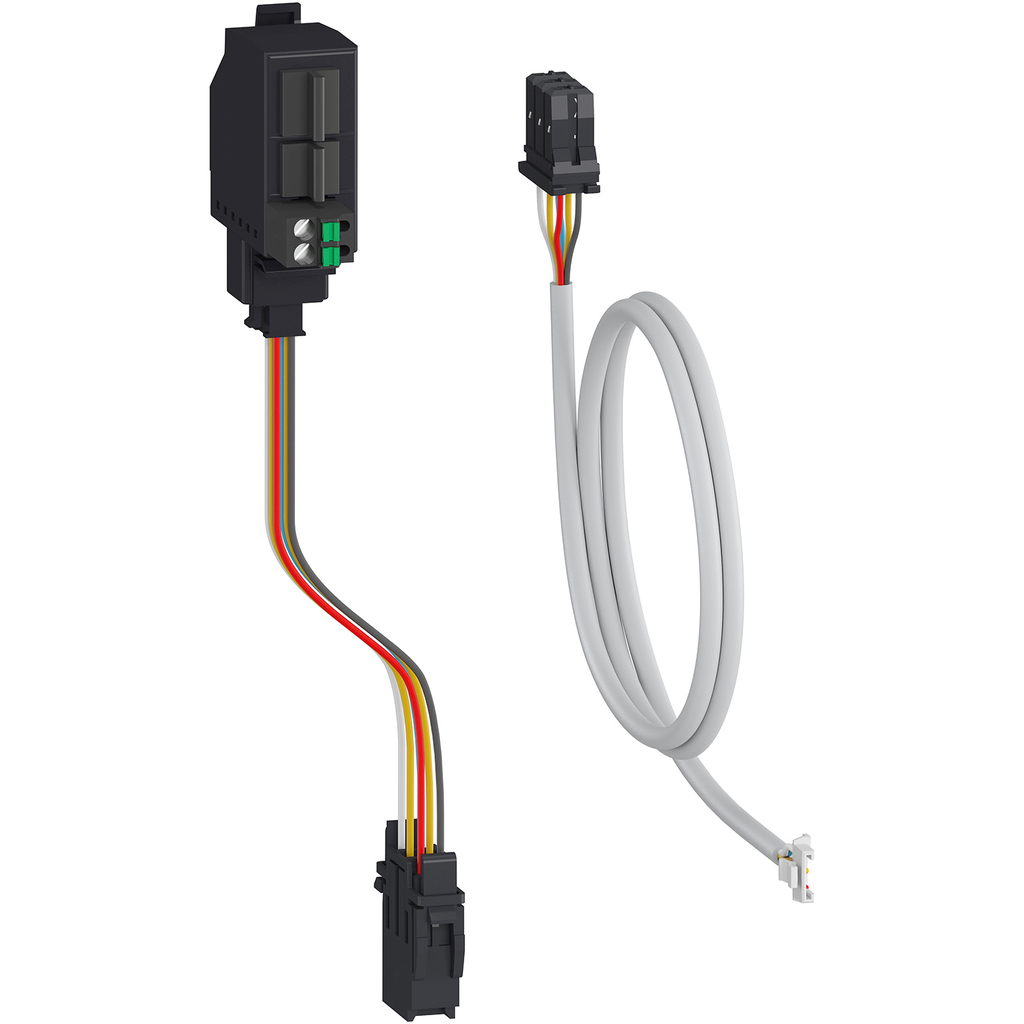

ULP port module kit, MasterPact MTZ2/MTZ3 drawout, spare part
Specifications
| Range Compatibility |
|
|---|---|
| Product Or Component Type | connection adapter |
| Device Application | communication |
| Range | MasterPact |
| Mounting Mode | drawout |
| Provided Equipment | 1 instruction sheet |
| Localisation On Device | behind control unit |
| Mounting Support | chassis |
| Maximum Supply Current | 0.8 A |
| Offer Type | spare part |
| Power Consumption In W | 16 W |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
Documents
- Spec Sheet
- Digest Catalog 07: Miniature and Molded Case Circuit Breakers - 0100CT1901_SEC-07 (pdf)
- MasterPact MTZ Catalog numbers and spare parts 2022 Air circuit breakers and switch disconnectors - COM-POWER-LVMKT215EN (pdf)
- ULP Port Module for Fixed MasterPact MTZ - Instruction Sheet - NVE40791-02 (pdf)
- ULP Port Module for Drawout MasterPact MTZ2/MTZ3 - Instruction Sheet - NVE40797-03 (pdf)
