LV847093SP

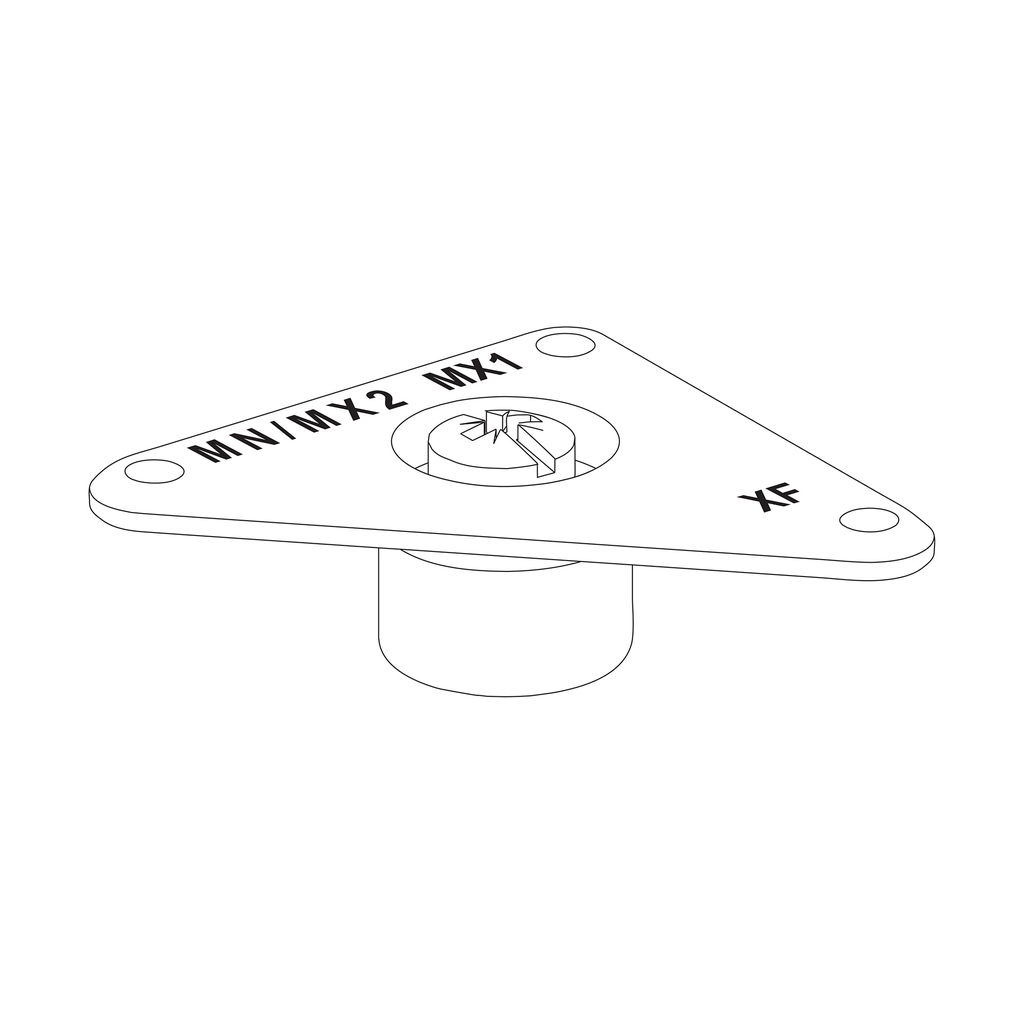

Voltage releases securing fixture, MasterPact MTZ, for voltage releases MX/XF/MN, spare part
Specifications
| Range Compatibility |
|
|---|---|
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | wiring cable |
| Range | MasterPact |
| Product Destination | circuit breaker |
| Provided Equipment | 1 instruction sheet |
| Localisation On Device | terminal block |
| Offer Type | spare part |
| Location Of Connection | top connector |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Halogen Content Performance | Halogen free product |
| Reach Free Of Svhc | Yes |
Documents
- Spec Sheet
- Digest Catalog 07: Miniature and Molded Case Circuit Breakers - 0100CT1901_SEC-07 (pdf)
- MasterPact MTZ Catalog numbers and spare parts 2022 Air circuit breakers and switch disconnectors - COM-POWER-LVMKT215EN (pdf)
- MasterPact MTZ1 - Drawout Circuit Breaker or Switch-Disconnector - Instruction Sheet - NVE35506-02 (pdf)
- MasterPact MTZ1 - Fixed Circuit Breaker or Switch-Disconnector - Instruction Sheet - NVE35505-02 (pdf)
- MasterPact MTZ - MN-MX-XF Diagnostic and Communicating Voltage Releases - Instruction Sheet - NVE40766-03 (pdf)
- MasterPact MTZ2/MTZ3 - Fixed Circuit Breaker or Switch-Disconnector - Instruction Sheet - NVE35469-05 (pdf)
- MasterPact MTZ-MN-MX-XF Voltage Releases - Instruction Sheet - NVE40749-02 (pdf)
