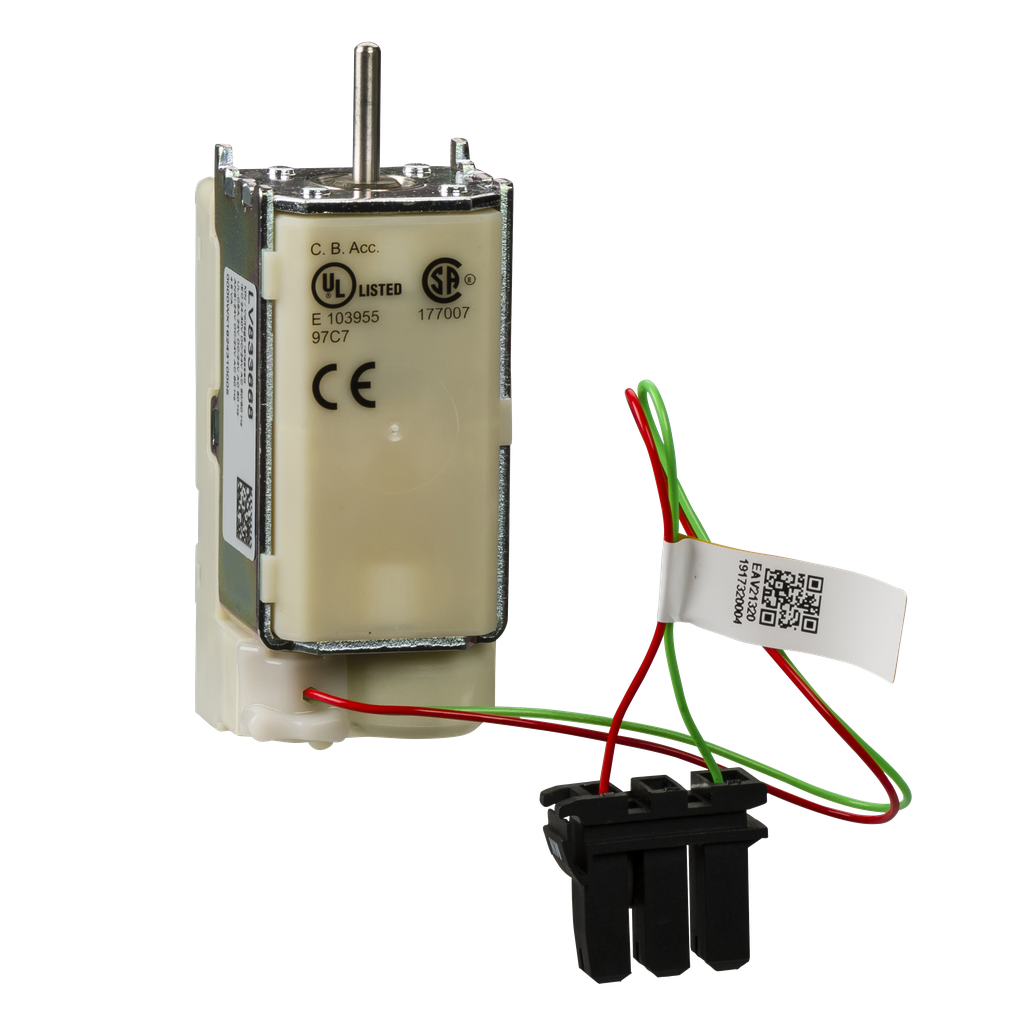

LV833671SP - MN undervoltage release, MasterPact MTZ1/MTZ2/MTZ3, standard, 200/250VAC 50/60Hz, 200/250VDC, spare part

LV833671SP

Add to Quote Catalogue

Operating Time	45 ms on opening MasterPact MTZ1 95 ms on opening MasterPact MTZ2 95 ms on opening MasterPact MTZ3
Range Compatibility	Masterpact (MasterPact MTZ1) circuit breaker Masterpact (MasterPact MTZ2) circuit breaker Masterpact (MasterPact MTZ3) circuit breaker
Voltage Release Type	instantaneous
Product Or Component Type	undervoltage release
Device Application	safety
Device Short Name	MN
Range	MasterPact
[Uc] Control Circuit Voltage	200...250 V AC 50/60 Hz 200...250 V DC
Mounting Mode	fixed/drawout
Supply Holding Power	4.5 W
Provided Equipment	1 instruction sheet
Offer Type	spare part
Threshold Tripping Voltage	0.35...0.7 Un opening 0.85 Un closing
Control Type	standard
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI1607009EN
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1607009EN
Sustainable Offer Status	Green Premium product
Eu Rohs Directive	Compliant
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
