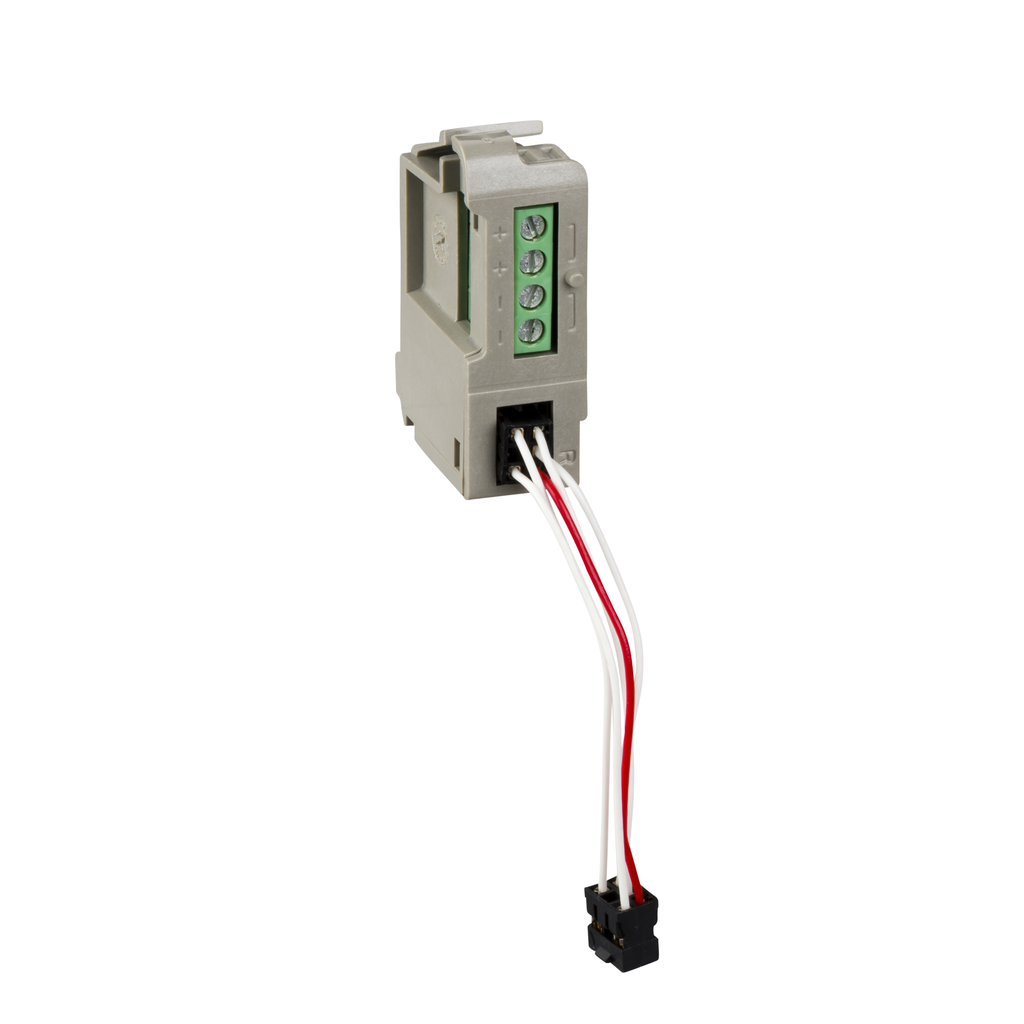

LV434210
power supply connector, ComPact NSX, 24VDC, for MicroLogic 5/6
This is an accessory for Micrologic trip unit for Compact NSX and PowerPact multistandard devices. It is a 24VDC power supply connector for Micrologic 5 and 6. It allows to connect an external 24 VDC power supply to Compact NSX and PowerPact devices.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Compatibility | ComPact (ComPact NSX) |
|---|---|
| Product Or Component Type | power supply connector |
| Accessory / Separate Part Type | trip unit accessories |
| Device Application | power supply |
| Warranty | 18 months |
| Trip Unit Name |
|
| [Us] Rated Supply Voltage | 24 V DC |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | ENVEOLI120604EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP120606EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
Documents
- Spec Sheet
- ComPacT NSX, PowerPacT H-, J-, L-Frame - 24 V DC Terminal Block - Instruction Sheet - GHD16256AA-06 (pdf)
- Instruction sheet for the voltage take-off, FPower NSX and GV7 - GHD1626001 (pdf)
- Catalogue Compact NSX & NSXm circuit breakers and switch disconnectors from 16 to 630A up to 690V - LVPED217032EN (pdf)
- ComPacT NSX & NSXm Circuit Breakers and Switch Disconnectors from 16 to 630A up to 690V - 2022 - LVPED221001EN (pdf)
