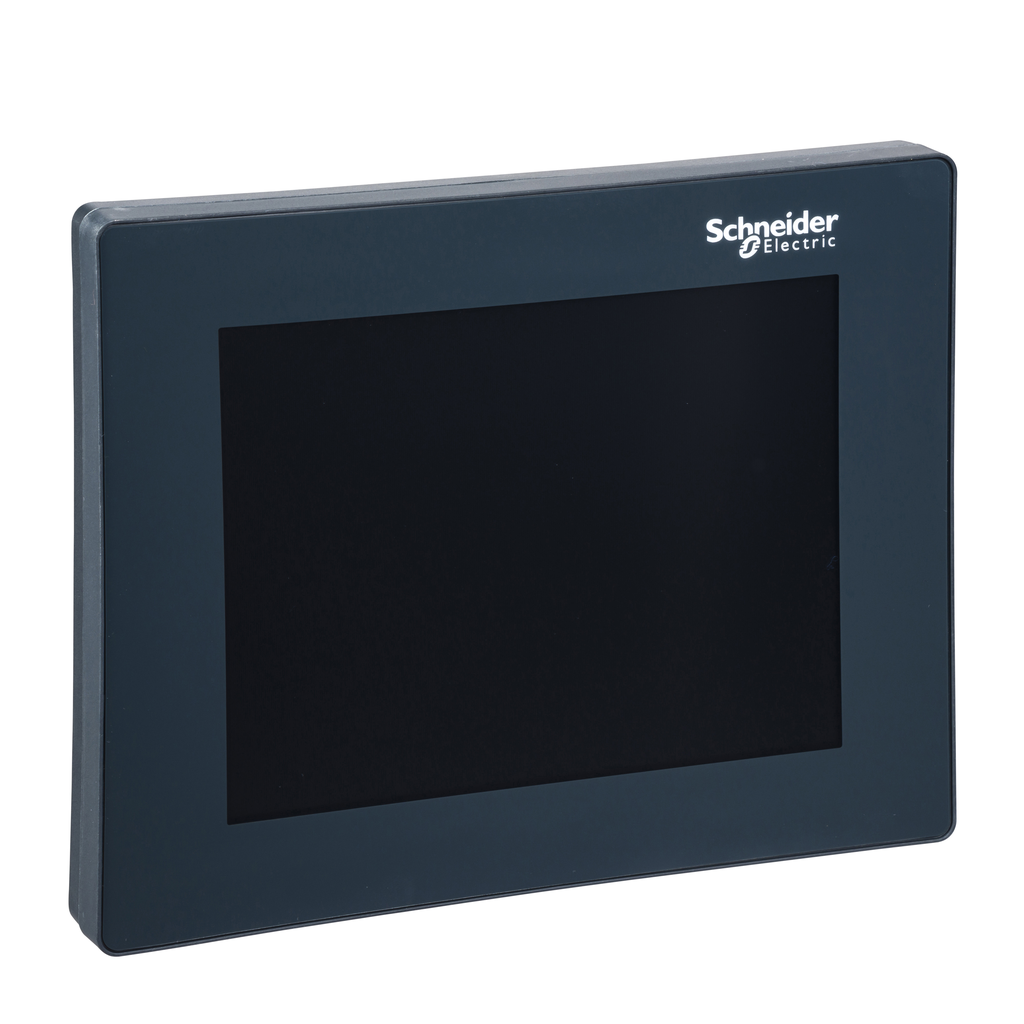

This FDM128 is an intelligent Ethernet switchboard display module and it is part of EnerlinX communication system. This display unit is compatible with Masterpact, Compact, PowerPact and PowerTag Link devices. It collects data from up to 8 devices over Ethernet, for a possibility of up to 160 PowerTag connected. FDM128 displays the measurements, alarms, and operating assistance data. It has a color TFT LCD touch screen, with a high resolution (320 pixels x 240 pixels). The FDM128 is equipped with a 24VDC terminal block and one RJ45 socket for Ethernet connection. It is easily installed in a switchboard through a standard 22mm door hole, and its dimensions are 129mm x 96mm x 56,5mm. The operating temperature range is between -10°C to 55°C, and the protection degree is IP65 on the front face. The FDM128 display module is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The FDM128 firmware can be updated using EcoStruxure Power Commission software.
Brand: Schneider Electric
Add to Quote CatalogueRange Compatibility |
|
---|---|
Accessory / Separate Part Category | display and signalling accessory |
Product Or Component Type | display module |
Product Name | Enerlin'X FDM |
Function Of Module |
|
Device Short Name | FDM128 |
Warranty | 18 months |
[Us] Rated Supply Voltage | 24 V DC - 15...20 % |
Height | 129 mm |
Standards |
|
Mounting Support | surface mount with kit |
Power Consumption In W | 6.8 W |
Display Resolution | 320 x 240 pixels QVGA |
Control Type | remote control |
Accessory / Separate Part Category |
|
View Angle Horizontal X Vertical | 70 x 80° |
Mounting Mode | flush mounting |
Width | 163 mm |
Display Type | active matrix colour TFT LCD with LED backlight |
Depth | 56.5 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1510011 |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Circularity Profile | ENVEOLI1510011EN |
Eu Rohs Directive | Compliant |
Ambient Air Temperature For Operation | -10-55 °C |
Ip Degree Of Protection |
|
