I/O (input/output) application module, Enerlin'X

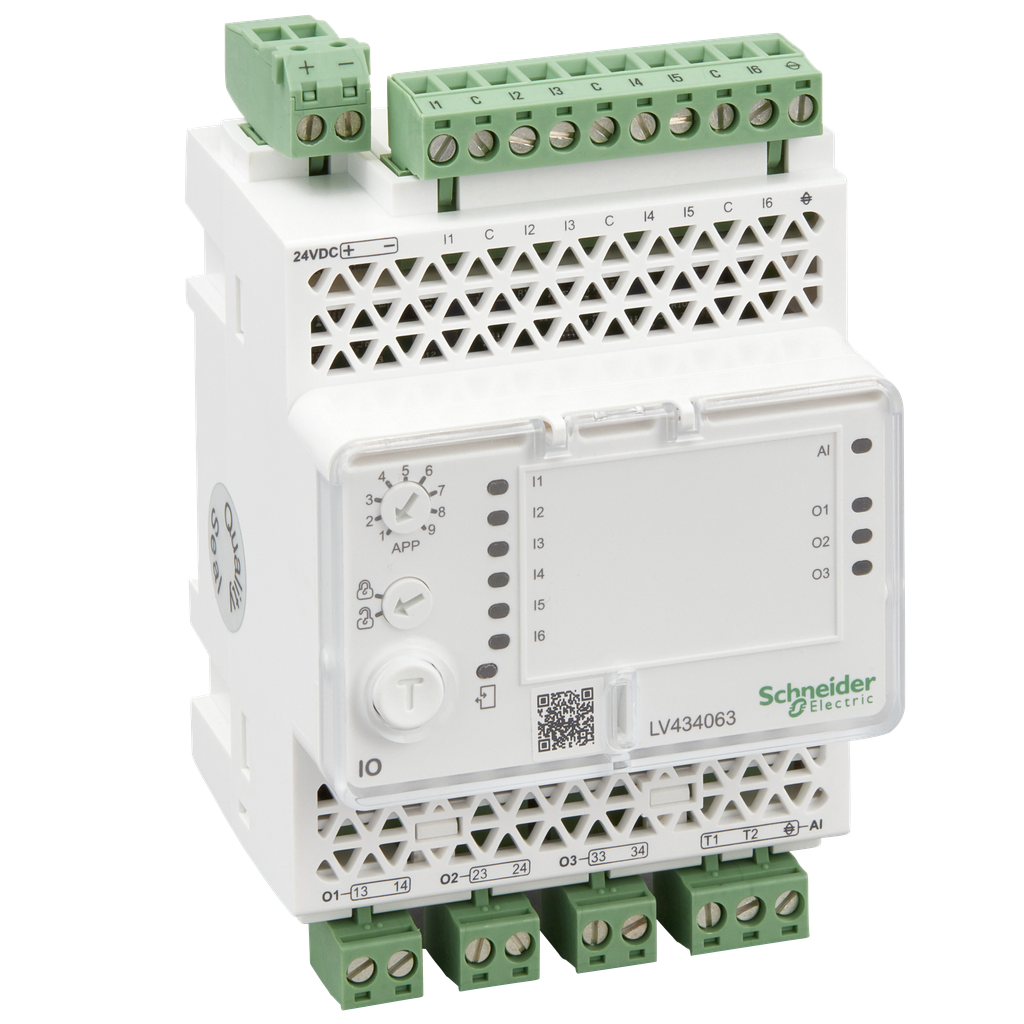

This I/O module is an Input/Output application module and it is part of EnerlinX communication system. This I/O module is compatible with Masterpact, Compact and PowerPact devices. It is used for protection, circuit breaker control, motor control, energy management and monitoring applications. It provides six digital inputs, three digital outputs and one analog input. It is equipped on the top with one 24VDC screw clamp terminal block and one terminal block for the 6 digital inputs. There are two RJ45 sockets on the bottom for ULP, and 4 terminal blocks for the digital outputs and analog input. The I/O module is a DIN rail mounting device and its dimensions are 72mm x 116mm x 71mm. The protection degree is IP4x on the front face and IP2x on the connectors. The I/O module is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The I/O module can be configured and updated (firmware) using EcoStruxure Power Commission software.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Compatibility |
|
|---|---|
| Product Or Component Type | I/O module |
| Product Name | Enerlin'X IO |
| Device Short Name | I/O |
| Warranty | 18 months |
| Product Certifications |
|
| Input Type |
|
| [Us] Rated Supply Voltage | 24 V DC - 20...10 % |
| Connections - Terminals | screw terminal block |
| Height | 116 mm |
| Standards |
|
| Number Of Outputs | 3 digital |
| Mounting Support | 35 mm DIN rail |
| Cable Length | 10 m |
| Electromagnetic Compatibility |
|
| Vibration Frequency | 5-8.4 Hz |
| Time Delay | 0...20 s |
| Number Of Inputs |
|
| Net Weight | 229.5 g |
| Output Type | digital 250 V - AC - 5 A |
| Communication Network Type | Universal Logic Plug 2 RJ45 connectors |
| Current Consumption | 165 mA |
| Control Type | by software |
| Mounting Mode | by clips |
| Width | 71.7 mm |
| Depth | 70.6 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1510008EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1510008_V1 |
| Eu Rohs Directive | Compliant |
| Shock Resistance | 1000 m/s² |
| Ambient Air Temperature For Operation | -20-70 °C |
| Pollution Degree | 3 |
| Flame Retardance | V0 conforming to UL |
| Ambient Air Temperature For Storage | -40-85 °C |
| Relative Humidity | 5-85 % |
| Ip Degree Of Protection |
|
