IFE Ethernet switchboard server, Enerlin'X

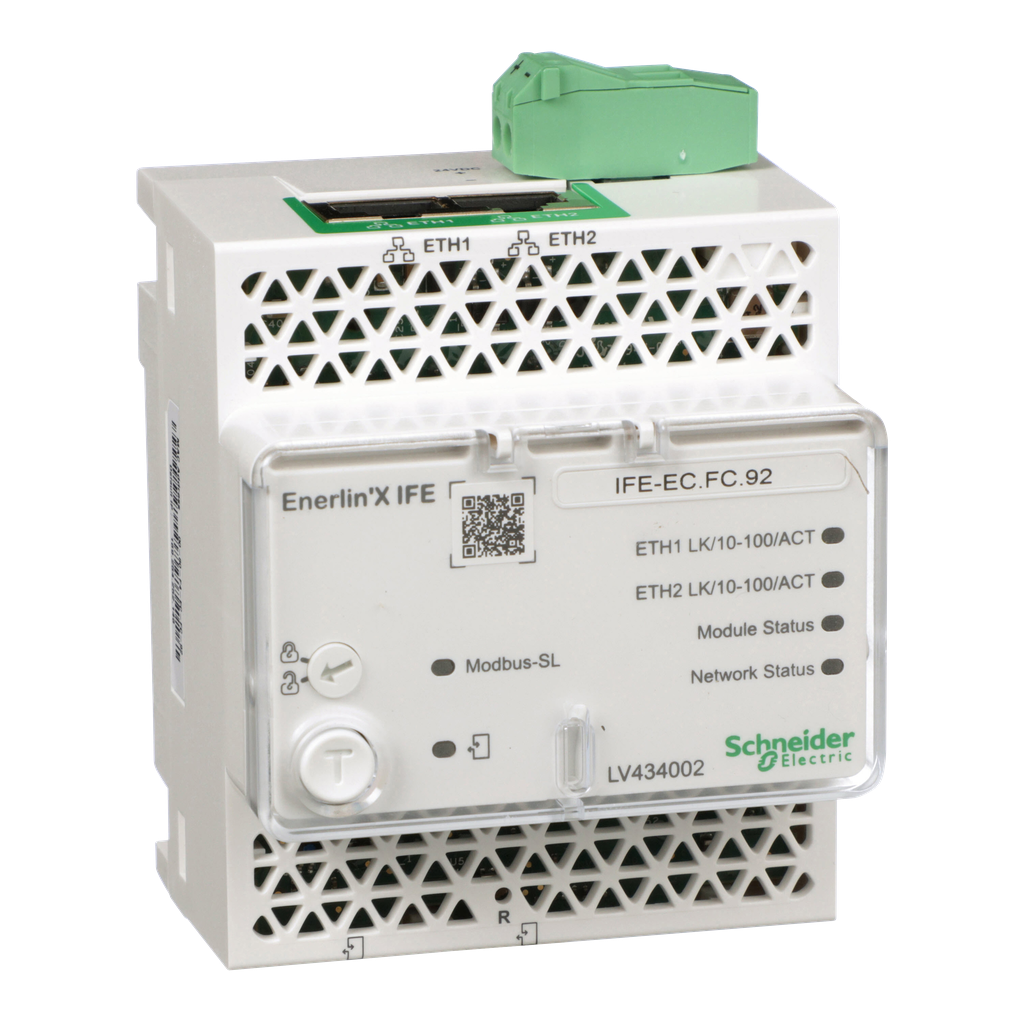

This IFE switchboard server is an Ethernet interface module, and it is part of EnerlinX communication system. It provides an Ethernet access to one or several Masterpact, Compact or PowerPact circuit breakers. It incorporates a Modbus gateway. The data flow is 10/100 Mbps for a simple daisy chain connection. It is equipped on the top with one 24VDC screw clamp terminal block and 2xRJ45 sockets for Ethernet network connection. It is equipped on the bottom with two RJ45 sockets for ULP internal network connection (Universal Logic Plug). The IFE switchboard server is a DIN rail mounting device and its dimensions are 72mm x 105mm x 71mm. The protection degree is IP4x on the front face and IP2x on the connectors. The IFE switchboard server is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The IFE switchboard server firmware can be updated using EcoStruxure Power Commission software.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Compatibility |
|
|---|---|
| Product Or Component Type | interface module |
| Device Short Name | IFE |
| Warranty | 18 months |
| Product Certifications |
|
| [Us] Rated Supply Voltage | 24 V DC - 20...10 % |
| Connections - Terminals | RJ45 connector |
| Height | 105 mm |
| Standards |
|
| Mounting Support | 35 mm DIN rail |
| Net Weight | 182.5 g |
| Communication Network Type |
|
| Control Type | by software |
| Current Consumption | 120 mA |
| Accessory / Separate Part Category |
|
| Mounting Mode | by clips |
| Maximum Supply Current | 3 A |
| Communication Gateway | Ethernet TCP/IP to Modbus |
| Width | 72 mm |
| Depth | 71 mm |
| Web Server | embedded HTTP server |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1703001EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1703001EN |
| Eu Rohs Directive | Compliant |
| Halogen Content Performance | Halogen free plastic parts product |
| Ambient Air Temperature For Operation | -20-70 °C |
| Pollution Degree | 3 |
| Shock Resistance | 1000 m/s² |
| Flame Retardance |
|
| Ambient Air Temperature For Storage | -40-85 °C |
| Relative Humidity | 5-85 % |
| Ip Degree Of Protection |
|
| Vibration Frequency | 5-8.4 Hz |
