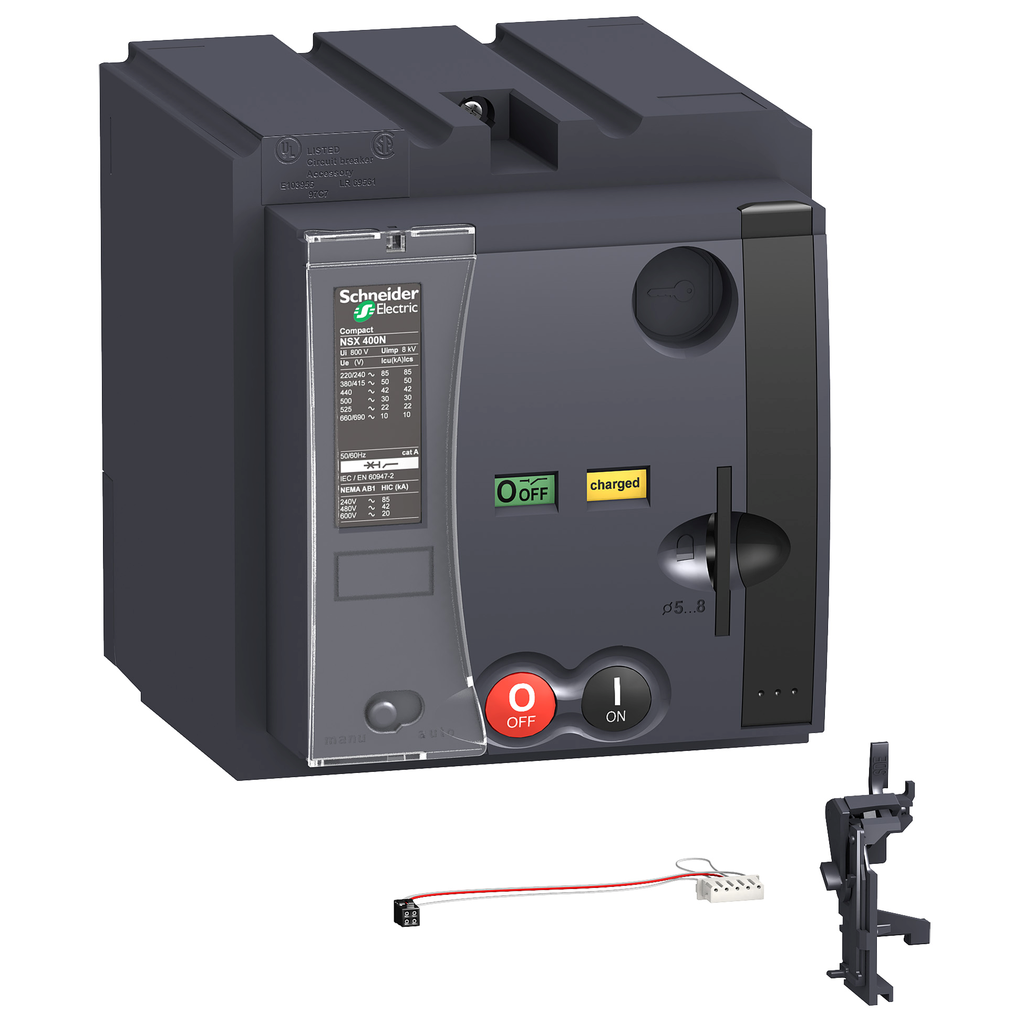

This is a communicating motor mechanism for Compact NSX 400/630 and PowerPact Multistandard L frame devices that allows automatic device spring-charging. It helps the circuit breaker to feature a high mechanical endurance as well as easy and sure opening or closing operations. This communicating motor mechanism can receive external opening and closing orders. It provides a double insulation of the front face and all indications remain visible and accessible. The control voltage of this communicating motor mechanism module is 220VAC to 240VAC 50/60Hz. The consumption is less than 500VA. Padlocking of the device remains possible.
Brand: Schneider Electric
Add to Quote Catalogue[Uc] Control Circuit Voltage | 220...240 V AC 50/60 Hz |
---|---|
Range Compatibility |
|
Product Or Component Type | motor mechanism |
Control Type | communicating |
Mounting Mode | fixed |
Line Rated Current |
|
Device Application | automatic spring charging |
Device Short Name | MT400/630 |
Warranty | 18 months |
Locking Options Description |
|
Response Time |
|
Control Signal Type |
|
Maximum Operating Frequency | 4 per minute |
Maximum Power Consumption In Va |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP111247EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Circularity Profile | ENVEOLI111002EN |
Eu Rohs Directive | Compliant |
