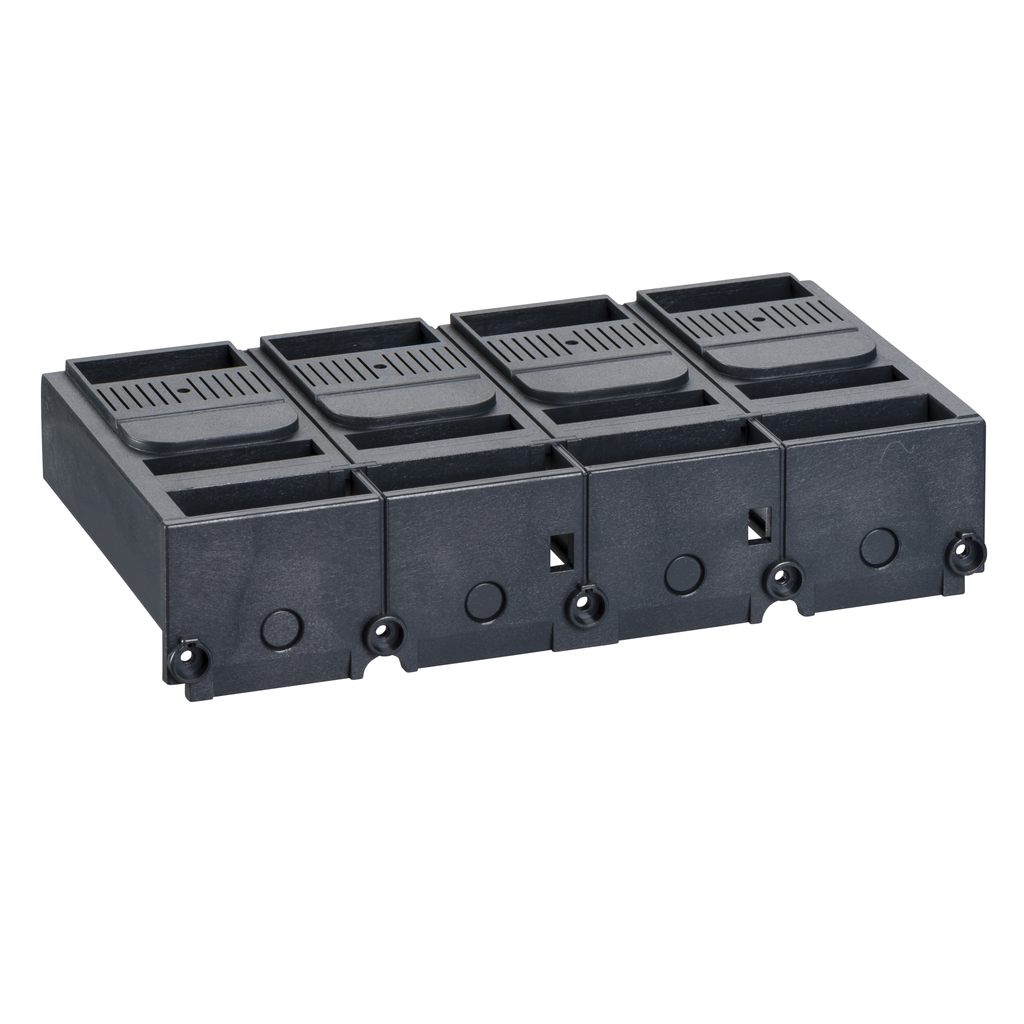

This is an insulation accessory for 4 poles Compact NSX 400/630 or EasyPact CVS 400/630. This short terminal shield protects against direct contact with power circuit. It can be mounted upstream and downstream of fixed, plug-in or withdrawable devices. It allows to reach the clearance distance requested by IEC 60947-2 standard. The pitch is 45mm. It provides IP40 degree of protection and IK07 mechanical impact protection.
Brand: Schneider Electric
Add to Quote CatalogueRange Compatibility |
|
---|---|
Product Or Component Type | short terminal shield |
Poles Description | 4P |
Quantity Per Set | 1 |
Accessory / Separate Part Type | insulation accessories |
Warranty | 18 months |
Connection Pitch | 45 mm |
Ip Degree Of Protection | IP40 conforming to IEC 60529 |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP111251EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
Reach Free Of Svhc | Yes |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
