LV432520

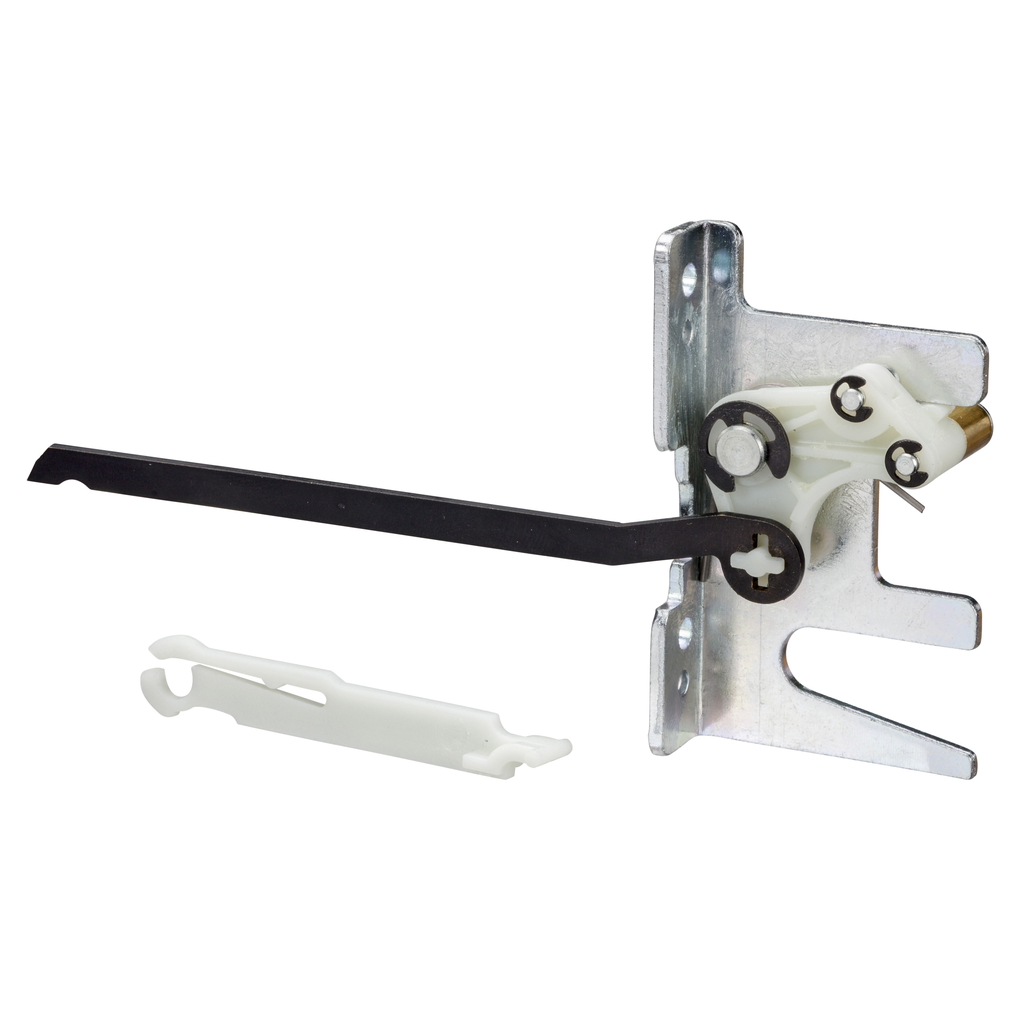

safety trip interlock, ComPact NSX400/630 plug-in kit
This is a safety trip interlock device for 3 or 4 poles Compact NSX 400/630. It is part of the plug-in kit for Compact NSX circuit breakers. This accessory avoids connecting or disconnecting the power circuits under load conditions. It causes automatic tripping if the device is ON, before engaging or withdrawing it. It must be installed on the device.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Compatibility |
|
|---|---|
| Poles Description |
|
| Accessory / Separate Part Category | interlocking accessory |
| Product Or Component Type | safety trip interlock |
| Warranty | 18 months |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI120604EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP120606EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
Documents
- Spec Sheet
- Catalogue Compact NSX & NSXm circuit breakers and switch disconnectors from 16 to 630A up to 690V - LVPED217032EN (pdf)
- ComPacT NSX & NSXm Circuit Breakers and Switch Disconnectors from 16 to 630A up to 690V - 2022 - LVPED221001EN (pdf)
- COMPACT NSX COMPACT INS INV and MASTERPACT NW DC DC PV catalog - LVPED208006EN (pdf)
- Communication option for Masterpact NT/NW, Compact NS and PowerPact P- and R-frame - EAV3608000-03 (pdf)
- ComPact NSX/NSJ, FPower NSX/GV7 - Safety trip interlock - Instruction Sheet - GHD1630501-05 (pdf)
- ComPact NSX/NSJ, FPower NSX, GV7 and EasyPact CVS - Fixed locking device for toggle - Instruction Sheet - GHD16299AA (pdf)
- Compact NSX400-630, FPower NSX/GV7, Easypact CVS400-630 - Vigi/Insulation monitoring module - Instruction Sheet - GHD16315AA (pdf)
- ComPact NSX400-630 - Chassis side plate - Instruction Sheet - GHD1631701-05 (pdf)
- ComPact NSX400-630 - Plug-in base - Instruction sheet - GHD1631603-00 (pdf)
- ComPact NSX/NSJ, FPower NSX/GV7 - Motor mechanism keylock - Instruction Sheet - GHD1632601 (pdf)
