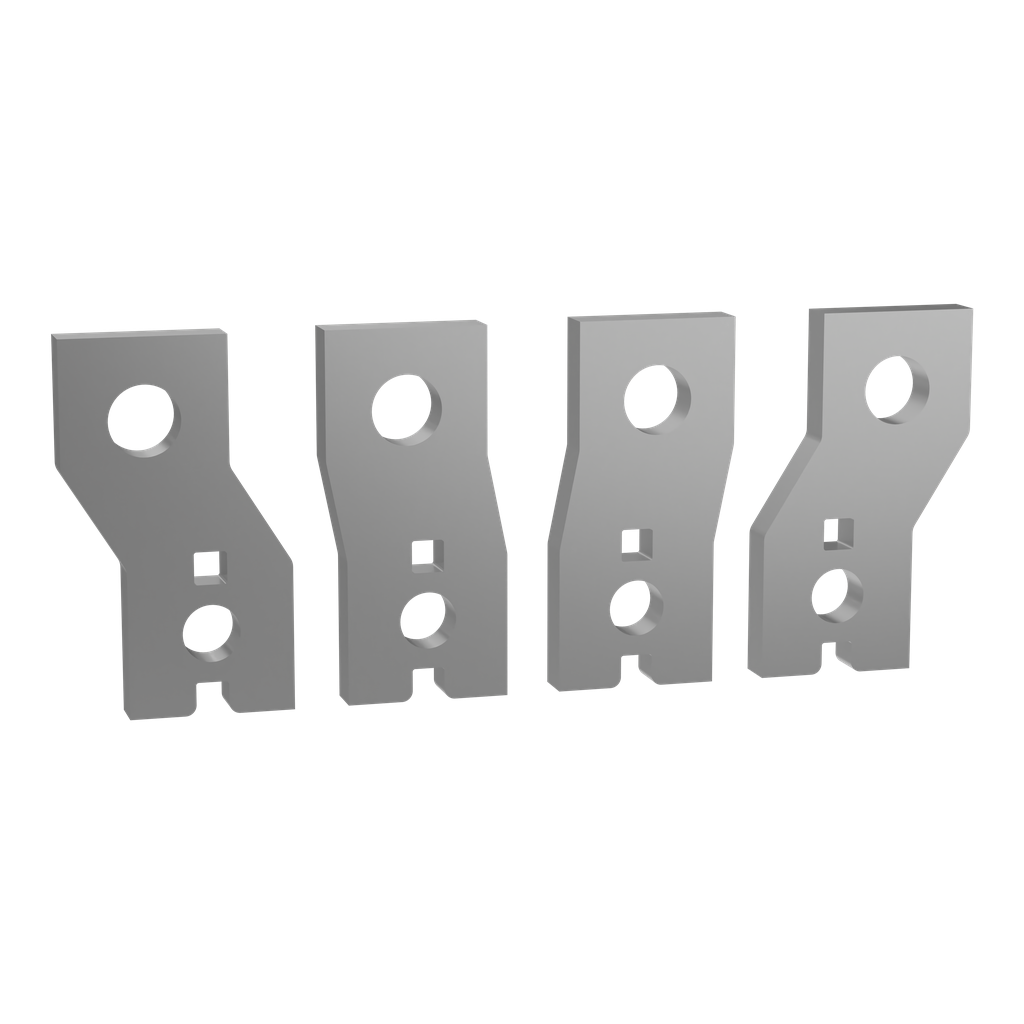

LV432491 - Terminal extensions, ComPacT NSX 400/630, spreaders 45mm to 52.5mm pitch, set of 4 parts

LV432491

Terminal extensions, ComPacT NSX 400/630, spreaders 45mm to 52.5mm pitch, set of 4 parts

These accessories are spreaders for 3 poles Compact NSX 400/630 and EasyPact CVS 400/630. They are screwed to the circuit-breaker terminals to increase the pitch between poles from 45mm to 52.5mm. The rated current is up to 630 A. These spreaders are supplied with flexible interphase barriers for insulation reinforcement. They are sold by set of 4 parts.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Range Compatibility	ComPacT new generation (ComPacT NSX400 new generation) ComPacT new generation (ComPacT NSX630 new generation) ComPacT new generation (ComPacT NSX DC new generation) ComPact (ComPact NSX400) ComPact (ComPact NSX630) ComPact Compact NSX400 DC ComPact Compact NSX630 DC EasyPact (EasyPact CVS400) EasyPact (EasyPact CVS630) ComPact (ComPacT INS) ComPact (Compact INV)
Poles Description	4P
Accessory / Separate Part Category	connection accessory
Quantity Per Set	4
Product Or Component Type	spreader
Mounting Position	straight
Warranty	18 months
Line Rated Current	630-630 A
Connection Pitch	52.5 mm
China Rohs Regulation	X
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP111251EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
Reach Regulation	Free of Substances of Very High Concern above the threshold
California Proposition 65	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Terminal extensions, ComPacT NSX 400/630, spreaders 45mm to 52.5mm pitch, set of 4 parts
