LV431563

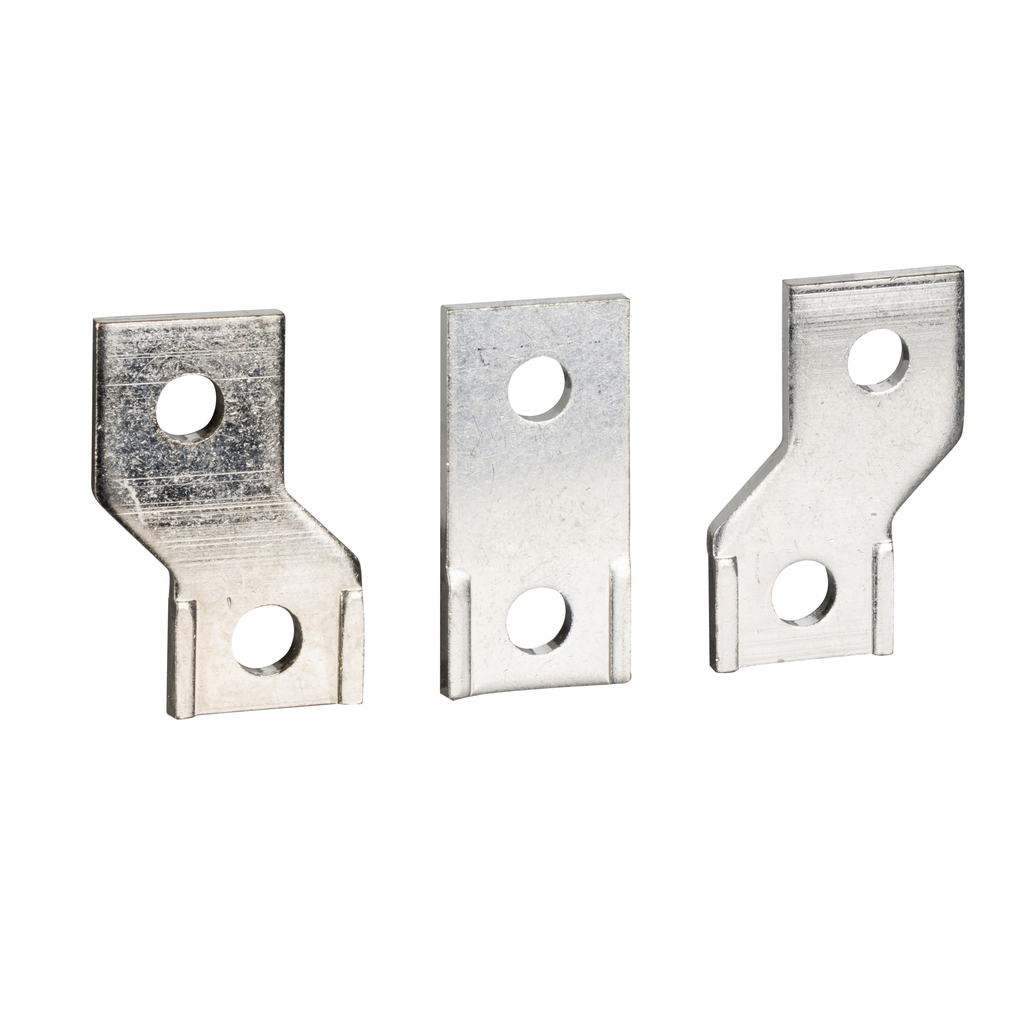

Terminal extensions, ComPacT NSX 100/160/250, spreaders 35mm to 45mm pitch, set of 3 parts
These accessories are spreaders for 3 poles Compact NSX 100/160/250 and EasyPact CVS 100/160/250. They are screwed to the circuit-breaker terminals to increase the pitch between poles from 35mm to 45mm. The rated current is up to 250 A. These spreaders are supplied with flexible interphase barriers for insulation reinforcement. They are sold by set of 3 parts.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Compatibility |
|
|---|---|
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | spreader |
| Poles Description | 3P |
| Quantity Per Set | 3 |
| Mounting Position | straight |
| Warranty | 18 months |
| Connection Pitch | 45 mm |
| Line Rated Current | 250-250 A |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111251EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant |
Documents
- Spec Sheet
- Catalogue Compact NSX & NSXm circuit breakers and switch disconnectors from 16 to 630A up to 690V - LVPED217032EN (pdf)
- ComPacT NSX & NSXm Circuit Breakers and Switch Disconnectors from 16 to 630A up to 690V - 2022 - LVPED221001EN (pdf)
- COMPACT NSX COMPACT INS INV and MASTERPACT NW DC DC PV catalog - LVPED208006EN (pdf)
- ComPact NSX100-250A / FPower NSX / GV7 - Circuit breaker/Switch-disconnector - Instruction Sheet - GHD1624201-09 (pdf)
