LV429532

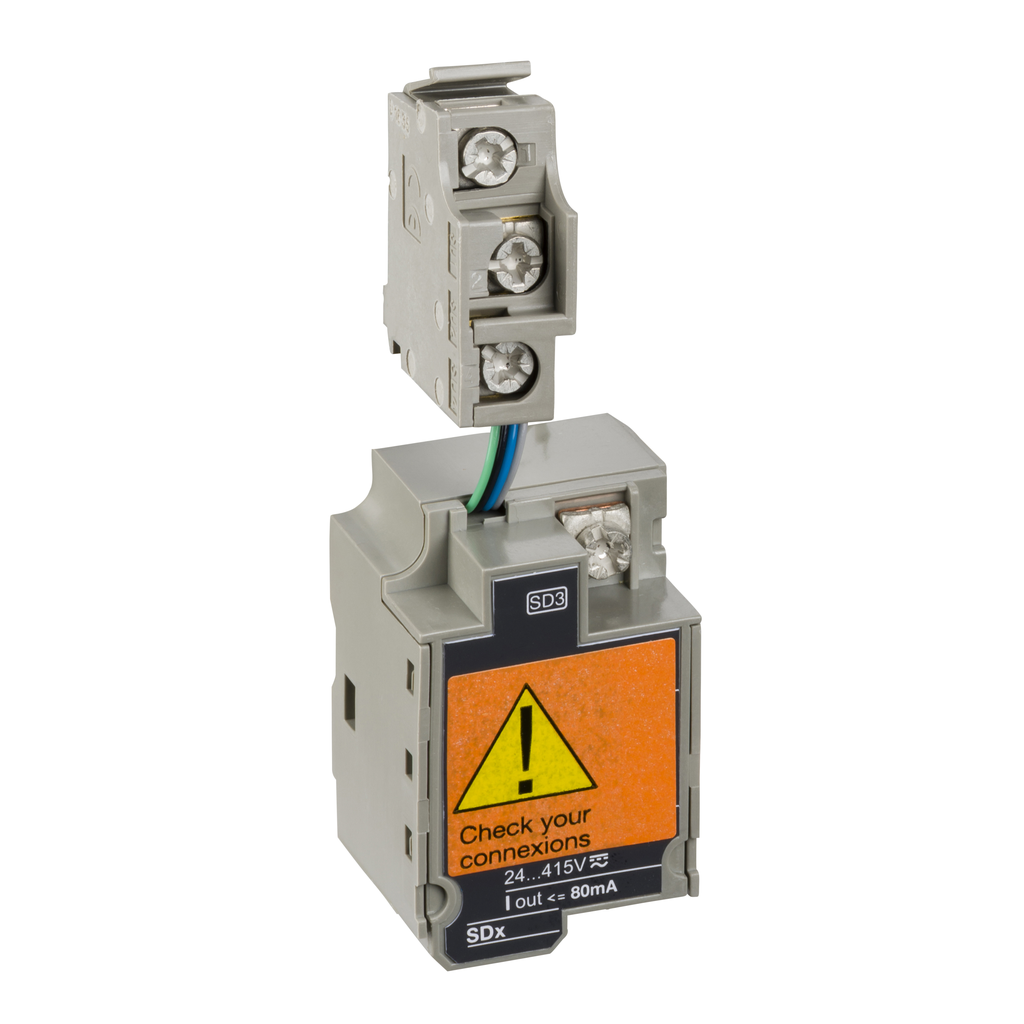

SDx module, ComPacT NSX, circuit breakers with MicroLogic trip units, 2 static outputs
LV429532 is a trip unit accessory for SDX output module , NSX100-250 / NSX400-630. This trip unit is for Micrologic 2.0,Micrologic 5.0,Micrologic 6.0 with a supply voltage 24-415V DC. It uses the sensors and processing capacity of the Micrologic trip unit. It is easy to use and requires no special software or settings. It is immediately operational when connected to the circuit breaker by a ULP cord. It also provides monitoring and control with the use of the I/O application module, the motor mechanism module, or the circuit breaker communication module.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Trip Unit Name |
|
|---|---|
| Range Of Product |
|
| Range Compatibility | ComPact (ComPact NSX) circuit breaker |
| Accessory / Separate Part Category | relay accessory |
| Product Or Component Type | SDX output module |
| Range | ComPact |
| Device Application | control |
| Device Short Name | SDX output modules |
| Warranty | 18 months |
| Maximum [In] Rated Current | 0.08 A |
| [Us] Rated Supply Voltage |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant |
Documents
- Spec Sheet
- ComPacT NSX & NSXm Circuit Breakers and Switch Disconnectors from 16 to 630A up to 690V - 2022 - LVPED221001EN (pdf)
- Catalogue Compact NSX & NSXm circuit breakers and switch disconnectors from 16 to 630A up to 690V - LVPED217032EN (pdf)
- VIGIREX Catalog - LVPED208009EN (pdf)
- SDx Output Module - Instruction Sheet - GHD16241AA-05 (pdf)
