LV429525

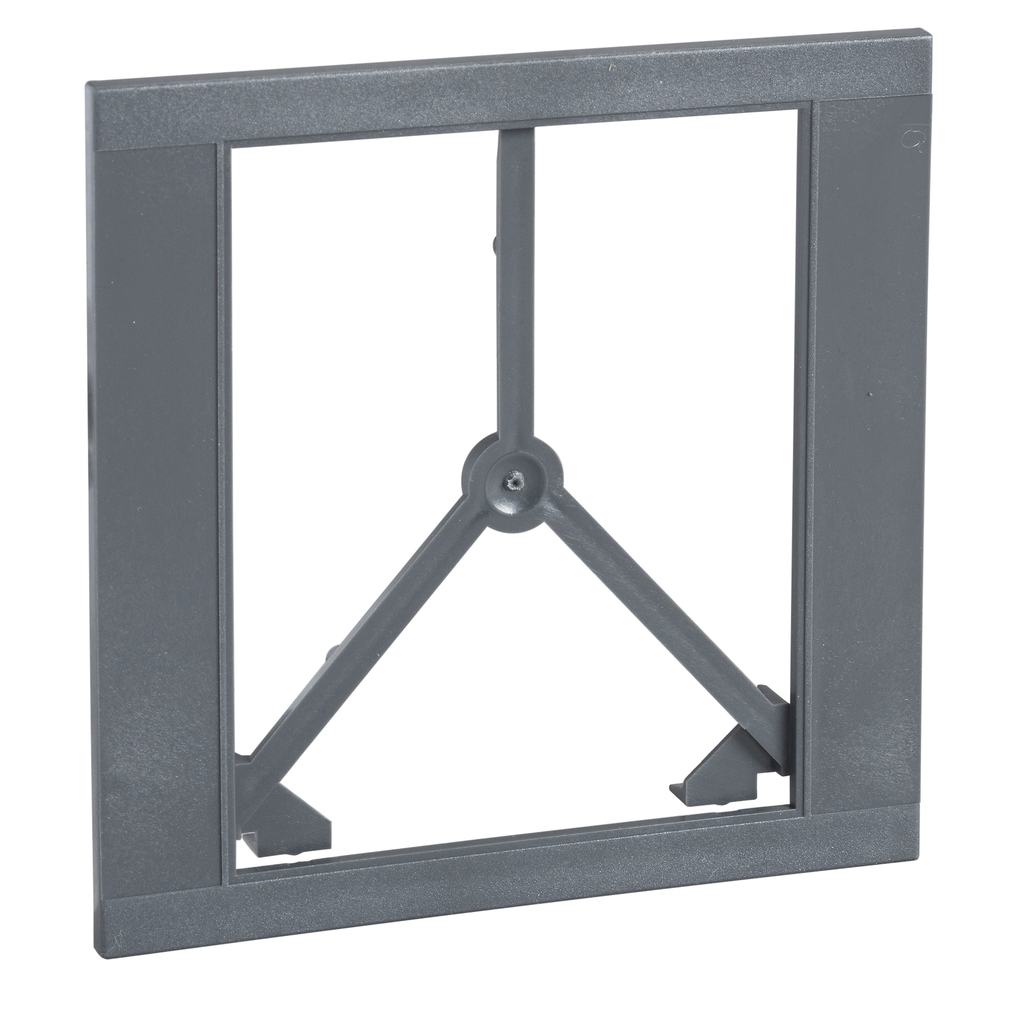

escutcheon for all control types, fixed ComPact NSX100/160/250, IP30
This is a front panel escutcheon for Compact NSX 100/160/250. Escutcheons are mounted on the switchboard door. They increase the degree of protection to IP40, IK07.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Compatibility |
|
|---|---|
| Accessory / Separate Part Category | insulation accessory |
| Product Or Component Type | escutcheon |
| Control Type |
|
| Warranty | 18 months |
| Mounting Mode | fixed |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP050905EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Ip Degree Of Protection | IP30 conforming to IEC 60529 |
Documents
- Spec Sheet
- COMPACT NSX COMPACT INS INV and MASTERPACT NW DC DC PV catalog - LVPED208006EN (pdf)
- ComPacT NSX & NSXm Circuit Breakers and Switch Disconnectors from 16 to 630A up to 690V - 2022 - LVPED221001EN (pdf)
- Catalogue Compact NSX & NSXm circuit breakers and switch disconnectors from 16 to 630A up to 690V - LVPED217032EN (pdf)
- IP30 escutcheon, FPower NSX and GV7 - Instruction sheet - GHD1628401-03 (pdf)
