LV429515

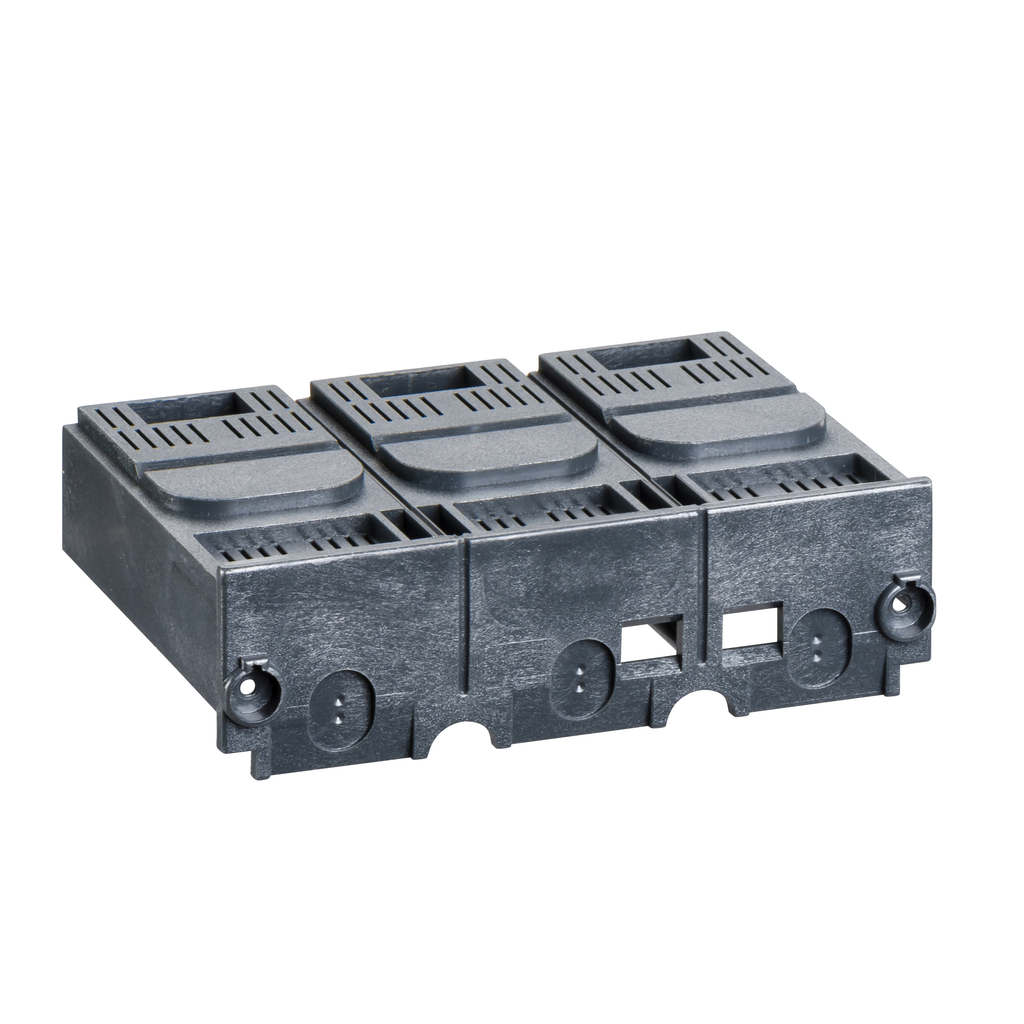

Short terminal shield, ComPacT NSX100/160/250, pitch 35mm, IP40, 3 poles
This is an insulation accessory for 3 poles Compact NSX 100/160/250 or EasyPact CVS 100/160/250. This short terminal shield protects against direct contact with power circuit It can be mounted upstream and downstream of fixed, plug-in or withdrawable devices. It allows to reach the clearance distance requested by IEC 60947-2 standard. The pitch is 35mm. It provides IP40 degree of protection and IK07 mechanical impact protection.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Compatibility |
|
|---|---|
| Product Or Component Type | short terminal shield |
| Poles Description | 3P |
| Quantity Per Set | 1 |
| Accessory / Separate Part Type | insulation accessories |
| Warranty | 18 months |
| Connection Pitch | 35 mm |
| Ip Degree Of Protection | IP40 conforming to IEC 60529 |
| Product Compatibility |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111251EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
