LV429492

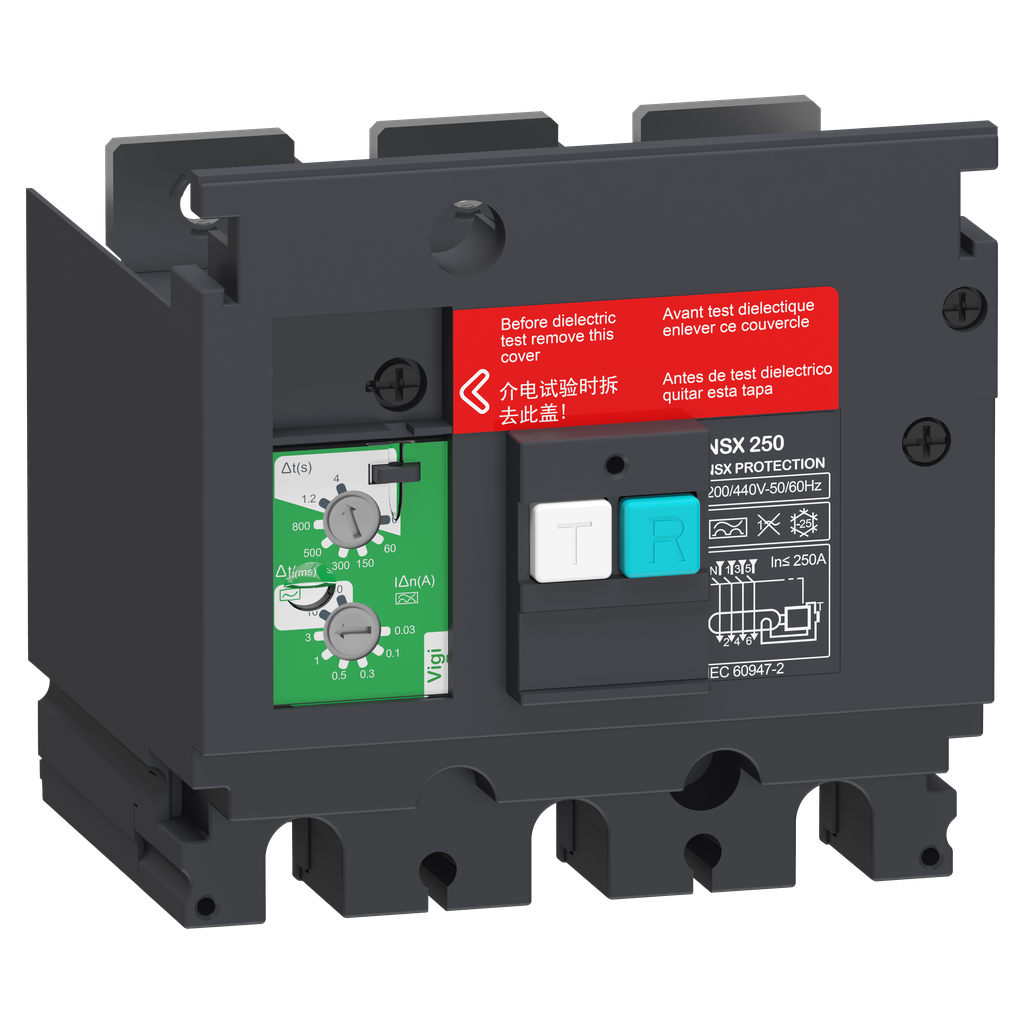

Earth-leakage add-on protection module VigiPacT, ComPacT NSX 250, 200VAC to 440VAC, 30mA to 30A, 3 poles
This is a Vigi add-on module for ComPact NSX 250 that provides an earth-leakage protection. It is used for 3 poles circuit breakers. The operational rated voltage is between 200 and 440 VAC 50/60 Hz. The earth-leakage sensitivity is adjustable from 30 mA to 30 A. It is installed directly on the device terminals and directly actuates the trip unit in case of earth-leakage default. This Vigi add-on module is self-powered internally by the distribution-system voltage, even is supplied by only 2 phases. It is compliant with IEC 60947-2 standard, annex B.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Line Rated Current | 250 A |
|---|---|
| Range Of Product |
|
| Range Compatibility |
|
| Earth-Leakage Protection Class |
|
| Earth-Leakage Sensitivity |
|
| Product Or Component Type | Vigi add-on |
| [Δt] Residual Earth-Leakage Time Delay Adjustment |
|
| Residual Earth-Leakage Sensitity Adjustment Type | adjustable |
| Poles Description | 3P |
| Device Application | wiring |
| Residual Earth-Leakage Time Delay Adjustment Type | adjustable |
| Device Short Name | VigiPacT |
| Network Frequency | 50/60 Hz |
| [Ue] Rated Operational Voltage | 200...440 V AC 50/60 Hz IEC 60947-2 |
| Earth-Leakage Protection | with |
| Network Type | AC |
| Maximum Breaking Time | 800 ms |
| Overvoltage Category | IV |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2102011_V1 |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI2102011_V1 |
| Eu Rohs Directive | Compliant |
| Standards | IEC 60947-2 |
| Electrical Shock Protection Class | class II |
