LV429451

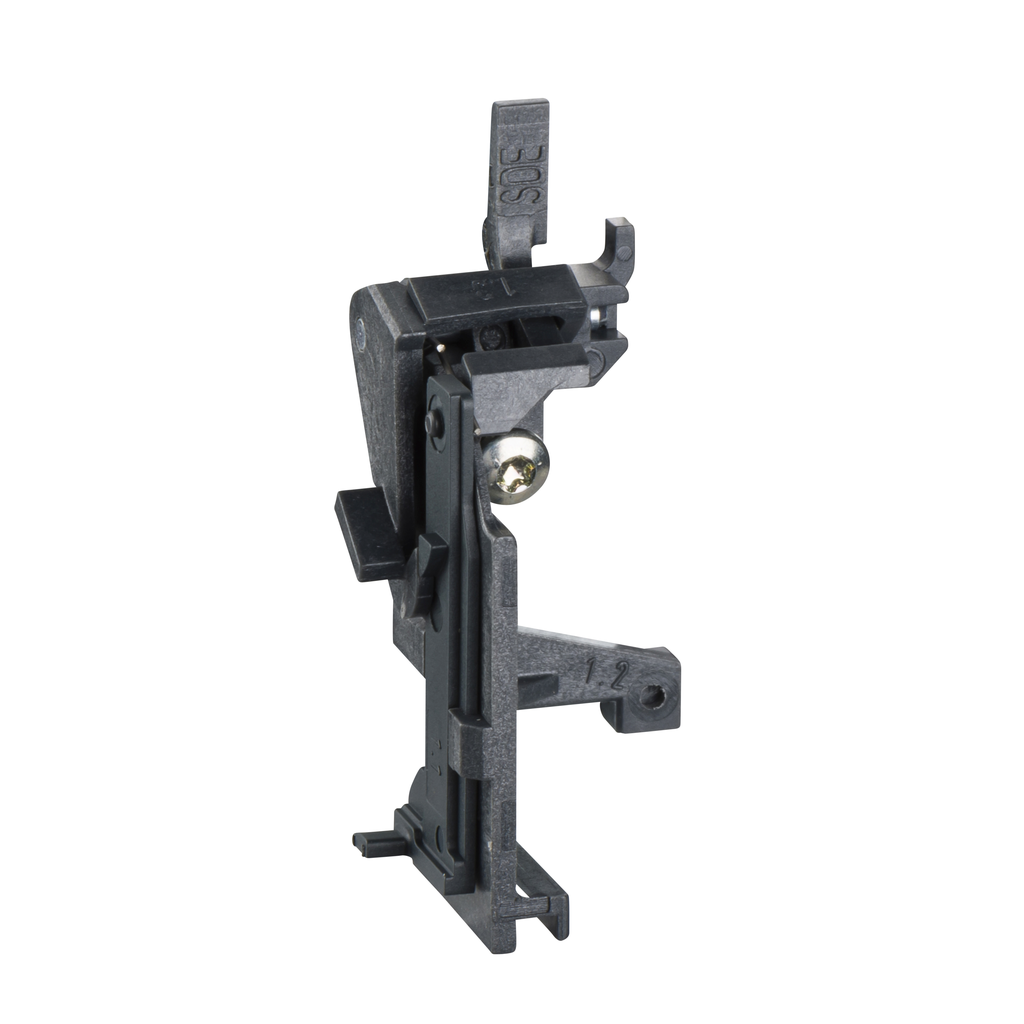

SDE adapter, ComPact NSX100/160/250
This is an adapter part used with auxiliary contact SDE on Compact NSX 100/160/250 devices. This part is mandatory for control units TM, MA or Micrologic 2 if SDE contact is used. This part is not necessary for the other control units.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Trip Unit Name |
|
|---|---|
| Range Of Product |
|
| Range Compatibility |
|
| Accessory / Separate Part Category | relay accessory |
| Product Or Component Type | SDE adaptor |
| Device Application | control |
| Device Short Name | SDE adaptor |
| Range |
|
| Warranty | 18 months |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI120604EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP120606EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Documents
- Spec Sheet
- ComPacT NSX & NSXm Circuit Breakers and Switch Disconnectors from 16 to 630A up to 690V - 2022 - LVPED221001EN (pdf)
- COMPACT NSX COMPACT INS INV and MASTERPACT NW DC DC PV catalog - LVPED208006EN (pdf)
- Catalogue Compact NSX & NSXm circuit breakers and switch disconnectors from 16 to 630A up to 690V - LVPED217032EN (pdf)
- RH197M - Protection and monitoring relay - Instruction sheet - S1A94065-05 (pdf)
- ComPact NSX100-250, PowerPact H-, J-Frame, TeSys GV5 - SDE adapter - Instruction Sheet - GHD1630301-05 (pdf)
