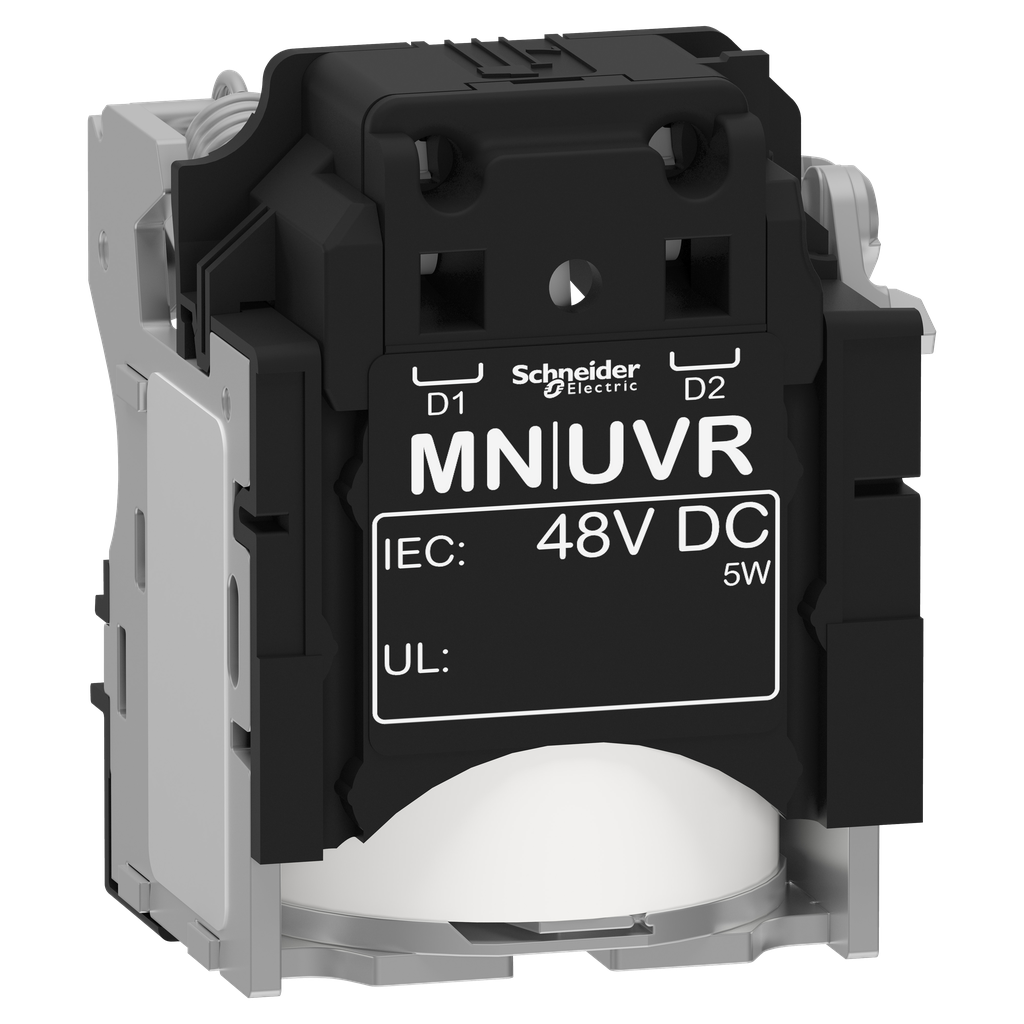

This is a MN undervoltage release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. Its rated voltage is 48 VDC. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage drops to a value below 35% of its rated voltage Un. It complies with IEC 60947-2 standard. This undervoltage release is a UL Listed/CSA Certified circuit breaker accessory. Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary.
Brand: Schneider Electric
Add to Quote Catalogue[Uc] Control Circuit Voltage | 48 V DC |
---|---|
Range Of Product |
|
Range Compatibility |
|
Product Or Component Type | voltage release |
Range | ComPacT |
Voltage Release Type |
|
Device Application | control |
Device Short Name | MN |
Warranty | 18 months |
Supply Holding Power | 5 W |
Auxiliary Connection Terminal | spring 0.5-1.5 mm² AWG 20...AWG 16) |
Supply Inrush Power | 10 W |
Wire Stripping Length | 7 mm |
Response Time | 50 ms |
Threshold Tripping Voltage |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP2304023EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Eu Rohs Directive | Compliant |
