LV429408

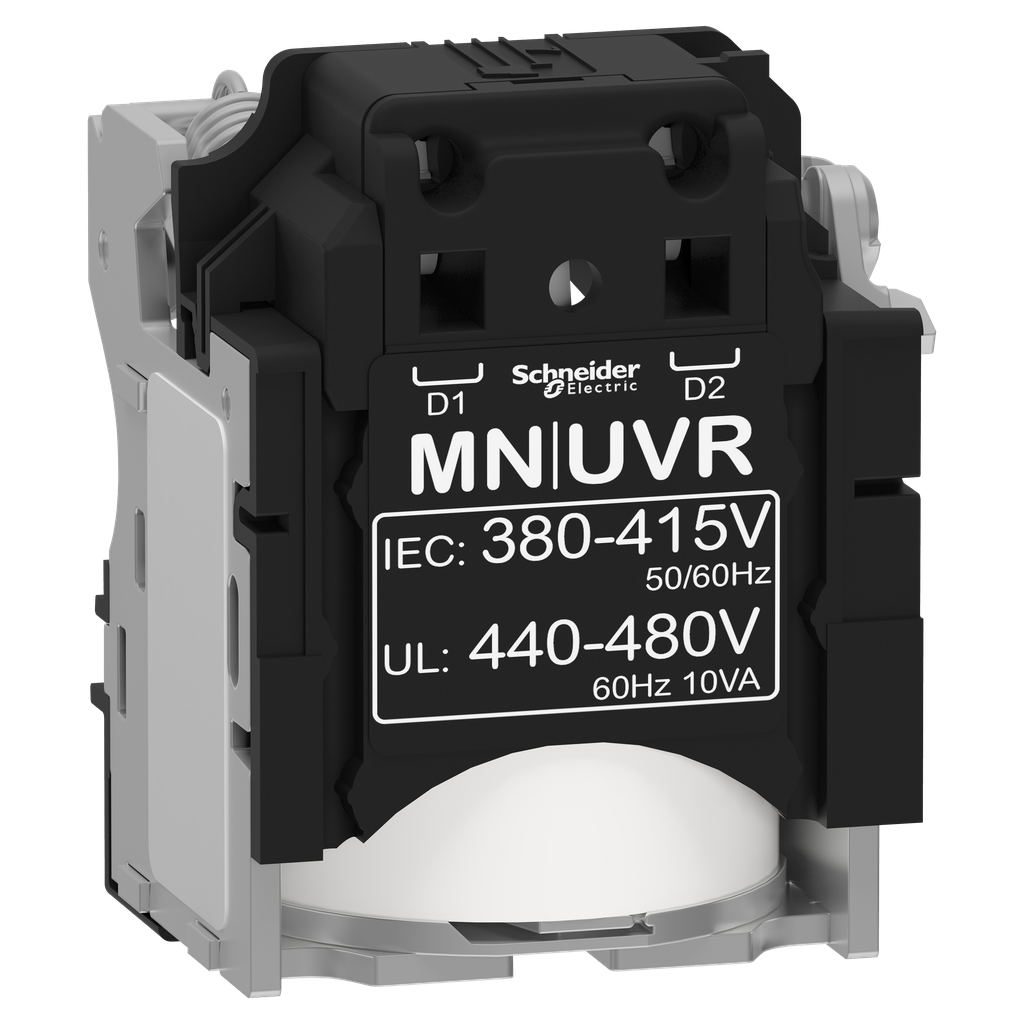

Undervoltage release MN, ComPacT NSX, 380/415VAC 50/60Hz, 440/480VAC 60Hz, screwless spring terminal connections
This is a MN undervoltage release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. Its rated voltage is 380 to 415 VAC 50/60 Hz, or 440 to 480 VAC 60 Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage drops to a value below 35% of its rated voltage Un. It complies with IEC 60947-2 standard. This undervoltage release is a UL Listed/CSA Certified circuit breaker accessory. Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| [Uc] Control Circuit Voltage |
|
|---|---|
| Range Of Product |
|
| Range Compatibility |
|
| Product Or Component Type | voltage release |
| Range | ComPacT |
| Voltage Release Type |
|
| Device Application | control |
| Device Short Name | MN |
| Warranty | 18 months |
| Supply Holding Power | 5 VA |
| Auxiliary Connection Terminal | spring 0.5-1.5 mm² AWG 20...AWG 16) |
| Supply Inrush Power | 10 VA |
| Wire Stripping Length | 7 mm |
| Response Time | 50 ms |
| Threshold Tripping Voltage |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2304023EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant |
Documents
- Spec Sheet
- Catalogue Compact NSX & NSXm circuit breakers and switch disconnectors from 16 to 630A up to 690V - LVPED217032EN (pdf)
- EasyPact EZC Catalog - LVED212091EN-EZC-catalog-2020 (pdf)
- VIGIREX Catalog - LVPED208009EN (pdf)
- COMPACT NSX COMPACT INS INV and MASTERPACT NW DC DC PV catalog - LVPED208006EN (pdf)
- ComPacT NSX & NSXm Circuit Breakers and Switch Disconnectors from 16 to 630A up to 690V - 2022 - LVPED221001EN (pdf)
- MN (UVR) / MX (SHT) Voltage Releases - Instruction Sheet - GHD16273AA-09 (pdf)
- MN (UVR) or MX (SHT) Voltage Releases - Instruction Sheet - NNZ4291701-01 (pdf)
