LV429329
Interphase barriers, ComPacT NSX 100/160/250, set of 6 parts

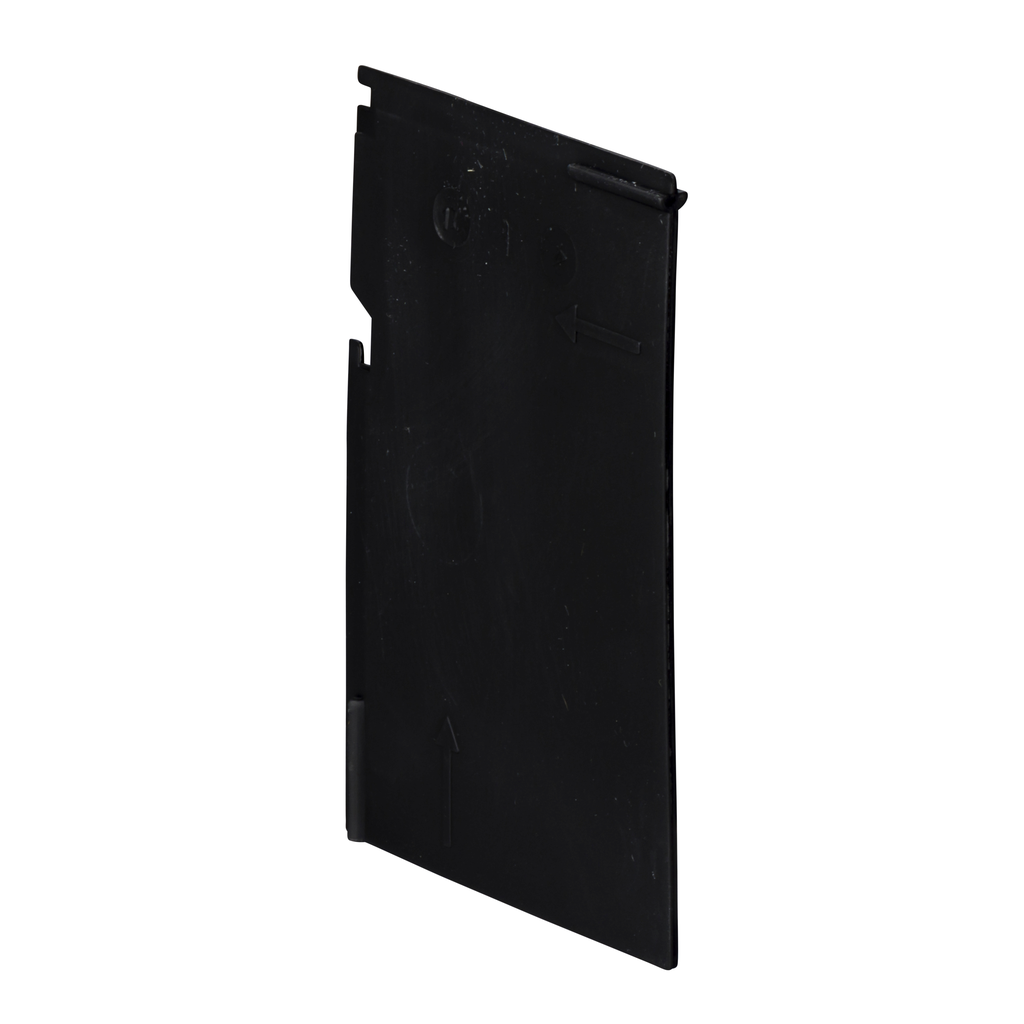

This is an insulation accessory for Compact NSX 100/160/250 or EasyPact CVS 100/160/250. These interphase barriers reinforce insulation level at the power connection points. They are mandatory for voltages above 500 VAC for both fixed devices and adapters on plug in base. Interphase barriers are clipped easily between front or rear connection terminals. They are not compatible with terminal shields. It is a set of 6 parts.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Compatibility |
|
|---|---|
| Quantity Per Set | set of 6 |
| Product Or Component Type | interphase barrier |
| Accessory / Separate Part Type | insulation accessories |
| Warranty | 18 months |
| Product Compatibility |
|
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | ENVEOLI120604EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP120606EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
Documents
- Spec Sheet
- Catalogue Compact NSX & NSXm circuit breakers and switch disconnectors from 16 to 630A up to 690V - LVPED217032EN (pdf)
- COMPACT NSX COMPACT INS INV and MASTERPACT NW DC DC PV catalog - LVPED208006EN (pdf)
- ComPacT NSX & NSXm Circuit Breakers and Switch Disconnectors from 16 to 630A up to 690V - 2022 - LVPED221001EN (pdf)
- ComPact NSX100-250A / FPower NSX / GV7 - Circuit breaker/Switch-disconnector - Instruction Sheet - GHD1624201-09 (pdf)
- ComPacT NSX100-250 - 3P/4P Circuit Breakers and Switch-disconnectors - Instruction Sheet - NNZ4765407-00 (pdf)
