LV429317

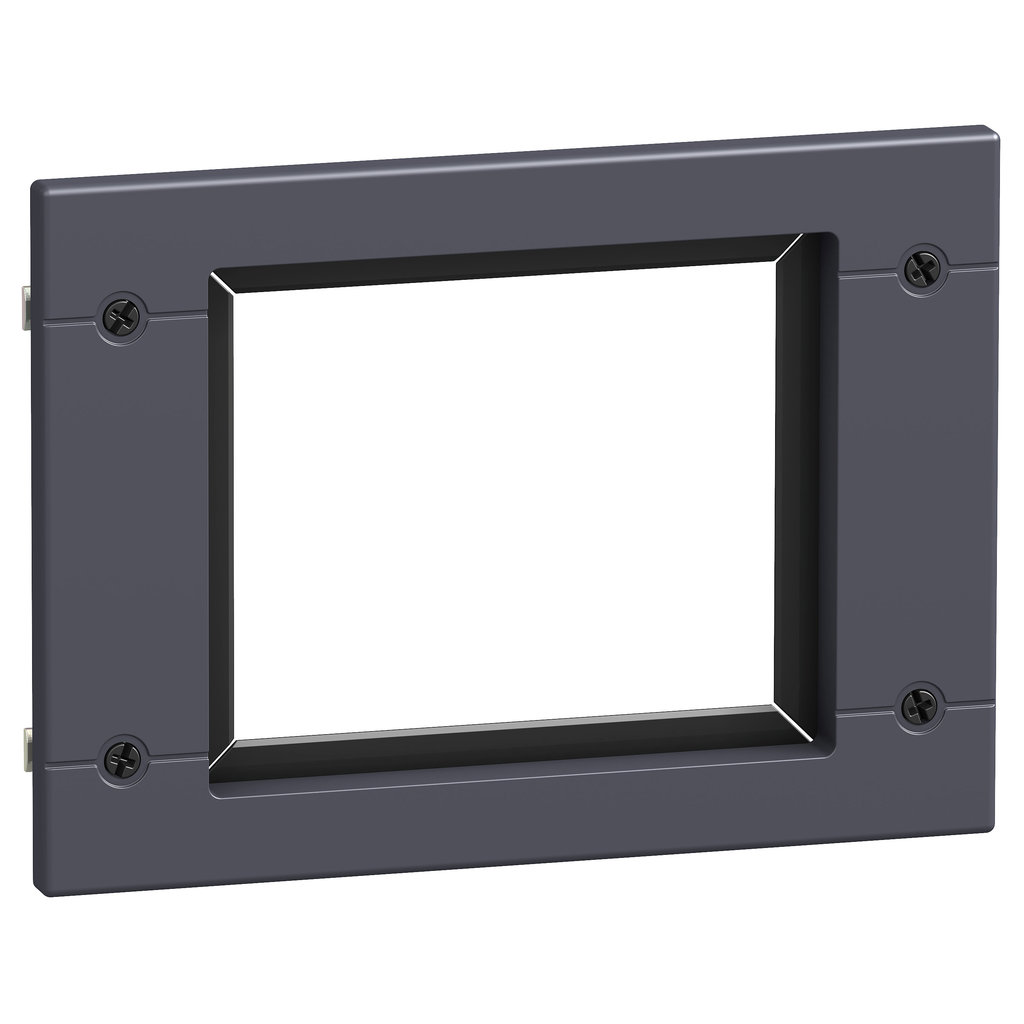

escutcheon for all control types, fixed ComPact NSX100/160/250, IP40
This is a front panel escutcheon for Compact NSX and EasyPact CVS. Escutcheons are mounted on the switchboard door. They increase the degree of protection to IP40, IK07.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Compatibility |
|
|---|---|
| Accessory / Separate Part Category | insulation accessory |
| Product Or Component Type | escutcheon |
| Control Type |
|
| Warranty | 18 months |
| Mounting Mode | fixed |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | ENVEOLI120604EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP120606EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Ip Degree Of Protection | IP40 conforming to IEC 60529 |
Documents
- Spec Sheet
- Escutcheon collar for toggle - GHD16279AA (pdf)
- Instruction sheet for the IP40 escutcheon all control types for Compact NSX 100-630, FPower NSX and GV7 - GHD1628501 (pdf)
- GV2AP.. Fixing kit for door interlock mechanism for GV2 P/L - 1389346_01A55 (pdf)
- Vigi / Insulation monitoring module for breaker NSX100-250 / CVS100-250- Instruction Sheet - GHD1626801-06 (pdf)
- ComPacT NSX & NSXm Circuit Breakers and Switch Disconnectors from 16 to 630A up to 690V - 2022 - LVPED221001EN (pdf)
- COMPACT NSX COMPACT INS INV and MASTERPACT NW DC DC PV catalog - LVPED208006EN (pdf)
- Catalogue Compact NSX & NSXm circuit breakers and switch disconnectors from 16 to 630A up to 690V - LVPED217032EN (pdf)
