LV429316

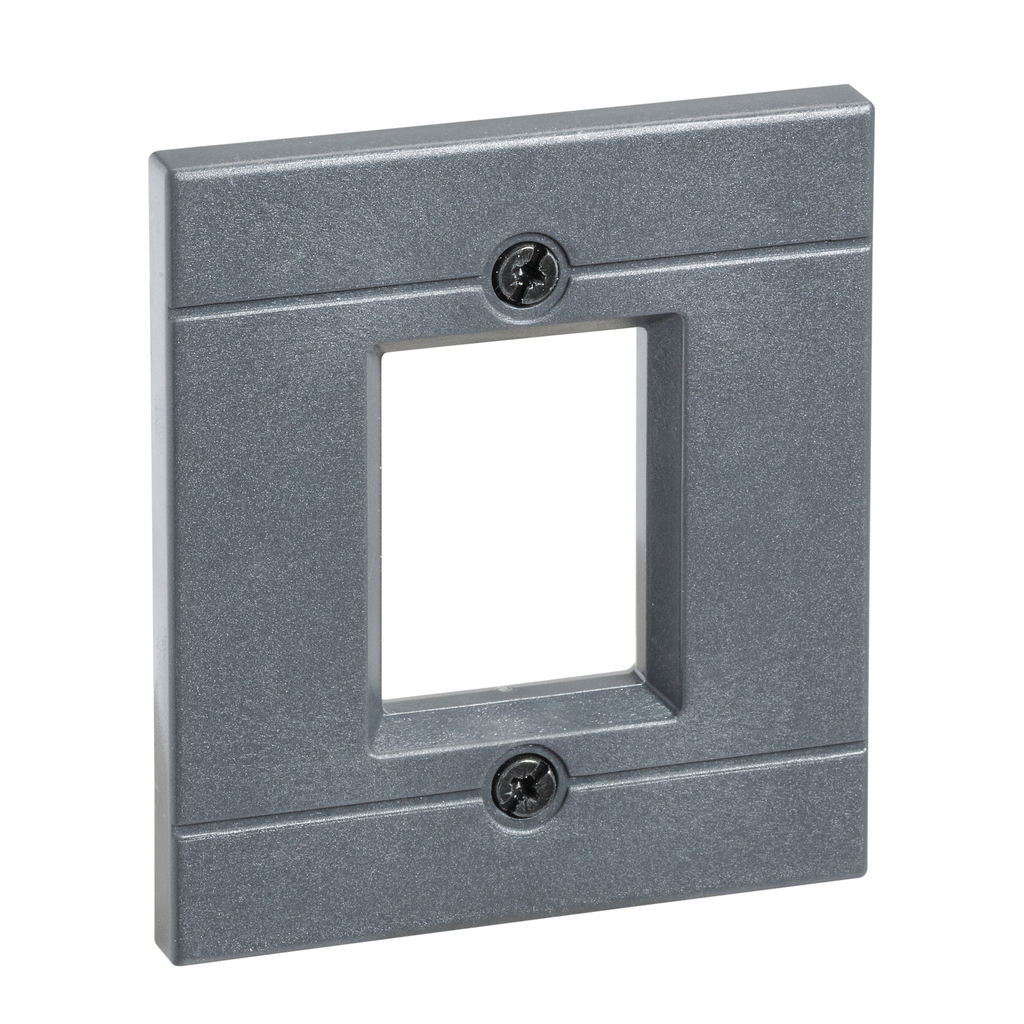

escutcheon for Vigi module, fixed ComPact NSX100 to NSX630, IP40
This is an escutcheon for Compact NSX and EasyPact CVS Vigi modules. Escutcheons are mounted on the switchboard door. This part can be combined with Compact NSX or EasyPact CVS toggle or rotary handle escutcheon. They increase the degree of protection to IP40, IK07.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Compatibility |
|
|---|---|
| Accessory / Separate Part Category | insulation accessory |
| Product Or Component Type | escutcheon |
| Warranty | 18 months |
| Mounting Mode | fixed |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | ENVEOLI120604EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP120606EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Ip Degree Of Protection | IP40 conforming to IEC 60529 |
Documents
- Spec Sheet
- Catalog PrismaSeT P - PrismaSeT_P_DESW024EN (pdf)
- ComPacT NSX & NSXm Circuit Breakers and Switch Disconnectors from 16 to 630A up to 690V - 2022 - LVPED221001EN (pdf)
- Catalogue Compact NSX & NSXm circuit breakers and switch disconnectors from 16 to 630A up to 690V - LVPED217032EN (pdf)
- Catalogue PrismaSeT G - PrismaSeT+G_DESW025EN (pdf)
- Catalogue PrismaSeT P Active - PrismaSeT_P_Active_DESW026EN (pdf)
- Catalogue Prisma P 2019 - DESW016EN_print (pdf)
- Instruction sheet for the IP40 escutcheon for Vigi module or ammeter for Compact NSX 100-630, FPower NSX and GV7 - GHD1628601 (pdf)
- Instruction sheet for IP40 escutcheon for Vigi module for Compact NSX 100-630, FPower NSX and GV7 - GHD1628701 (pdf)
