LV429306
connection adapter for plug in base, ComPact NSX100/160/250, 3 poles

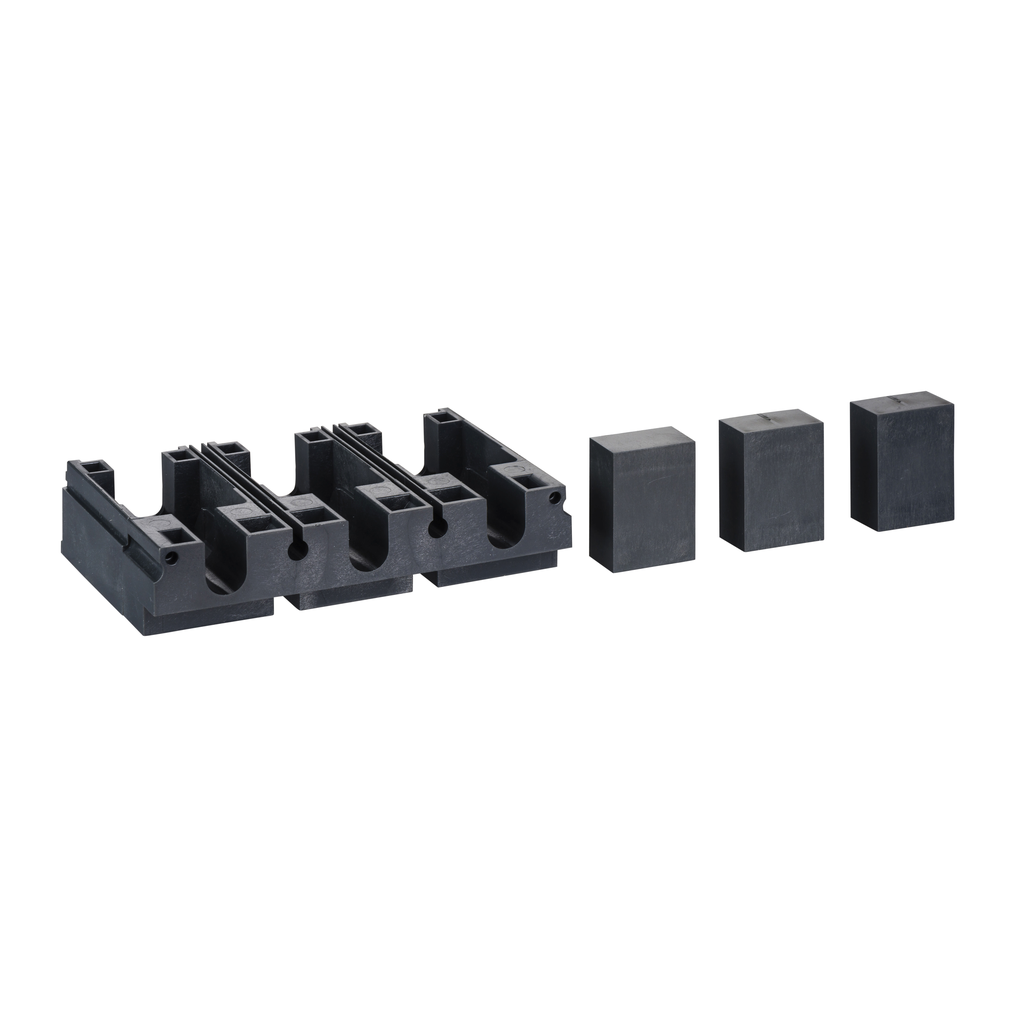

This is a connection adapter for 3 poles plug-in base for Compact NSX 100/160/250. It allows to connect the power circuit to the power terminals of Compact NSX plug-in circuit breaker.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Compatibility |
|
|---|---|
| Poles Description | 3P |
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | connection adapter |
| Warranty | 18 months |
| Line Rated Current | 250 A |
| Mounting Mode | plug-in |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111165EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
