LV429267
plug in base, ComPact NSX100/160/250, front/rear connected, 4 poles

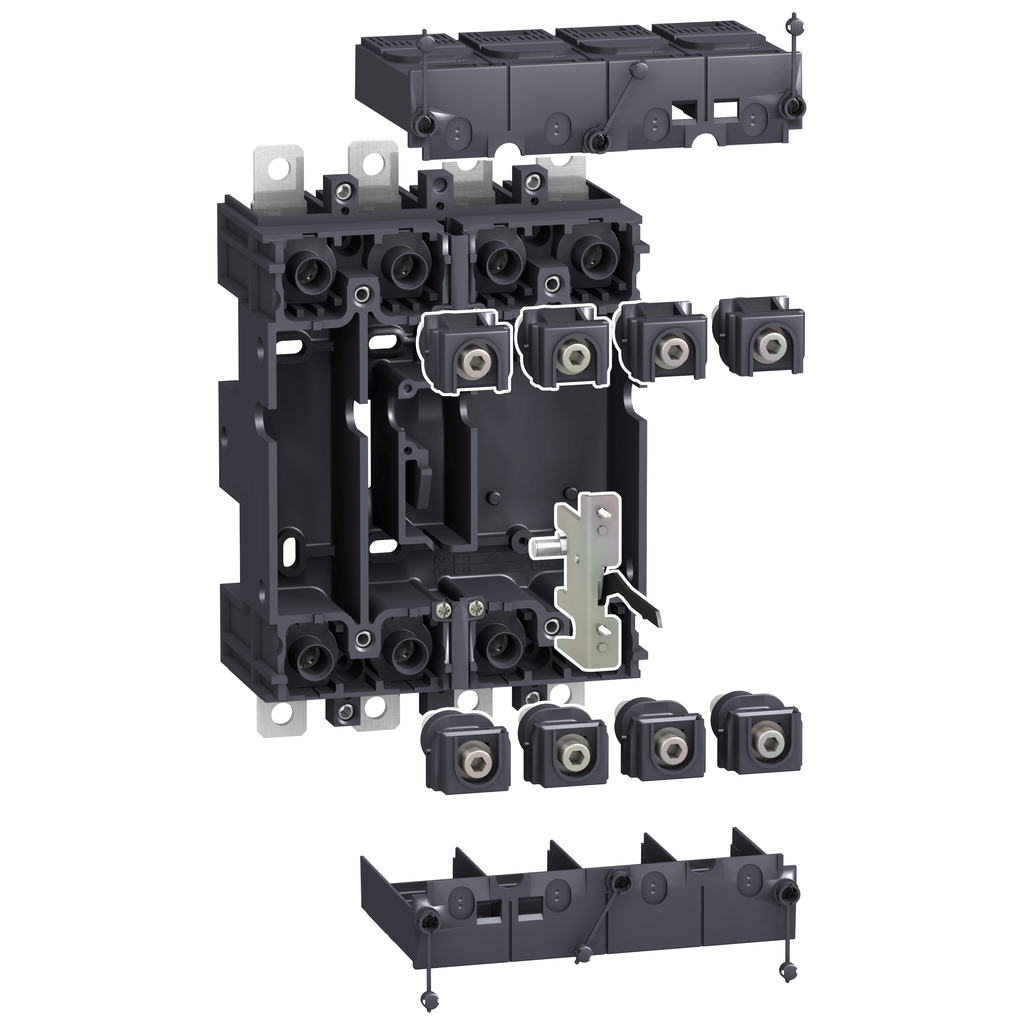

This is a plug-in base for 4 poles Compact NSX 100/160/250 circuit breakers. The plug-in base is part of a complete plug-in kit. A plug-in configuration is made by adding a plug-in kit to a fixed Compact NSX device. A plug-in configuration allows to install or extract rapidly and easily the circuit breaker from its base. This operation can be done without connecting or disconnecting the power circuit.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Compatibility |
|
|---|---|
| Poles Description | 4P |
| Accessory / Separate Part Category | mounting accessory |
| Product Or Component Type | plug-in base |
| Warranty | 18 months |
| Line Rated Current | 250 A |
| Mounting Mode | plug-in |
| Earth-Leakage Protection | without |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111165EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
