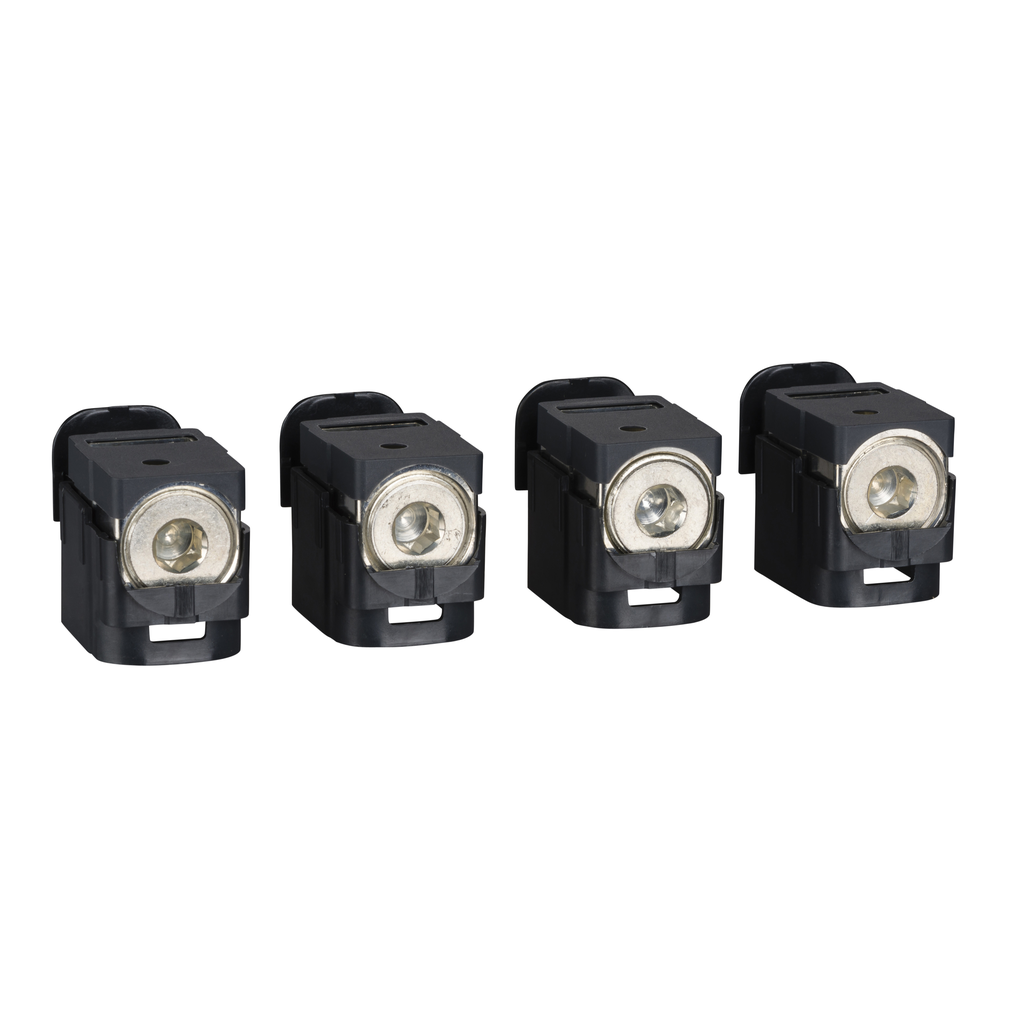

These accessories are aluminium bare cable connectors for Compact NSX 100/160/250 and EasyPact CVS 100/160/250. These connectors can receive 1 copper or aluminium cables from 120mm² to 185mm². The connectors snap directly on to the device terminals or are secured by clips to terminal extensions. The rated current is up to 250 A. They are sold by set of 4 parts.
Brand: Schneider Electric
Add to Quote CatalogueRange Compatibility |
|
---|---|
Accessory / Separate Part Category | connection accessory |
Product Or Component Type | bare cable connector |
Poles Description | 4P |
Quantity Per Set | set of 4 |
Warranty | 18 months |
Conductor Material | aluminium |
Connections - Terminals | screw terminal1 120-185 mm² |
Line Rated Current | 250-250 A |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP120606EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Circularity Profile | ENVEOLI120604EN |
Eu Rohs Directive | Compliant |
