LV429248

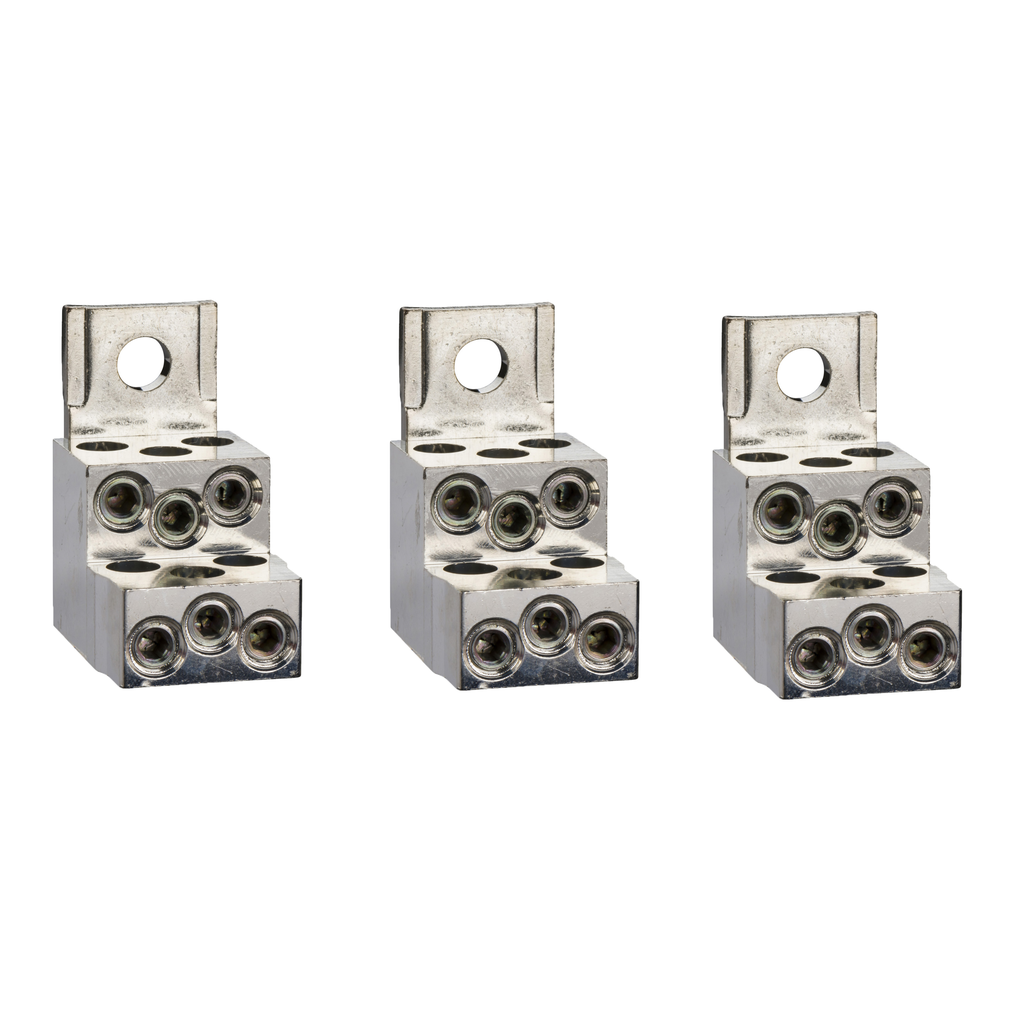

Aluminium bare cable connectors, ComPacT NSX, for 6 cables 1.5mm² to 35mm², 250A, set of 3 parts
These accessories are aluminium bare cable connectors for Compact NSX 100/160/250. These connectors can receive 6 copper or aluminium cables from 1.5mm² to 35mm². The connectors are screwed directly on the device terminals or right angle terminal extensions. The rated current is up to 250 A. They are sold by set of 3 parts.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Compatibility |
|
|---|---|
| Poles Description | 3P |
| Accessory / Separate Part Category | connection accessory |
| Quantity Per Set | set of 3 |
| Product Or Component Type | bare cable connector |
| Warranty | 18 months |
| Line Rated Current | 250-250 A |
| Conductor Material | aluminium |
| Connections - Terminals | screw terminal6 1.5-35 mm² |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | ENVEOLI120604EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP120606EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
