LV429243

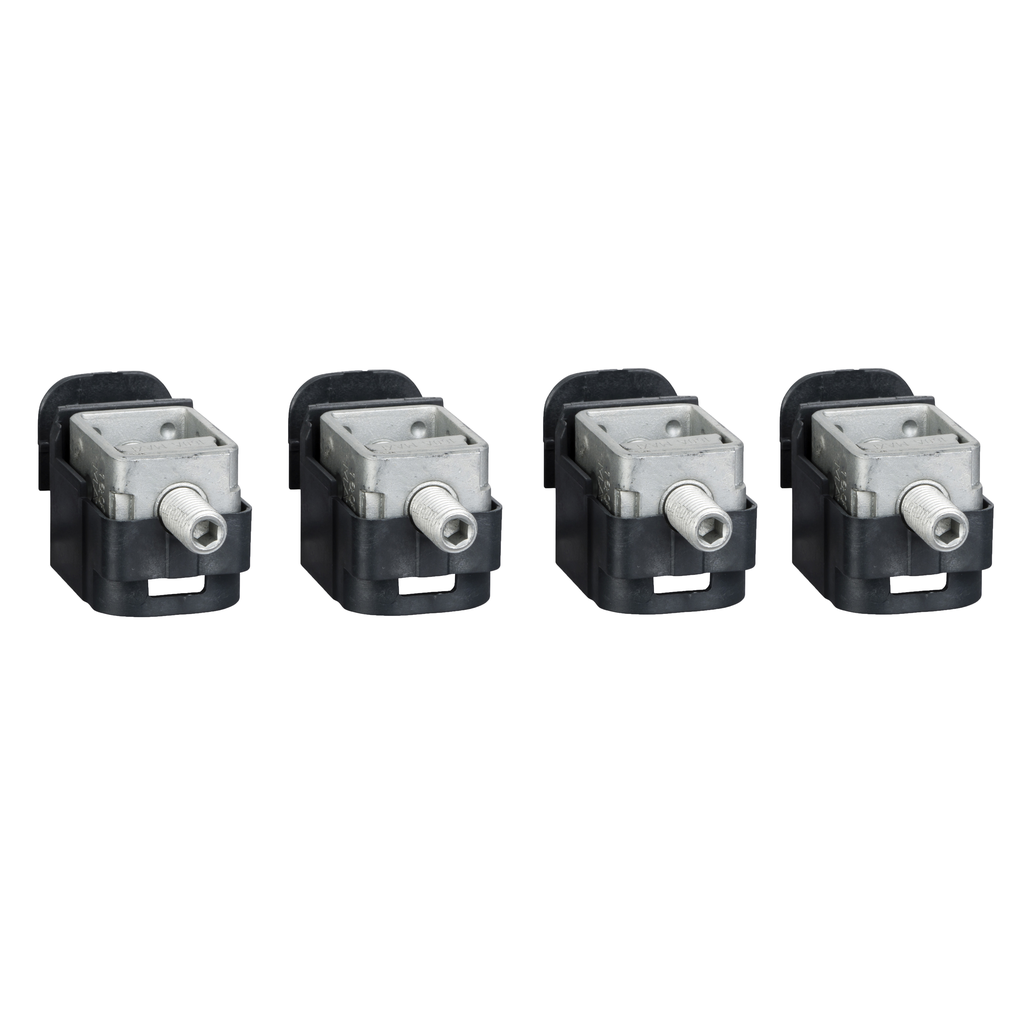

Steel bare cable connectors, ComPacT NSX, for 1 cable 1.5mm² to 95mm², 160A, set of 4 parts
These accessories are steel bare cable connectors for Compact NSX 100/160 and EasyPact CVS 100/160. These connectors can receive 1 copper or aluminium cables from 1.5mm² to 95mm². The connectors snap directly on to the device terminals or are secured by clips to terminal extensions. The rated current is up to 160 A. They are sold by set of 4 parts.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Compatibility |
|
|---|---|
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | bare cable connector |
| Poles Description | 4P |
| Quantity Per Set | set of 4 |
| Warranty | 18 months |
| Conductor Material | steel |
| Connections - Terminals | screw terminal1 1.5-95 mm² |
| Line Rated Current | 160-160 A |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP120606EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | ENVEOLI120604EN |
| Eu Rohs Directive | Compliant |
Documents
- Spec Sheet
- COMPACT NSX COMPACT INS INV and MASTERPACT NW DC DC PV catalog - LVPED208006EN (pdf)
- Catalogue Compact NSX & NSXm circuit breakers and switch disconnectors from 16 to 630A up to 690V - LVPED217032EN (pdf)
- ComPacT NSX & NSXm Circuit Breakers and Switch Disconnectors from 16 to 630A up to 690V - 2022 - LVPED221001EN (pdf)
- Instruction sheet for the Adapter for plug in base NSX100-250 A, FPower NSX and GV7 - GHD1625201 (pdf)
