LV426941

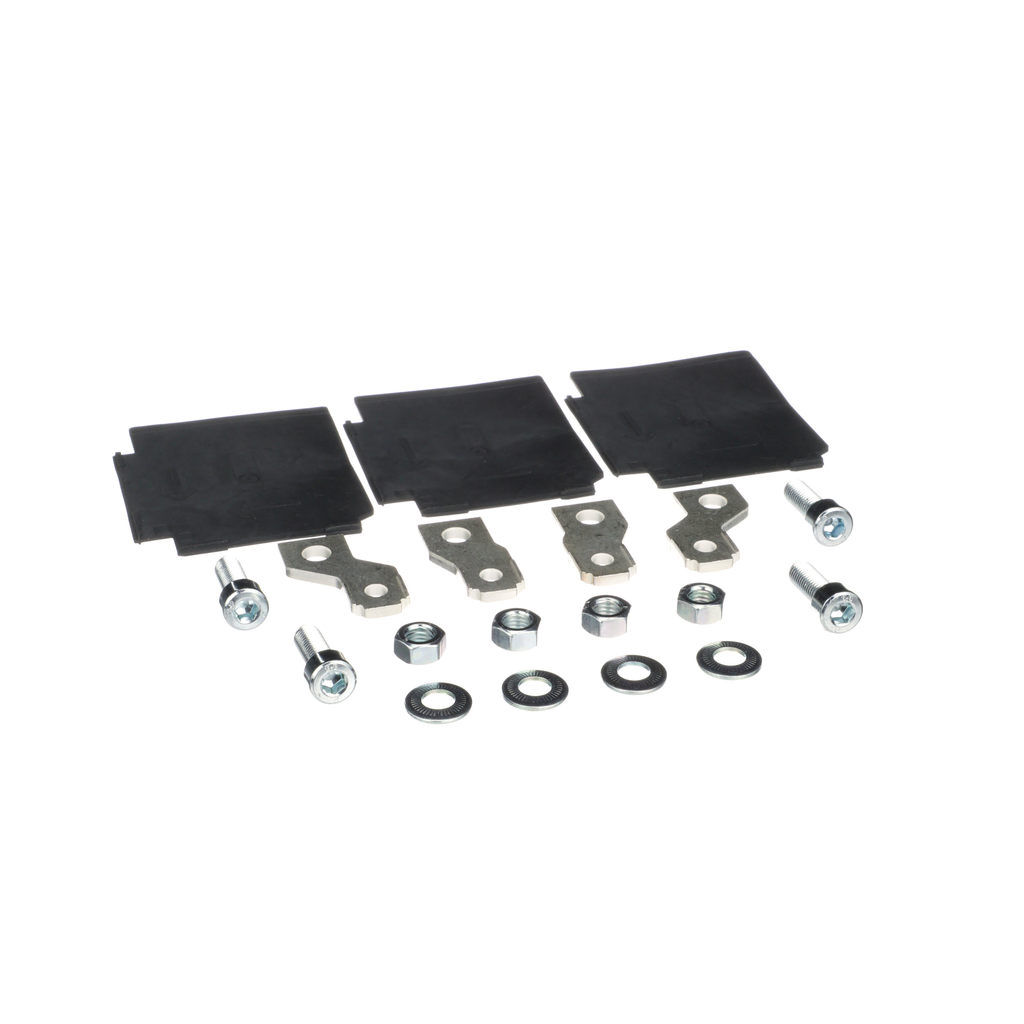

Spreaders, ComPact NSXm, 4 poles, 27mm to 35mm pitch, set of 4 parts
It is a set of 4 spreaders used to increase the pitch between the poles from 21 mm to 35 mm. It is used on compact NSXm and PowerPact B devices. Bares and cable lugs are attached to the end of the spreaders. These accessories are supplied with M8 screws for power connection and 3 interphase barriers.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Compatibility |
|
|---|---|
| Product Or Component Type | spreader |
| Conductor Material | copper |
| Connection Pitch | 35 mm |
| Connections - Terminals |
|
| Line Rated Current | 160-160 A |
| Mounting Mode | fixed |
| Poles Description | 4P |
| Quantity Per Set | set of 1 |
| Provided Equipment | interphase barriers |
| Location Of Connection |
|
| Tightening Torque |
|
| Accessory / Separate Part Type | connection accessories |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111247EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | ENVEOLI111002EN |
| Eu Rohs Directive | Compliant |
