LV426912

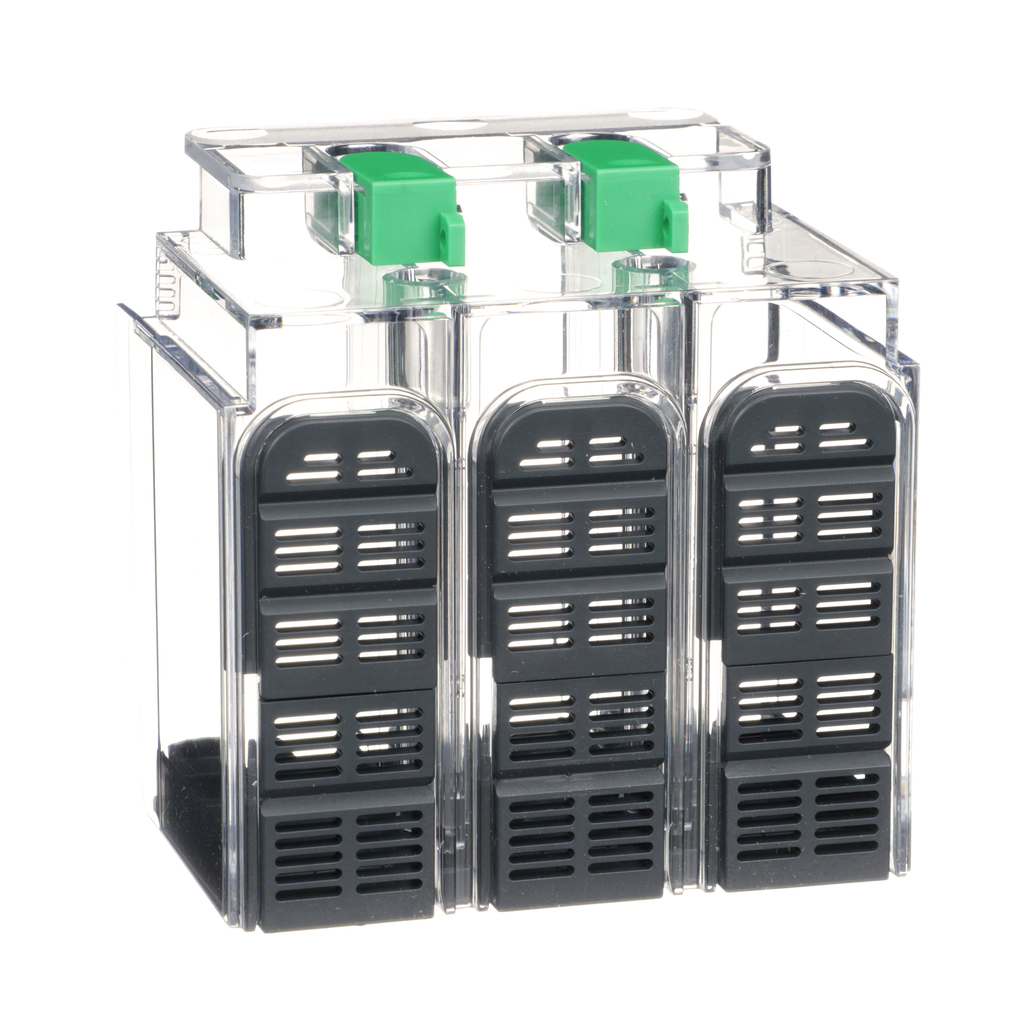

Long terminal shield, ComPacT NSXm, upstream and downstream mounting, IP40, 3 poles
It is a long terminal shield for 3 poles Compact NSXm and PowerPact B devices. It is designed for protection against direct contact with power circuit The long terminal shield is used for connection with cables or insulated bares. It can be mounted upstream and downstream the circuit breaker. This part provides IP 40 degree of protection and IK 07 mechanical impact protection. It can be mounted after the product installation and can be removed and put in place even if there are auxiliary wires.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Compatibility |
|
|---|---|
| Product Or Component Type | long terminal shield |
| Connection Pitch | 35 mm |
| Ip Degree Of Protection | IP40 conforming to IEC 60529 |
| Poles Description | 3P |
| Quantity Per Set | set of 1 |
| Location Of Connection |
|
| Accessory / Separate Part Type | insulation accessories |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111251EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Documents
- Spec Sheet
- Catalogue PrismaSeT P Active - PrismaSeT_P_Active_DESW026EN (pdf)
- Catalog Powerpact B Multistandard - LVPED216029EN (pdf)
- Catalogue Compact NSX & NSXm circuit breakers and switch disconnectors from 16 to 630A up to 690V - LVPED217032EN (pdf)
- Catalogue PrismaSeT G - PrismaSeT+G_DESW025EN (pdf)
- ComPacT NSX & NSXm Circuit Breakers and Switch Disconnectors from 16 to 630A up to 690V - 2022 - LVPED221001EN (pdf)
- PowerPacT B-Frame 15 to 125 A Circuit Breakers - Catalog - 0611CT1603 (pdf)
- Catalog PrismaSeT G Active - PrismaSeT+G+Active_DESW027EN (pdf)
- Catalog PrismaSeT P - PrismaSeT_P_DESW024EN (pdf)
- PowerPact B-frame Molded Case Circuit Breakers Brochure - 0611BR1601 (pdf)
- EcoStruxure Power Asset Performance eGuide - 998-20406243_US_NEMA (pdf)
- PowerPacT: The New Generation of Molded Case Circuit Breakers (MCCB) - brochure - 998-21101950_NAM_PowerPacT (pdf)
- PowerPacT B-Frame / ComPacT NSXm - Insulation Accessories - Instruction Sheet - EAV91215-02 (pdf)
