LV426861

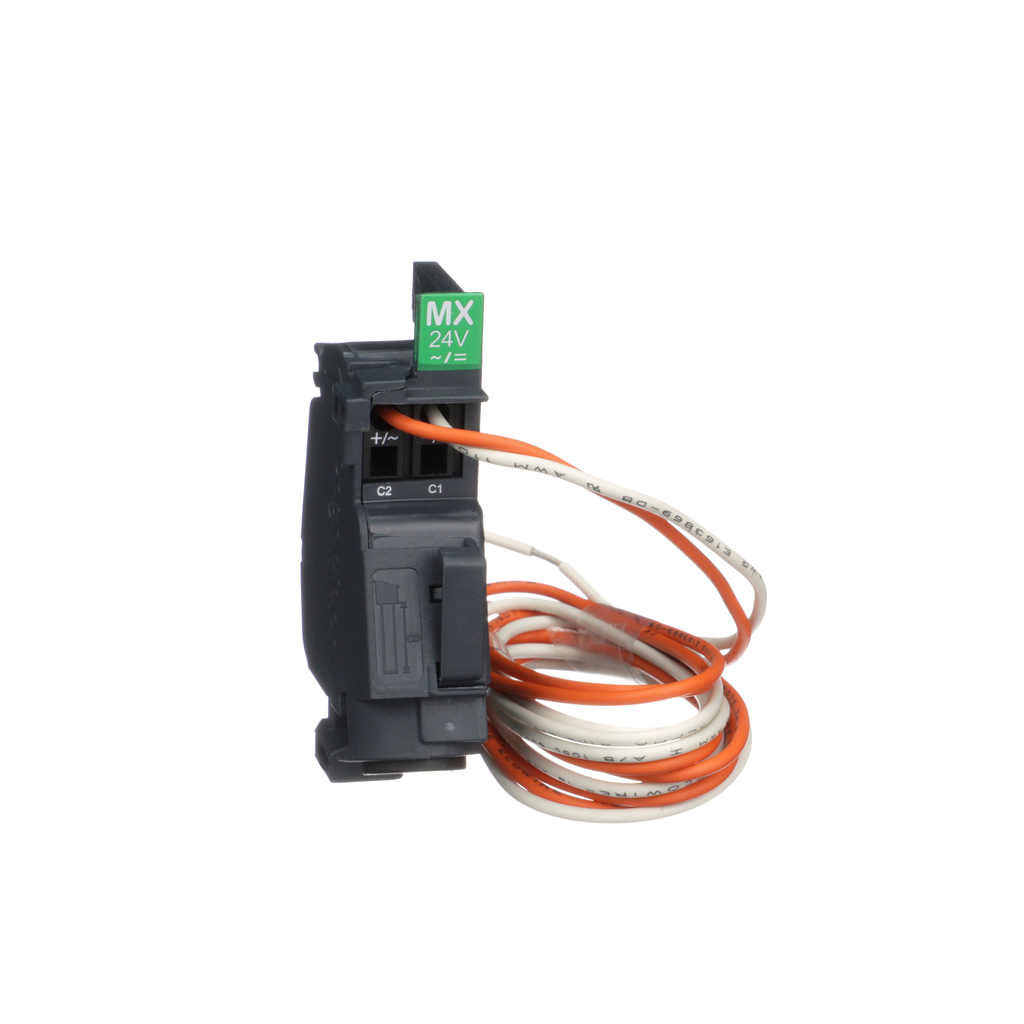

Pre-wired shunt trip release MX, ComPacT NSXm, 24VDC, 24VAC 50/60Hz
This pre-wired MX shunt trip is used on Compact NSXm and PowerPact B devices. This auxiliary is used for emergency off or failsafe remote opening applications. It is a one click spring type auxiliary for quick and easy installation, visible from the front face of the device. This MX auxiliary has a 24 VAC 50/60Hz or 24VDC rated voltage. It trips the circuit breaker when the control voltage rises above 70% of its rated value. It complies with IEC 60947-2 standard. Compact NSXm and PowerPact B embed either 1 MN or 1 MX coil.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| [Uc] Control Circuit Voltage |
|
|---|---|
| Range Of Product | ComPacT NSXm new generation |
| Range Compatibility |
|
| Product Or Component Type | voltage release |
| Range | ComPact |
| Control Type | standard |
| Voltage Release Type |
|
| Device Application | control |
| Device Short Name | MX |
| Auxiliary Connection Terminal | pre-wired 0-0.8 mm² AWG 18)stranded copper |
| Length | 1 m |
| Wire Stripping Length | 8 mm |
| Impulse Duration | >= 20 ms |
| Control Signal Type |
|
| Response Time | < 50 ms |
| Threshold Tripping Voltage | 0.7 Un opening |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant |
