LULC15 - Advantys STB communication module, TeSys Ultra, 24VDC supply

LULC15

Advantys STB communication module, TeSys Ultra, 24VDC supply

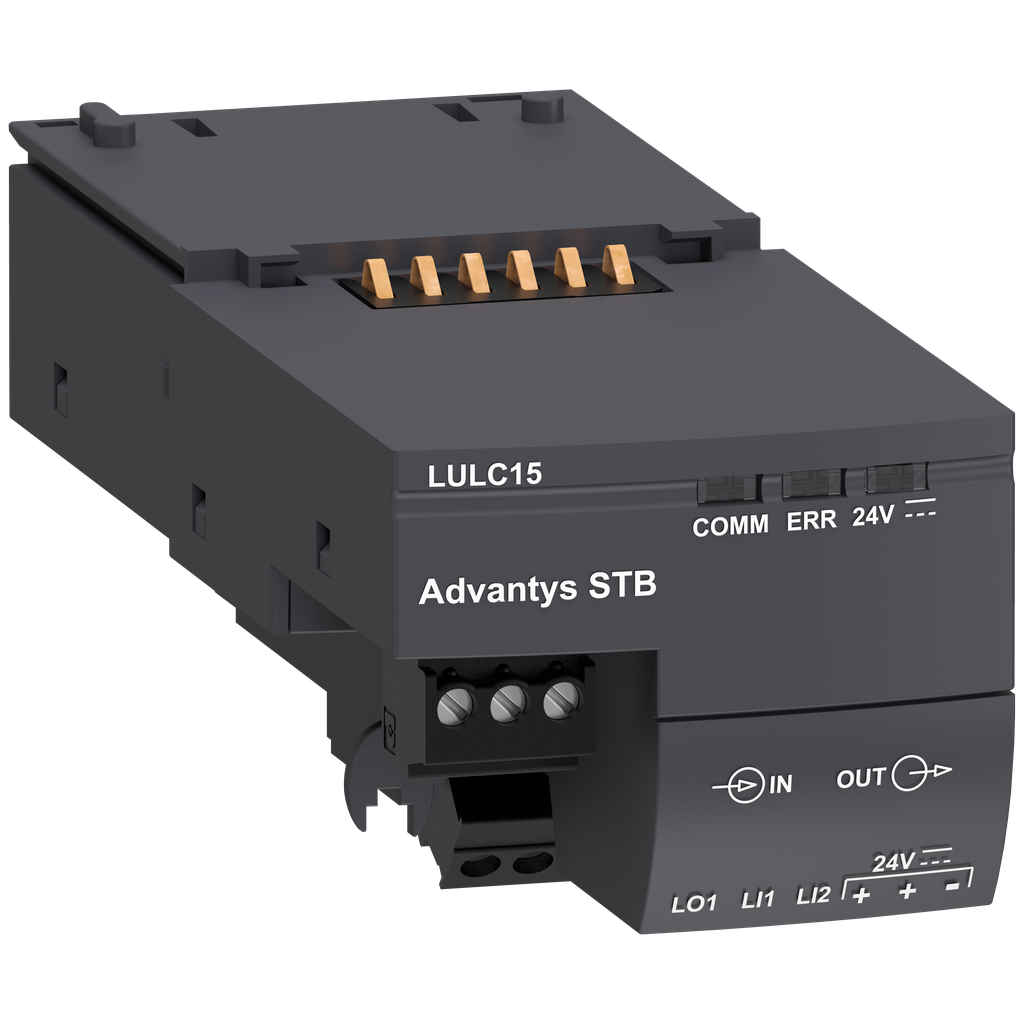

TeSys U communication module for Advantys STB, to be inserted in advanced power bases LUB120, LUB320, LUB380 equipped with a BL type (24V DC) LUC control unit. It provides 2 FireWire IEEE 1394 for connection to an Advantys STB line, a plug-in terminal block for the connection to an external power supply 24V DC, in addition with 2 x configurable logic inputs 24V DC and 1 x logic output 24V DC. On the bottom, a 3-point plug-in terminal block is provided for the local control of the starter controller, to be associated with a control terminal block LU9BN11L for a LUB base or LU9MRL for a LU2B base. It displays 3 LEDs indicating 24V voltage presence (24V=) and communication status (COMM, ERR). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Range Compatibility	TeSys (TeSys U) LUB non reversing power base TeSys (TeSys U) LU2B reversing power base
Product Or Component Type	communication module
Range	TeSys
Product Compatibility	LUCC LUCA LUCL LUCM LUCB LUCD
Device Application	communication
Device Short Name	LUL
Warranty	18 months
Addressing	self-addressing
Output Current	<= 500 mA
Associated Cable Type	AWG 26...AWG 16
Number Of Outputs	2 dedicated to starter-controller coil operation 1
Response Time	10 ms +/- 30 % change to state 0 10 ms +/- 30 % change to state 1
Current Consumption	1.5 mA 24 V DC 20...28 V
Cable Connector Type	fire wire
Logic Input	positive 24 V DC - 7 mA
Connections - Terminals	screw clamp terminals 1 0.14-1 mm²flexible without cable end screw clamp terminals 1 0.14-1 mm²rigid without cable end screw clamp terminals 1 0.25-0.5 mm²flexible with cable end screw clamp terminals 1 0.25-1 mm²flexible with cable end screw clamp terminals 2 0.14-0.5 mm²rigid without cable end screw clamp terminals 2 0.14-0.75 mm²flexible without cable end screw clamp terminals 2 0.25-0.34 mm²flexible with cable end screw clamp terminals 2 0.5-0.5 mm²flexible with cable end
Input Type	resistive
Mounting Location	front side
Function Available	communication module
[Us] Rated Supply Voltage	24 V DC
Communication Port Protocol	CAN2.B CAN2.0A
Mounting Mode	plug-in
Physical Interface	CAN
Switching Current Capacity	0.5 mA 24 V
Bus Type	Advantys STB
Local Signalling	3 LEDs front panel
Connection Pitch	3.81 mm
Transmission Rate	800 kbit/s
Tightening Torque	0.2-0.25 N.m 2.5 mm
Rohs Exemption Information	Yes
Mercury Free	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive	Compliant
Ambient Air Temperature For Operation	-25-55 °C
Ip Degree Of Protection	IP20 conforming to IEC 60529
