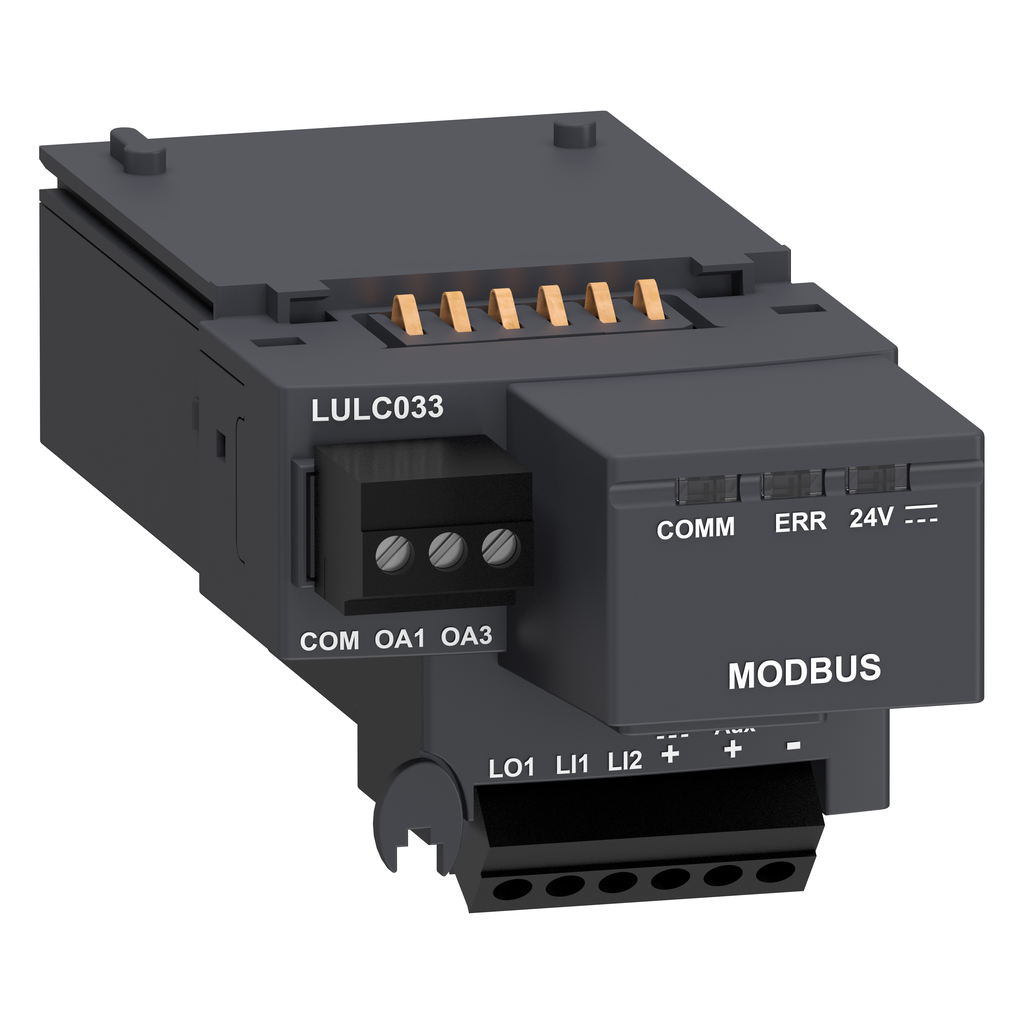

TeSys U communication module for Modbus, to be inserted in advanced power bases LUB120, LUB320, LUB380 equipped with a BL type (24V DC) LUC control unit. It provides a RJ45 connector for connection to a Modbus network, a plug-in terminal block for the connection to an external power supply 24V DC, in addition with 2 x configurable logic inputs 24V DC and 1 x logic output 24V DC. On front side, a 3-point plug-in terminal block is provided for the local control of the starter controller, to be associated with a control terminal block LU9BN11C for a LUB base or LU9MRC for a LU2B base. It displays 3 LEDs indicating 24V voltage presence (24V=) and communication status (COMM, ERR). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueRange Compatibility |
|
---|---|
Product Or Component Type | communication module |
Range | TeSys |
Product Compatibility |
|
Device Application | communication |
Device Short Name | LUL |
Warranty | 18 months |
Addressing | 0...31 |
Output Current | <= 500 mA |
Associated Cable Type | AWG 26...AWG 16 |
Number Of Outputs |
|
Number Of Inputs | 2 |
Protection Type | gG fuse 1 A |
Response Time |
|
Cable Connector Type | RJ45 front panel |
Logic Input | positive 24 V DC - 7 mA |
Connections - Terminals |
|
Net Weight | 0.08 kg |
Input Type | resistive |
Mounting Location | front side |
Function Available | communication module |
[Us] Rated Supply Voltage | 24 V DC |
Communication Port Protocol | Modbus RTU |
Mounting Mode | plug-in |
Physical Interface | RS485 multidrop |
Switching Current Capacity | 0.5 mA 24 V |
Bus Type | Modbus |
Return Time | 30 ms |
Local Signalling | 3 LEDs front panel |
Connection Pitch | 3.81 mm |
Transmission Rate | 19200 bit/s |
Tightening Torque | 0.2-0.25 N.m 2.5 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Eu Rohs Directive | Compliant |
Ambient Air Temperature For Operation | -25-55 °C |
Ip Degree Of Protection | IP20 conforming to IEC 60529 |
