LUFV2 - Function module, indication of motor load, TeSys Ultra, 4mA to 20mA

LUFV2

Function module, indication of motor load, TeSys Ultra, 4mA to 20mA

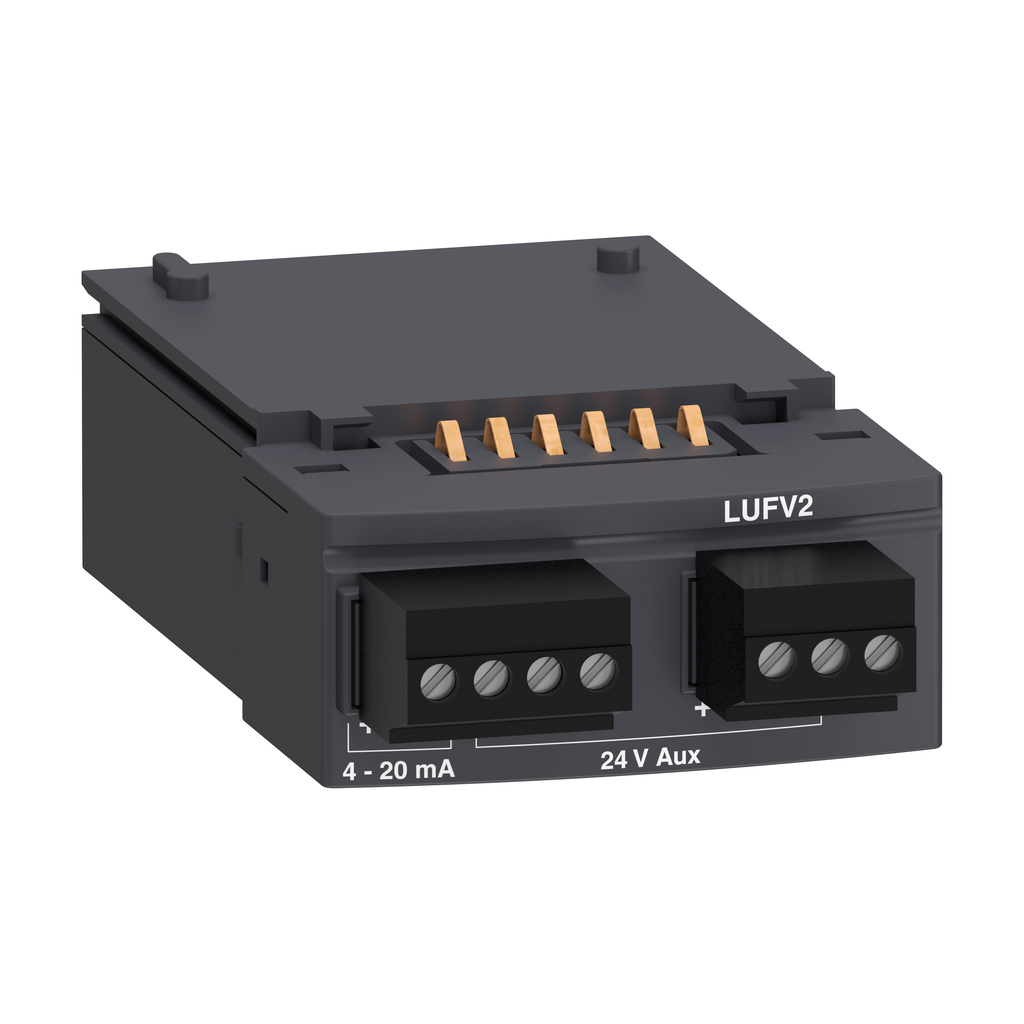

TeSys U additional function module to be inserted in advanced power bases LUB120, LUB320, LUB380 for motor load monitoring. It provides a 4-20mA output signal, image of the load ratio, to be connected to a load impedance 100 Ohm typical (500 Ohm max). It measures the phase currents and computes the ratio I average/Ir ratio within the range of 0 to 2 for LUCB and LUCD, and of 0 to 3 for LUCC control units. It requires an external power supply 24V DC. To be inserted in the cavity of a power base provided for the auxiliary modules. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Or Component Type	function module
Range	TeSys
Product Compatibility	LUCC LUCM LUCB LUCD
Device Short Name	LUF
Warranty	18 months
Type Of Output Signal	value of I average/Ir ratio within the range of 0 to 2 for LUCB and LUCD value of I average/Ir ratio within the range of 0 to 3 for LUCC
Connection Pitch	3.81 mm
Associated Cable Type	AWG 26...AWG 16
Analogue Output Current	4-20 mA
Connections - Terminals	screw clamp terminals 1 0.14-1 mm² flexible without cable end screw clamp terminals 1 0.14-1 mm² rigid without cable end screw clamp terminals 1 0.25-0.5 mm² flexible with cable end screw clamp terminals 1 0.25-1 mm² flexible with cable end screw clamp terminals 2 0.14-0.5 mm² rigid without cable end screw clamp terminals 2 0.14-0.75 mm² flexible without cable end screw clamp terminals 2 0.25-0.34 mm² flexible with cable end screw clamp terminals 2 0.5-0.5 mm² flexible with cable end
Net Weight	0.05 kg
Mounting Location	front side
Function Available	indication of motor load
Measurement Accuracy	+/- 10 % with multifunction control unit 1 % of Ir +/- 6 % with advanced control unit
Mounting Mode	plug-in
Load Impedance Ohmic	100 Ohm typical <= 500 Ohm
[Us] Rated Supply Voltage	24 V DC
Tightening Torque	0.2-0.25 N.m 2.5 mm flat
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP111201EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI111214EN_V1
Eu Rohs Directive	Compliant
