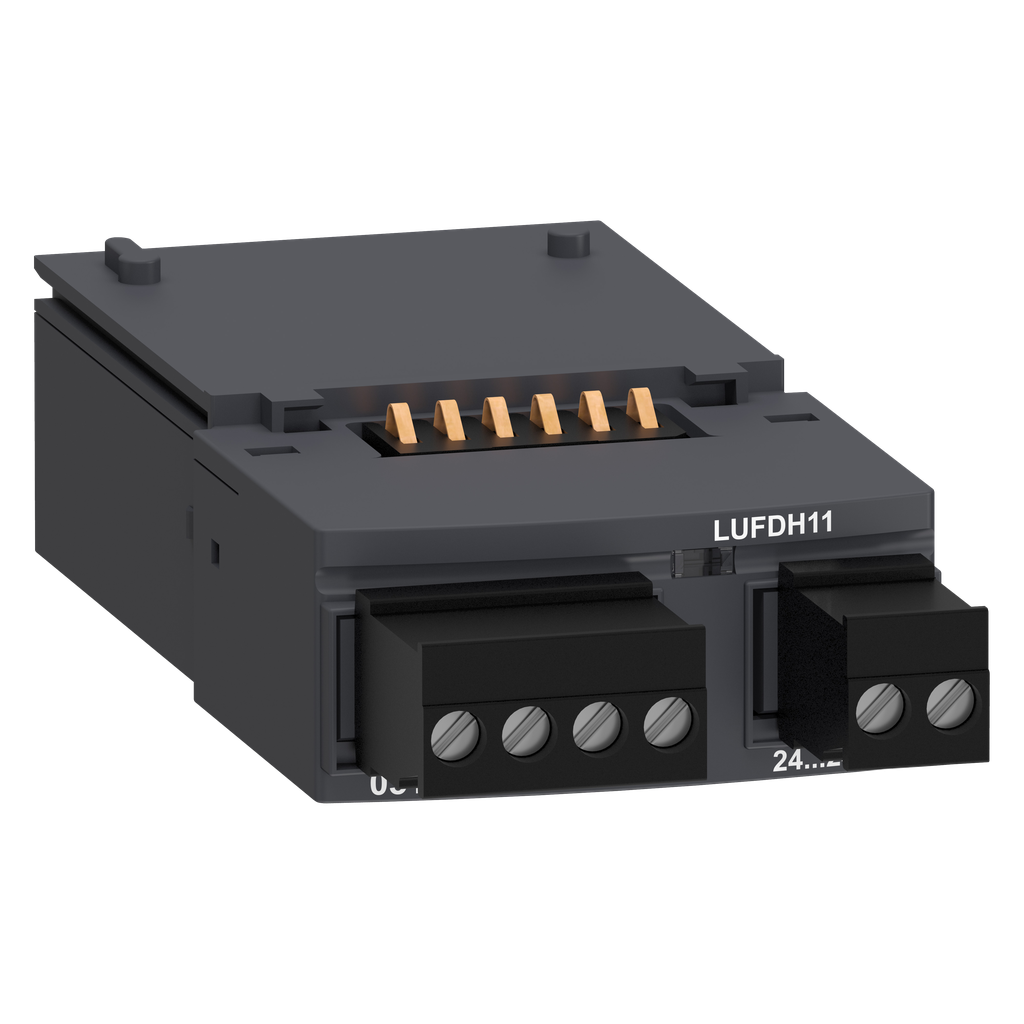

LUFDH11 - Function module, thermal overload signalling, TeSys Ultra, 1 NO 1 NC

LUFDH11

Add to Quote Catalogue

Product Or Component Type	function module
Range	TeSys
Product Compatibility	LUCC LUCB LUCD
Device Short Name	LUF
Warranty	18 months
Input Type	remote reset 0.2-1.5 mm² <500 m 50 Ohm 52.8 mH 0.093 nF
[Ith] Conventional Free Air Thermal Current	2 A 70 °C
Auxiliary Contact Composition	1 NO + 1 NC
Short-Circuit Protection	2 A fuse gG IEC 60947-5-1
Connection Pitch	5.08 mm
Current Consumption	7 mA 24 V DC 1.1 mA 240 V AC
Communication Of Faults	LED front panel
Connections - Terminals	screw clamp terminals 2 0.2-1 mm² rigid without cable end screw clamp terminals 2 0.25-1 mm² flexible with cable end screw clamp terminals 2 0.5-1 mm² flexible with cable end
Net Weight	0.06 kg
Mounting Location	front side
Function Available	thermal overload signalling and manual reset
Mounting Mode	plug-in
[Us] Rated Supply Voltage	24...240 V DC 24...240 V AC
Discrete Output Function	1 NO + 1 NC AC-15) 230 V 400 VA 100000 cycles 1 NO + 1 NC DC-13) 24 V 50 W 100000 cycles
Tightening Torque	0.5-0.6 N.m 3.5 mm flat
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP111201EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI111214EN_V1
Eu Rohs Directive	Compliant
