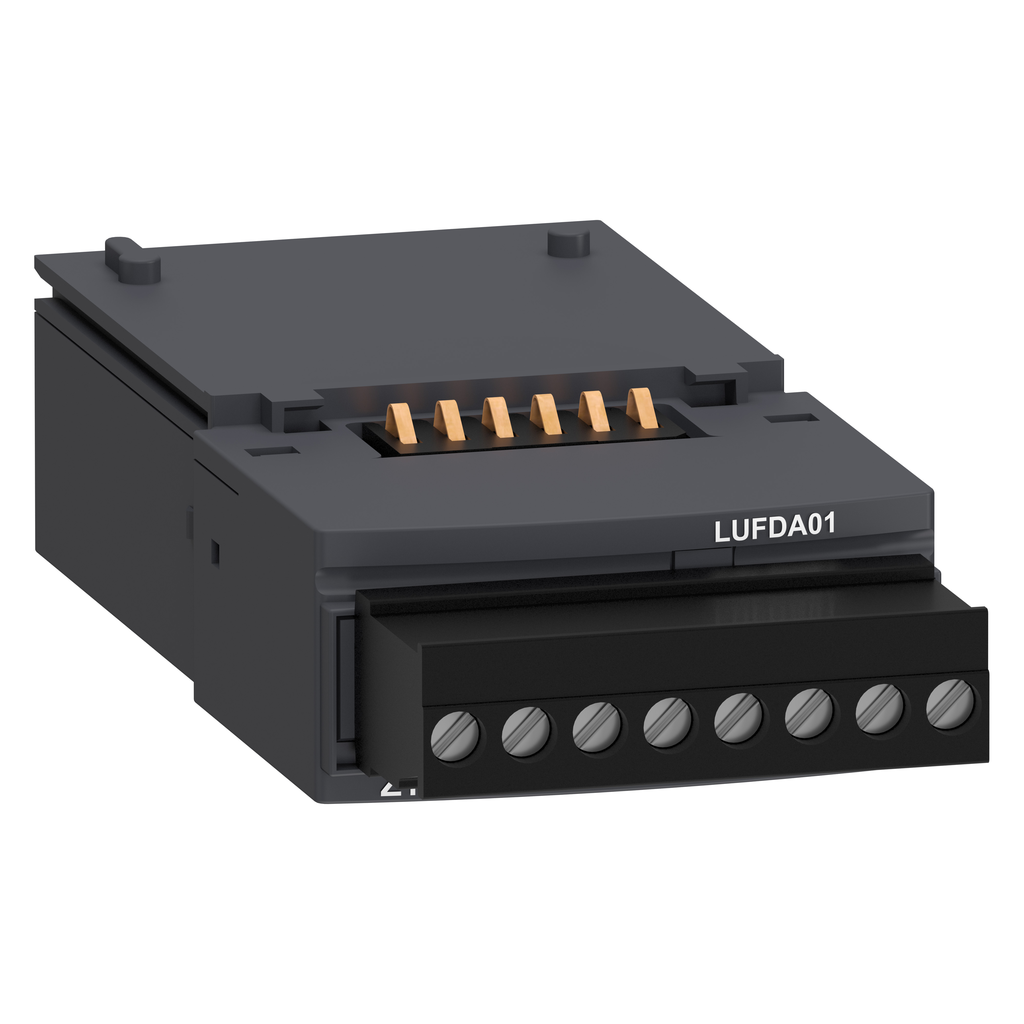

LUFDA01
Function module, thermal overload signalling, TeSys Ultra, 1NC
TeSys U additional function module to be inserted in advanced power bases LUB120, LUB320, LUB380 for thermal overload tripping indication. It indicates the overload tripping and reset done by the power base control pad or done remotely. It provides 1NC instantaneous contact rated 24-250V AC/DC 5A max. It requires an external power supply 24-240V AC or DC. To be inserted in the cavity of a power base provided for the auxiliary modules. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Or Component Type | function module |
|---|---|
| Range | TeSys |
| Product Compatibility |
|
| Device Short Name | LUF |
| Warranty | 18 months |
| [Ith] Conventional Free Air Thermal Current | 2 A 70 °C |
| Auxiliary Contact Composition | 1 NC |
| Short-Circuit Protection | 2 A fuse gG IEC 60947-5-1 |
| Connection Pitch | 5.08 mm |
| Communication Of Faults | LED front panel |
| Net Weight | 0.055 kg |
| Mounting Location | front side |
| Function Available | thermal overload signalling and automatic or remote reset |
| Mounting Mode | plug-in |
| [Us] Rated Supply Voltage | 24...240 V DC |
| Tightening Torque | 0.5-0.6 N.m 3.5 mm flat |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111201EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI111214EN_V1 |
| Eu Rohs Directive | Compliant |
