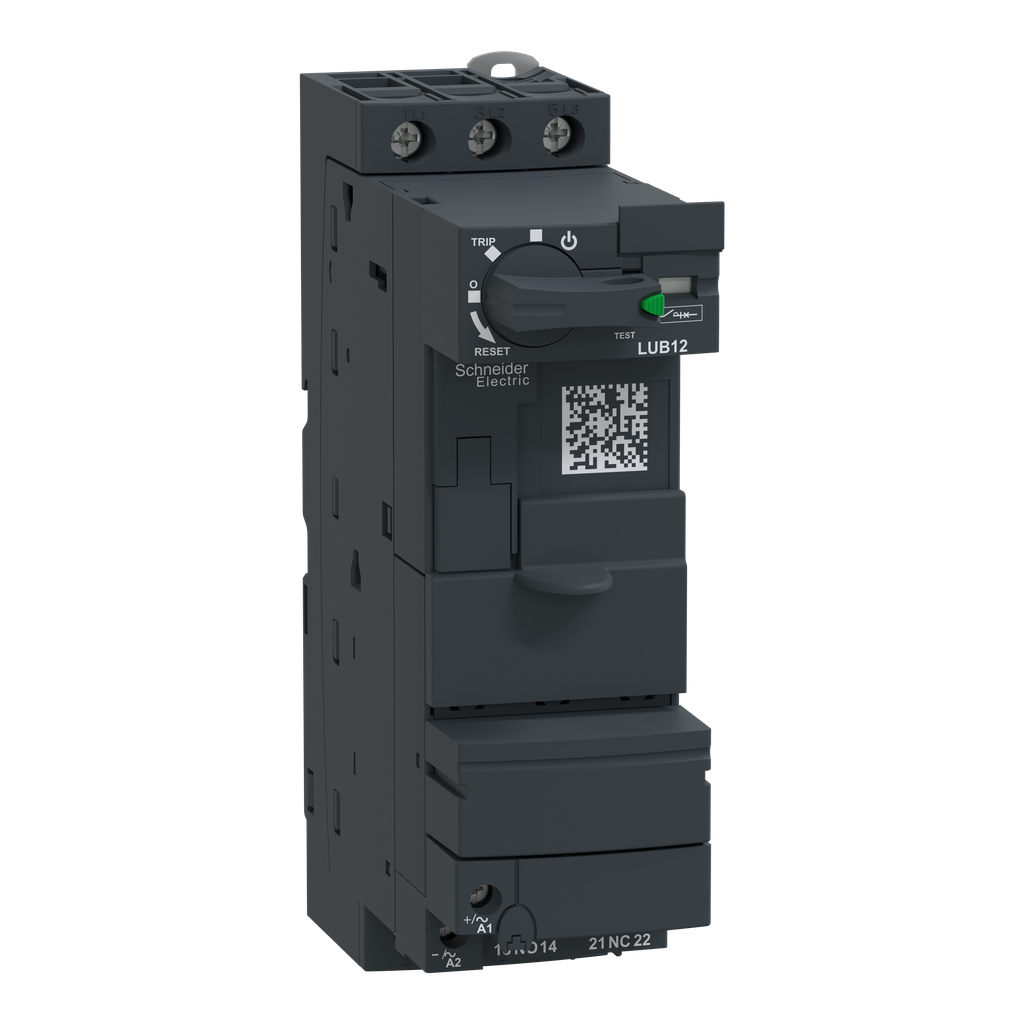

TeSys U standard power base, 3 poles (3NO), 12A/690V, to be completed with a control unit LUC to form a TeSys U starter controller, for 3-phase motor applications up to 5.5kW@400V. Base composed of power contacts, control coil, rotary handle, with a modular design for additional modules to form a "all in one" starter controller with basic or advanced protection and control functions. It is equipped with a control terminal block, and blanking shutters covering the empty cavities. It provides a high breaking capacity Icu 50kA@400V, start-stop control guaranteed for 3600 cycles/hour. Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle. Certified when used in conjunction with a LUC control unit (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote Catalogue[Ics] Rated Service Breaking Capacity |
|
---|---|
[Ue] Rated Operational Voltage | 690 V AC power circuit |
Auxiliary Contact Composition | 1 NO + 1 NC |
[Uc] Control Circuit Voltage |
|
Product Or Component Type | non reversing power base |
[Ith] Conventional Free Air Thermal Current | 12 A |
Product Name | TeSys Ultra |
Range | TeSys |
Utilisation Category |
|
[Ie] Rated Operational Current |
|
Suitability For Isolation | yes |
Auxiliary Contacts Type |
|
Poles Description | 3P |
Network Frequency | 40...60 Hz |
Device Application |
|
Device Short Name | LUB |
Warranty | 18 months |
Product Certifications |
|
Height | 154 mm |
Safety Reliability Level |
|
Maximum Operating Rate | 3600 cyc/h |
Connections - Terminals |
|
Net Weight | 0.9 kg |
Fixing Mode |
|
[Uimp] Rated Impulse Withstand Voltage | 6 kVIEC 60947-6-2 |
Standards |
|
[Ui] Rated Insulation Voltage |
|
Typical Current Consumption |
|
Mechanical Durability | 15 Mcycles |
Compatibility Code | LUB |
Operating Time |
|
Width | 45 mm |
Tightening Torque |
|
Safe Separation Of Circuit |
|
Depth | 126 mm |
Heat Dissipation |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP080203EN_V1 |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Circularity Profile | ENVEOLI0802003_V1 |
Eu Rohs Directive | Compliant |
Ambient Air Temperature For Operation |
|
Resistance To Radiated Fields | 10 V/m 3 IEC 61000-4-3 |
Non-Dissipating Shock Wave |
|
Shock Resistance |
|
Immunity To Microbreaks | 3 ms control circuit |
Immunity To Voltage Dips | 70 % / 500 ms IEC 61000-4-11 |
Vibration Resistance |
|
Ambient Air Temperature For Storage | -40-85 °C |
Protective Treatment | TH IEC 60068 |
Resistance To Electrostatic Discharge |
|
Ip Degree Of Protection |
|
Fire Resistance |
|
Immunity To Radioelectric Fields | 10 V IEC 61000-4-6 |
Resistance To Fast Transients |
|
Operating Altitude | 6561.68 ft (2000 m) |
