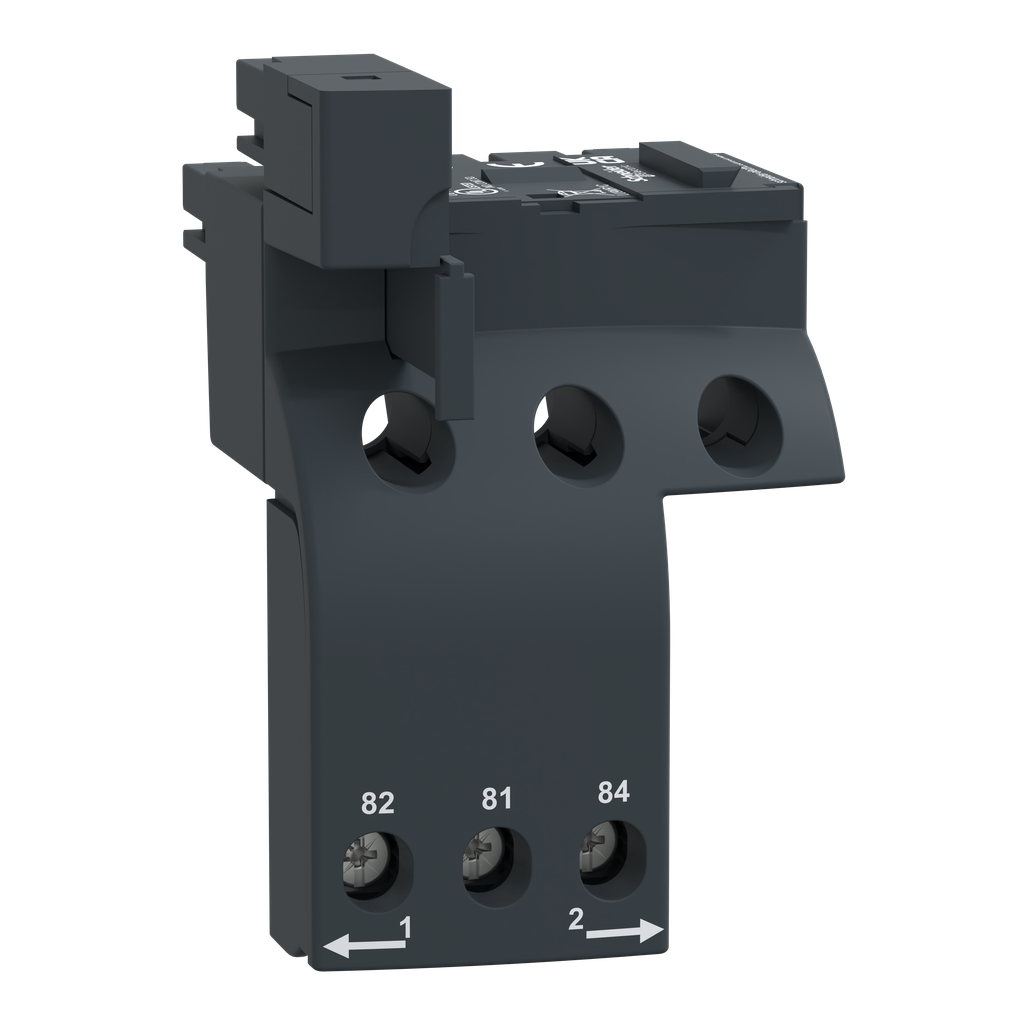

LU9MR1C
Control circuit pre-wired connector, reversing motor starter, TeSys Ultra
TeSys U assembling connector between a reverser block LU2M* and power bases LUB120, LUB320, LUB380 in vertical mounting. It provides screw clamp terminals for the wiring of the FW/RV/OFF control circuit (2 directions of rotation). Block included with a reversing power base LU2B12, LU2B32, LU2B38. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Or Component Type | pre-wired connector |
|---|---|
| Range | TeSys |
| Device Short Name | LU9MR |
| Warranty | 18 months |
| Net Weight | 0.035 kg |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111254EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
