LU9BN11

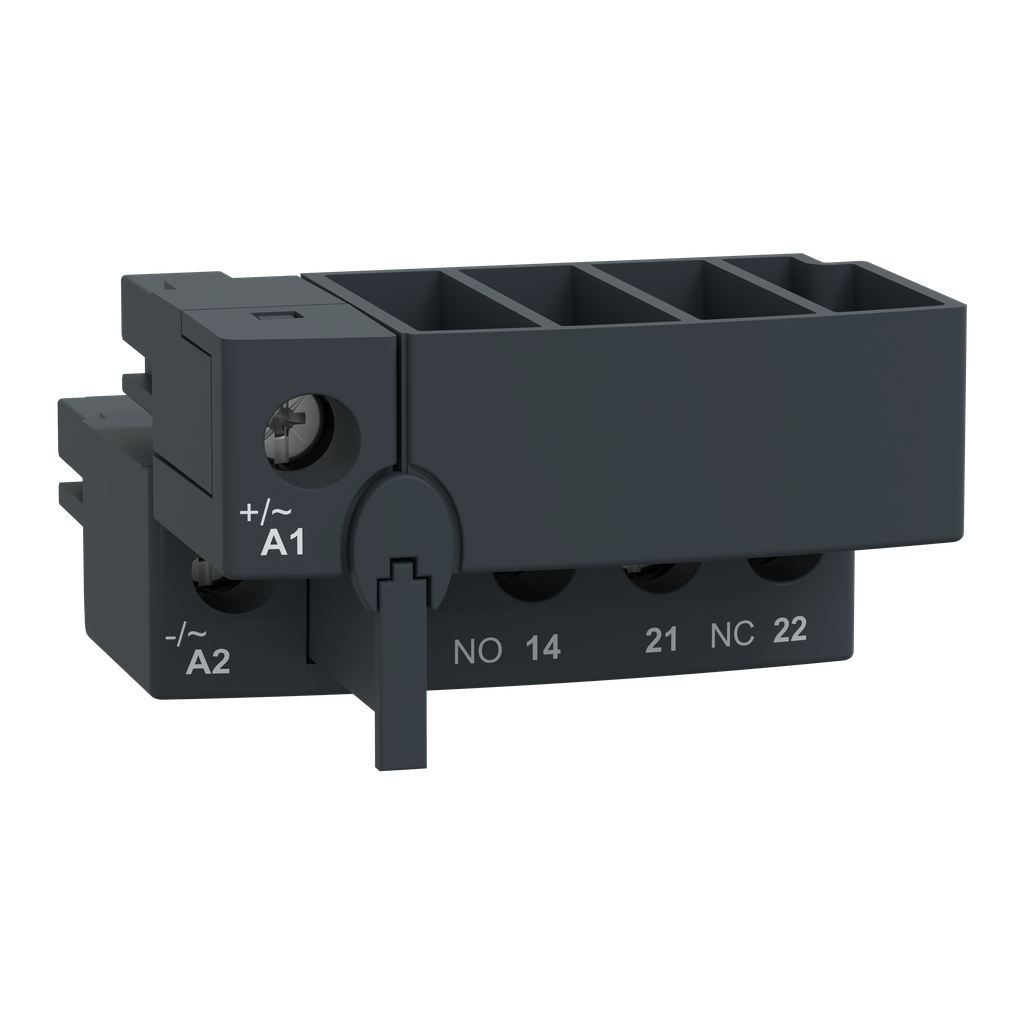

Screw clamp terminal block, TeSys Ultra, terminal block for power base LU9, 0.045 kg
TeSys U control terminal block to be inserted in advanced power bases LUB120, LUB320, LUB380 for the local control of a starter controller. To be used for ON/OFF control of one direction motor applications with wired control. It provides screw clamp terminals to access to the auxiliary contacts 1NO+1NC internal to the starter controller, and to the coil supply circuit. Block included with a standard power base LUB12, LUB32, LUB38. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Or Component Type | screw clamp terminal block |
|---|---|
| Range | TeSys |
| Product Compatibility |
|
| Device Short Name | LU9BN |
| Warranty | 18 months |
| Net Weight | 0.045 kg |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111254EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
