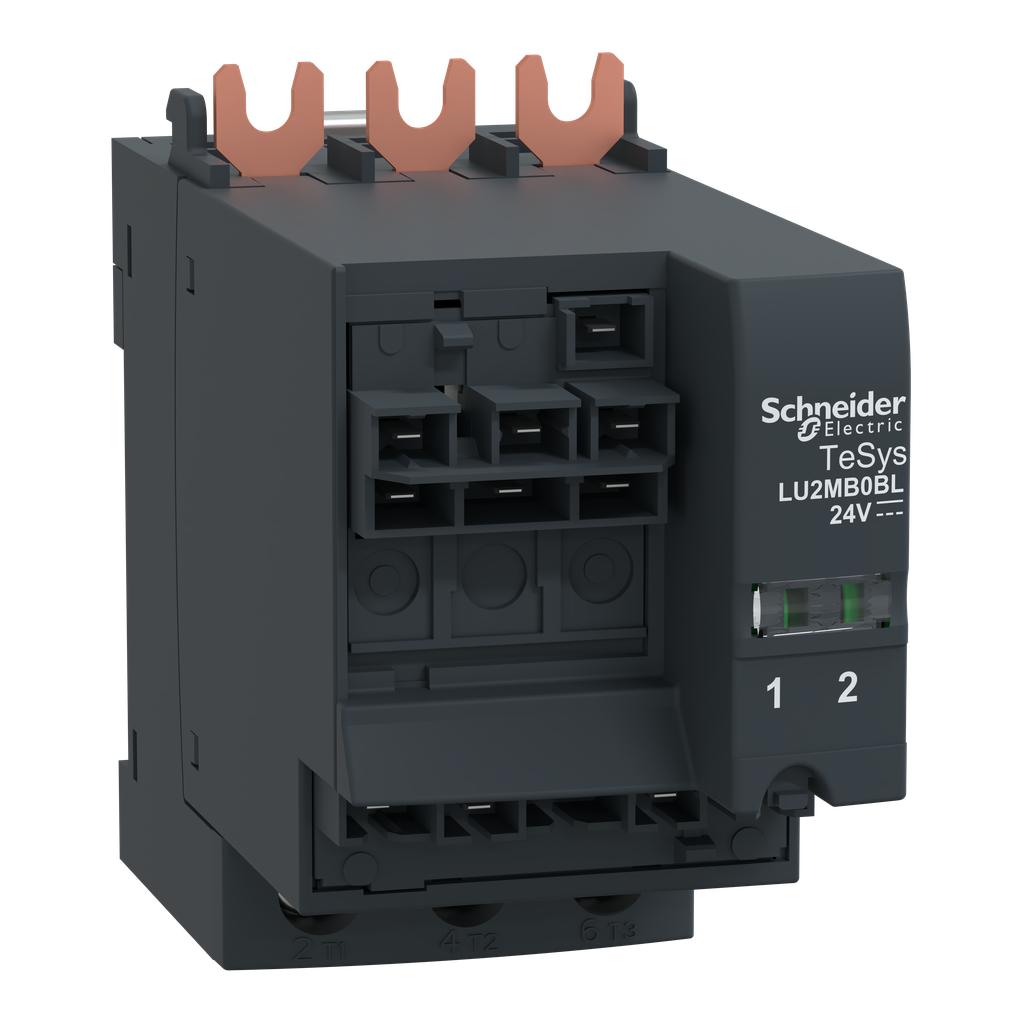

LU2MB0BL - Reverser block for vertical mounting, TeSys Ultra, 38A/690V, coil 24VDC

LU2MB0BL

Reverser block for vertical mounting, TeSys Ultra, 38A/690V, coil 24VDC

TeSys U reversing module for vertical mounting, for the constitution of TeSys U reversing starter controllers. It provides reverse power contacts, coil control with interlocking capabilities to be supplied with 24V DC. To be used with an advanced power base LUB120, LUB320, or LUB380 equipped with a Control Unit LUC*BL type. To be associated with an assembling connector LU9MR1C and a control terminal block LU9M1 to complete the vertical mounting. Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Device Mounting	direct mounting
[Uc] Control Circuit Voltage	24 V DC
Product Or Component Type	reverser block
Current Consumption	120 mA 24 V DC I maximum while closing 120 mA 24 V DC I rms sealed
Range	TeSys
[Ie] Rated Operational Current	38 A
Device Application	motor control
Device Short Name	LU2MB
Warranty	18 months
Product Certifications	CE UL CSA CCC EAC ASEFA ATEX Marine
[Ue] Rated Operational Voltage	690 V AC power circuit
Height	80 mm
Connections - Terminals	control circuit screw clamp terminals 1 0.34-1.5 mm² 3 mm) flexible with cable end control circuit screw clamp terminals 1 0.75-1.5 mm² 3 mm) flexible without cable end control circuit screw clamp terminals 1 0.75-1.5 mm² 3 mm) rigid control circuit screw clamp terminals 2 0.34-1.5 mm² 3 mm) flexible with cable end control circuit screw clamp terminals 2 0.75-1.5 mm² 3 mm) flexible without cable end control circuit screw clamp terminals 2 0.75-1.5 mm² 3 mm) rigid power circuit screw clamp terminals 1 1-10 mm² 4 mm) rigid power circuit screw clamp terminals 1 1-6 mm² 4 mm) flexible with cable end power circuit screw clamp terminals 1 2.5-10 mm² 4 mm) flexible without cable end power circuit screw clamp terminals 2 1-6 mm² 4 mm) flexible with cable end power circuit screw clamp terminals 2 1-6 mm² 4 mm) rigid power circuit screw clamp terminals 2 1.5-6 mm² 4 mm) flexible without cable end
Net Weight	0.4 kg
Fixing Mode	plug-in
[Uimp] Rated Impulse Withstand Voltage	6 kVIEC 60947-6-2
Inrush Restraint Duration	25 ms AC 15 ms DC
Standards	EN 60947-6-2 IEC 60947-6-2 UL 60947-4-1, with phase barrier CSA C22.2 No 60947-4-1, with phase barrier
[Ui] Rated Insulation Voltage	690 V IEC 60947-6-2 600 V UL 60947-4-1 600 V CSA C22.2 No 60947-4-1
Compatibility Code	LU2MB
Operating Time	150 ms with change of direction 75 ms without change of direction
Width	45 mm
Tightening Torque	control circuit 0.8-1.2 N.m flat 5 mm control circuit 0.8-1.2 N.m Philips No 2 5 mm power circuit 1.9-2.5 N.m flat 6 mm power circuit 1.9-2.5 N.m Philips No 2 6 mm
Depth	105 mm
Network Frequency	40...60 Hz
Rohs Exemption Information	Yes
Mercury Free	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive	Compliant
Ambient Air Temperature For Operation	-25-60 °C with LUCM -25-70 °C with LUCA, LUCB, LUCC, LUCD
Resistance To Radiated Fields	10 V/m level 3 IEC 61000-4-3
Shock Resistance	10 gn power poles open IEC 60068-2-27 15 gn power poles closed IEC 60068-2-27
Vibration Resistance	2 gn 5-300 Hz) power poles open IEC 60068-2-27 4 gn 5-300 Hz) power poles closed IEC 60068-2-27
Ambient Air Temperature For Storage	-40-85 °C
Protective Treatment	TH IEC 60068
Ip Degree Of Protection	IP20 IEC 60947-1 front panel and wired terminals) IP20 IEC 60947-1 other faces) IP40 IEC 60947-1 front panel outside connection zone)
Resistance To Electrostatic Discharge	8 kV level 3, in open air IEC 61000-4-2 8 kV level 4, on contact IEC 61000-4-2
Operating Altitude	6561.68 ft (2000 m)
Fire Resistance	960 °C parts supporting live components IEC 60695-2-12 650 °C IEC 60695-2-12
Immunity To Radioelectric Fields	10 V IEC 61000-4-6
Resistance To Fast Transients	2 kV 3 serial link IEC 61000-4-4 4 kV 4 all circuits except for serial link IEC 61000-4-4
