Fuse disconnector, TeSys DF, 3P, 600V, 25A, fuse size 10x38mm, spring type

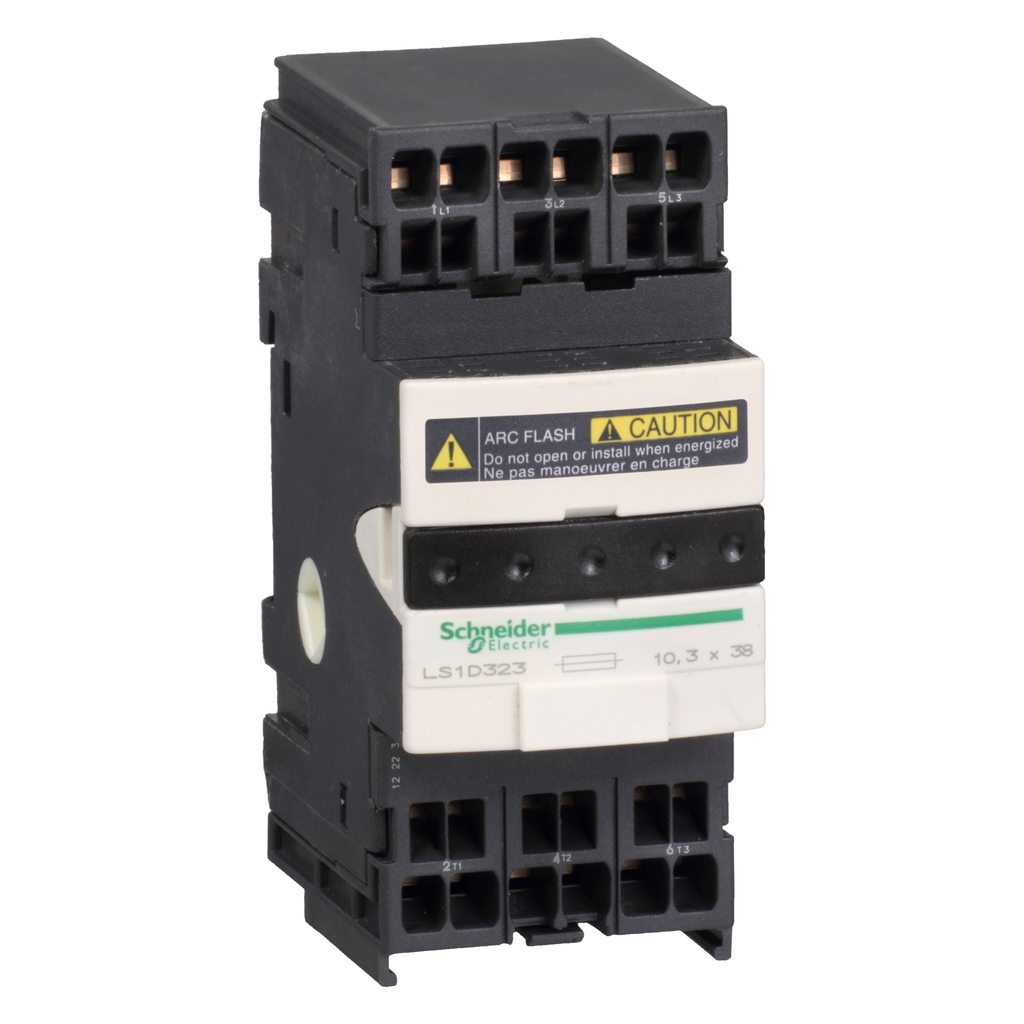

TeSys LS fuse carrier block, 3 poles (3P), for protection of motors and transformers up to 25A/690V. To be used with 10x38mm fuse links up to 25A and short circuit current up to 100kA@400V. It provides a front handle. Compact (45mm width), it can be used in modular panels, clipping on 35mm DIN rail or screw fixing on panel, connection by spring terminals, padlockable. Fuse links (10x38mm aM, gG type) and add-on auxiliaries, auxiliary signaling contact block, external handles for RH or LH side, additional contact block for 4 poles applications) are available (to be ordered separately). Multi standards certified (IEC, UL recognized), Green Premium product (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Or Component Type | fuse-disconnector |
|---|---|
| Product Name | TeSys LS1 |
| Range | TeSys |
| Poles Description | 3P |
| Device Short Name | LS1D |
| Warranty | 18 months |
| Fuse Size | 10 x 38 mm |
| [Ue] Rated Operational Voltage | 600 V |
| Mounting Support | rail |
| Connections - Terminals |
|
| Associated Fuse Rating |
|
| Mounting Position | vertical +/- 23°) |
| Control Type | toggle |
| Fuse Type |
|
| [Ie] Rated Operational Current | 25 Apower circuit |
| Local Signalling | blown fuse indication |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -50-70 °C operation |
| Height | 89 mm |
| Standards |
|
| Net Weight | 0.27 kg |
| Ip Degree Of Protection | IP20 |
| Protective Treatment | TH |
| Width | 45 mm |
| Depth | 68.3 mm |
