LS1D30
Fuse Holder, TeSys LS1, 3P, 30A, fuse type CC or KTKR, 0.41in x 1.5in fuse, DIN rail mount, screw type terminals

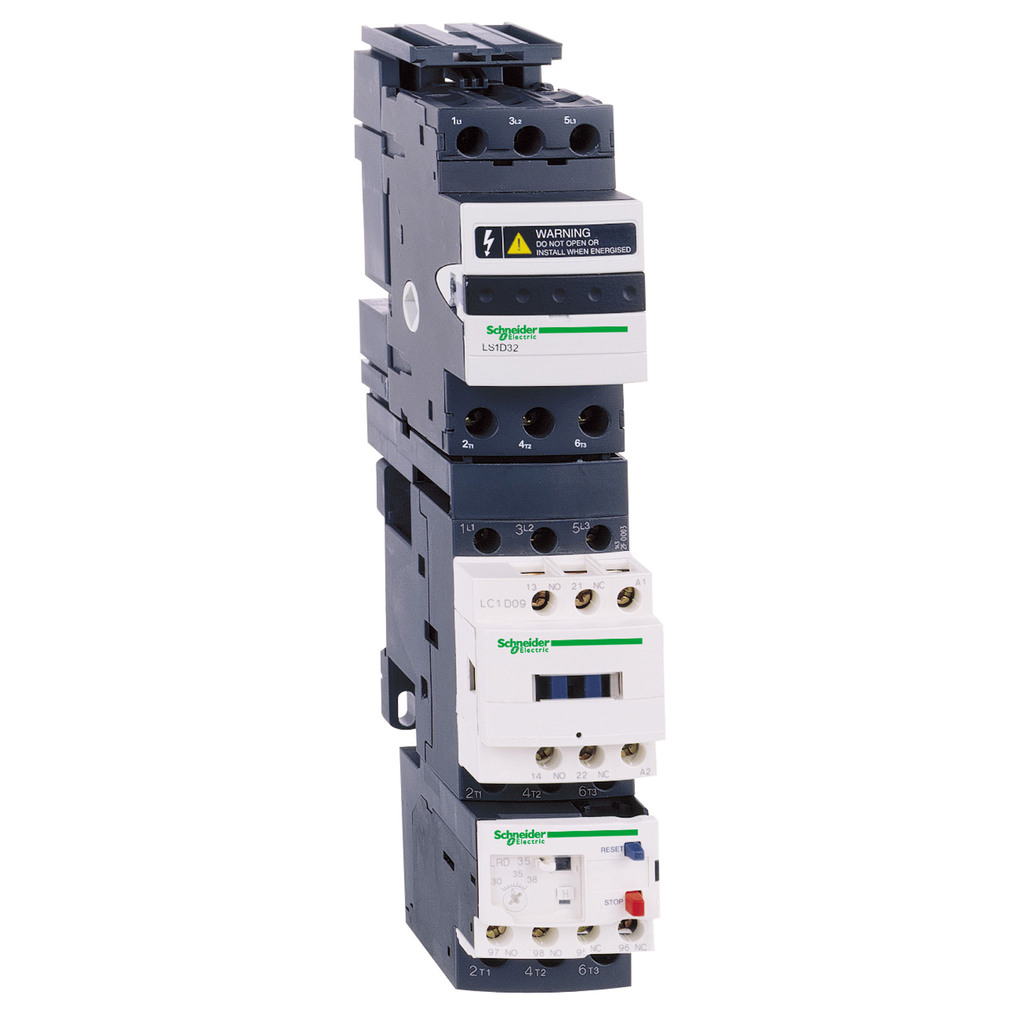

TeSys LS1 fuseholders are for use with TeSys D contactors. Meets the application needs for fusible starters. Fuseholder is DIN rail mounted. The 3 pole fuseholder is for Class CC or KTK-R fuses. The 30A fuse dimensions are 0.41 inches by 1.5 inches. The fuse holder is 3.50 inches tall, 1.77 inches wide and 2.69 inches deep. It weighs 0.66 lbs. Fuse holder is UL Listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Or Component Type | fuse-disconnector |
|---|---|
| Product Name | TeSys LS1 |
| Range | TeSys |
| Poles Description | 3P |
| Device Short Name | LS1D |
| Warranty | 18 months |
| Fuse Size | 0.41 x 1.50 in |
| [Ue] Rated Operational Voltage | 600 V |
| Mounting Support | rail |
| Connections - Terminals |
|
| Mounting Position | vertical +/- 23°) |
| Control Type | toggle |
| Tightening Torque | 1.7 N.m screw clamp terminals |
| Fuse Type | CC |
| [Ie] Rated Operational Current | 30 Apower circuit |
| Local Signalling | blown fuse indication |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -50-70 °C operation |
| Height | 89 mm |
| Standards |
|
| Net Weight | 0.3 kg |
| Ip Degree Of Protection | IP20 |
| Protective Treatment | TH |
| Width | 45 mm |
| Depth | 68.3 mm |
