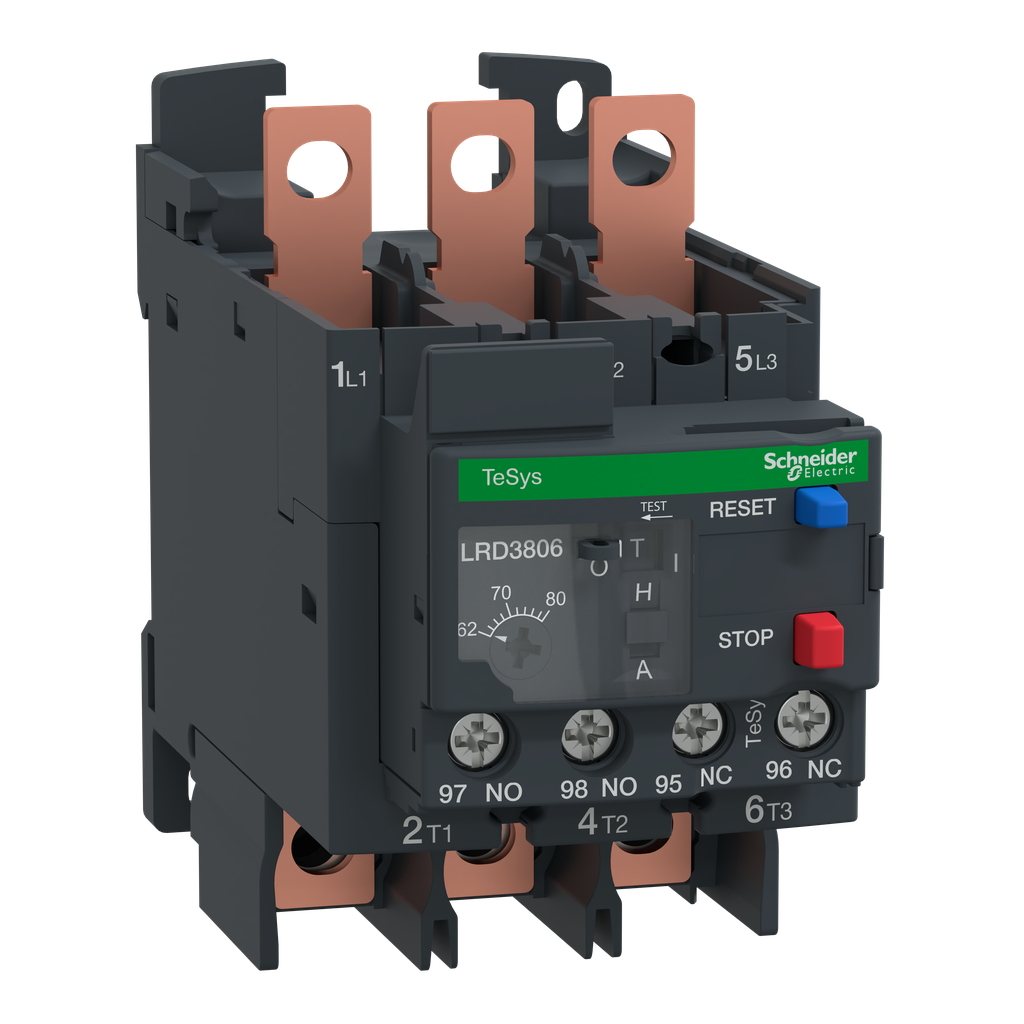

TeSys Deca differential thermal overload relay 62-80A class10A for lugs
TeSys LRD thermal overload relay, 80A/690V, thermal setting range 62-80A, tripping class 10A, for protection of 3-phase motors 37kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by EverLink BTR screw terminals , it connects directly to the bottom terminals of 3-pole contactors LC1D40A-D80A. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD96560 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Network Type |
|
|---|---|
| Thermal Protection Adjustment Range | 62-80 A |
| Relay Application | motor protection |
| Product Or Component Type | differential thermal overload relay |
| Product Name |
|
| Thermal Overload Class | class 10A IEC 60947-4-1 |
| Range |
|
| [Ui] Rated Insulation Voltage |
|
| Product Compatibility | LC1D80A |
| Device Short Name | LRD |
| Warranty | 18 months |
| Network Frequency | 0...400 Hz |
| Height | 70 mm |
| [Ith] Conventional Free Air Thermal Current | 5 A signalling circuit |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Connection Pitch | 17.5 mm |
| Connections - Terminals |
|
| Phase Failure Sensitivity | tripping current 130 % of Ir on two phase, the last one at 0 |
| [Ue] Rated Operational Voltage | 690 V AC 0...400 Hz power circuit IEC 60947-4-1 |
| Associated Fuse Rating |
|
| Net Weight | 0.375 kg |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV |
| Power Dissipation Per Pole | 4.8 W |
| Permissible Current |
|
| Tripping Threshold | 1.14 +/- 0.06 Ir IEC 60947-4-1 |
| Tightening Torque |
|
| Control Type |
|
| Mounting Support |
|
| Color | Gray SE GREY 6) |
| Width | 55 mm |
| Depth | 123 mm |
| Temperature Compensation | -20-60 °C |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP080405EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | ENVEOLI0804005_V1 |
| Eu Rohs Directive | Compliant |
| Product Certifications |
|
| Mechanical Robustness |
|
| Standards |
|
| Climatic Withstand | IACS E10 |
| Ambient Air Temperature For Operation | -20-60 °C without derating IEC 60947-4-1 |
| Dielectric Strength | 1.89 kV 50 Hz IEC 60947-1 |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Flame Retardance | V1 conforming to UL 94 |
| Ambient Air Temperature For Storage | -60-70 °C |
