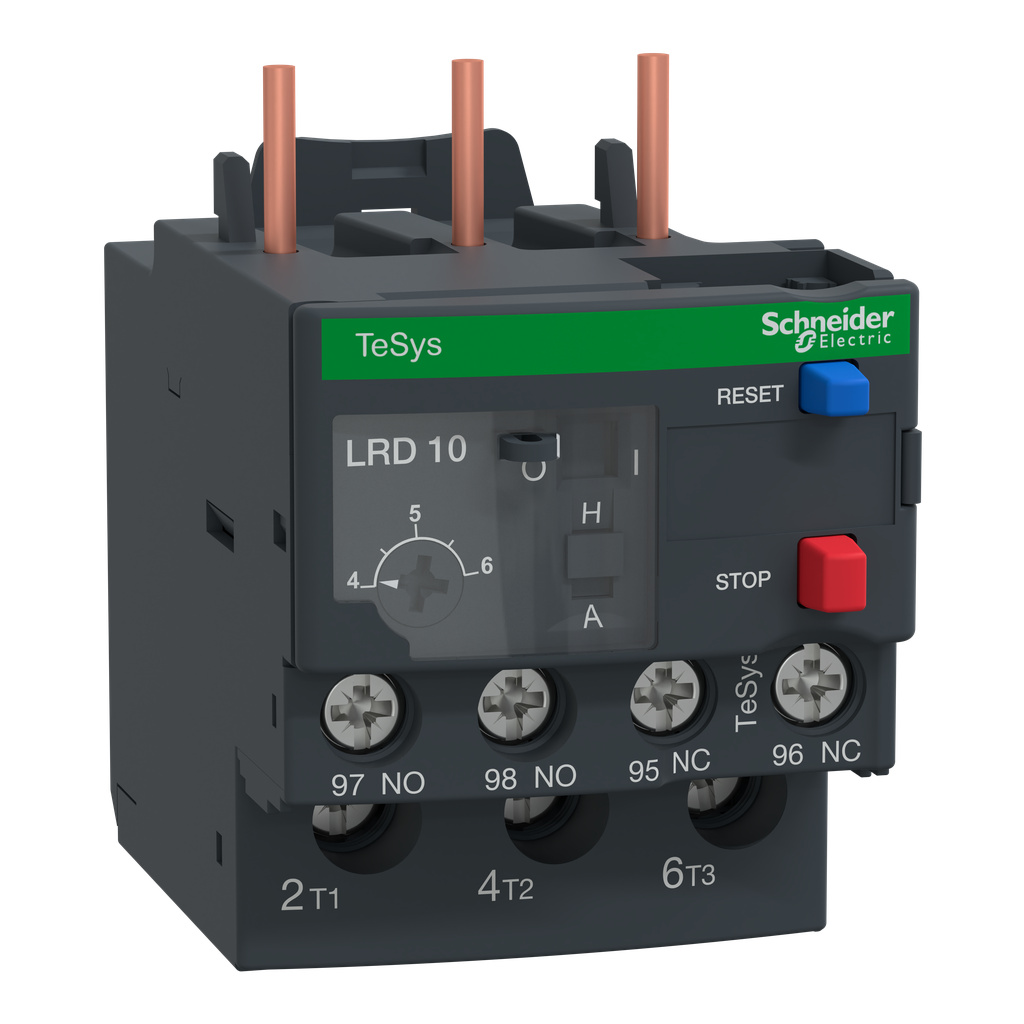

TeSys LRD thermal overload relay, 6A/690V, thermal setting range 4-6A, tripping class 20, for protection of 3-phase motors 2.2kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B205 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).
Brand: Schneider Electric
Add to Quote CatalogueNetwork Type |
|
---|---|
Thermal Protection Adjustment Range | 4-6 A |
Relay Application | motor protection |
Product Or Component Type | differential thermal overload relay |
Product Name |
|
Thermal Overload Class | class 20 IEC 60947-4-1 |
Range |
|
[Ui] Rated Insulation Voltage |
|
Product Compatibility |
|
Device Short Name | LRD |
Warranty | 18 months |
Network Frequency | 0...400 Hz |
Height | 66 mm |
[Ith] Conventional Free Air Thermal Current | 5 A signalling circuit |
Auxiliary Contact Composition | 1 NO + 1 NC |
Connections - Terminals |
|
Phase Failure Sensitivity | tripping current 130 % of Ir on two phase, the last one at 0 |
[Ue] Rated Operational Voltage | 690 V AC 0...400 Hz power circuit IEC 60947-4-1 |
Associated Fuse Rating |
|
Net Weight | 0.144 kg |
[Uimp] Rated Impulse Withstand Voltage | 6 kV |
Permissible Current |
|
Tripping Threshold | 1.14 +/- 0.06 Ir IEC 60947-4-1 |
Tightening Torque |
|
Control Type |
|
Mounting Support |
|
Width | 45 mm |
Depth | 76 mm |
Temperature Compensation | -20-60 °C |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP080206EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Circularity Profile | ENVEOLI0802006 |
Eu Rohs Directive | Compliant |
Product Certifications |
|
Mechanical Robustness |
|
Standards |
|
Climatic Withstand | IACS E10 |
Ambient Air Temperature For Operation | -20-60 °C without derating IEC 60947-4-1 |
Dielectric Strength | 1.89 kV 50 Hz IEC 60947-1 |
Ip Degree Of Protection | IP20 conforming to IEC 60529 |
Ambient Air Temperature For Storage | -60-70 °C |
