LRD06L - TeSys Deca thermal overload relays - 1...1.6 A - class 20

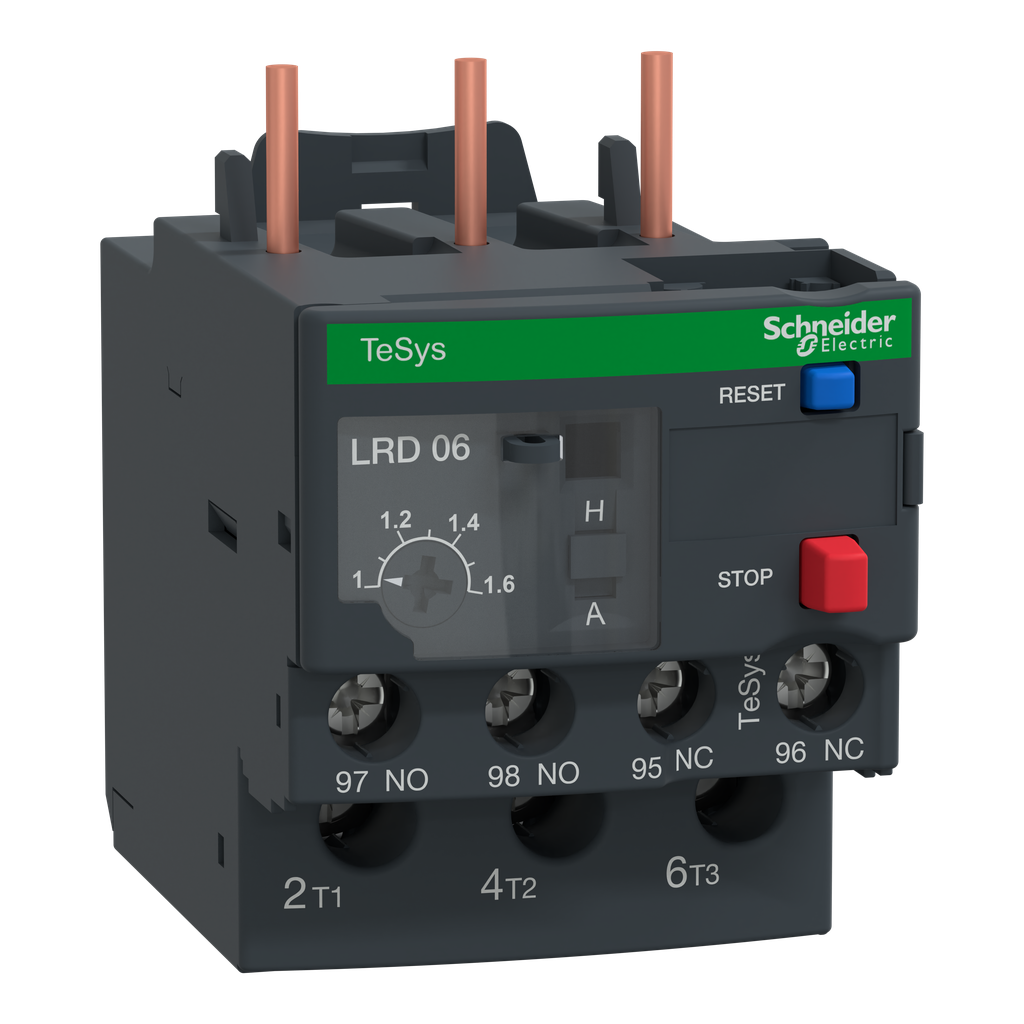

LRD06L

TeSys Deca thermal overload relays - 1...1.6 A - class 20

LRD06L is a TeSys LRD thermal overload relay from Schneider Electric to be used with a TeSys D contactor. It protects motors 0.25-0.55kW@400V thanks to a thermal range 1-1.6A, a tripping class 20 and phase unbalance protection. LRD06L is a TeSys LRD thermal overload relay from Schneider Electric for direct mounting on TeSys D contactors. With a thermal setting range 1-1.6A, a tripping class 20 and phase unbalance detection, it protects motors 0.25-0.55kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Thermal overload protection relay, bimetallic type, with phase unbalance protection (differential). Direct mounting on the bottom terminals of a Tesys contactor LC1D09-D38 to form a compact starter. Light and compact, 45mm wide. Temperature compensated for a good accuracy of the protection. Manual control with test & reset buttons, manual / automatic reset selector. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. Can be completed with terminal blocks for separate mounting (LAD7B, LAD96) and remote control devices (LAD703, LA7D03).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Network Type	AC DC
Thermal Protection Adjustment Range	1-1.6 A
Relay Application	motor protection
Product Or Component Type	differential thermal overload relay
Product Name	TeSys LRD TeSys Deca
Thermal Overload Class	class 20 IEC 60947-4-1
Range	TeSys TeSys Deca
[Ui] Rated Insulation Voltage	power circuit 600 V CSA power circuit 600 V UL power circuit 690 V IEC 60947-4-1
Product Compatibility	LC1D25 LC1D09 LC1D32 LC1D12 LC1D18 LC1D38
Device Short Name	LRD
Warranty	18 months
Network Frequency	0...400 Hz
Height	66 mm
[Ith] Conventional Free Air Thermal Current	5 A signalling circuit
Auxiliary Contact Composition	1 NO + 1 NC
Connections - Terminals	control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end power circuit screw clamp terminals 1 1.5-10 mm² flexible without cable end power circuit screw clamp terminals 1 1-4 mm² flexible with cable end power circuit screw clamp terminals 1 1-6 mm² solid without cable end
Phase Failure Sensitivity	tripping current 130 % of Ir on two phase, the last one at 0
[Ue] Rated Operational Voltage	690 V AC 0...400 Hz power circuit IEC 60947-4-1
Associated Fuse Rating	4 A gG signalling circuit 4 A BS signalling circuit
Net Weight	0.144 kg
[Uimp] Rated Impulse Withstand Voltage	6 kV
Permissible Current	3 A 120 V AC-15 signalling circuit 0.22 A 125 V DC-13 signalling circuit
Tripping Threshold	1.14 +/- 0.06 Ir IEC 60947-4-1
Tightening Torque	control circuit 1.7 N.m screw clamp terminals power circuit 1.7 N.m screw clamp terminals
Control Type	Red push-button stop Blue push-button reset
Mounting Support	plate, with specific accessories rail, with specific accessories under contactor
Width	45 mm
Depth	76 mm
Temperature Compensation	-20-60 °C
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP080206EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI0802006
Eu Rohs Directive	Compliant
Product Certifications	IEC UL CSA EAC ABS ATEX INERIS UKCA
Mechanical Robustness	shocks15 Gn for 11 ms IEC 60068-2-7 vibrations3 GN IEC 60068-2-6
Standards	EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 EN 50495
Climatic Withstand	IACS E10
Ambient Air Temperature For Operation	-20-60 °C without derating IEC 60947-4-1
Dielectric Strength	1.89 kV 50 Hz IEC 60947-1
Ip Degree Of Protection	IP20 conforming to IEC 60529
Ambient Air Temperature For Storage	-60-70 °C
