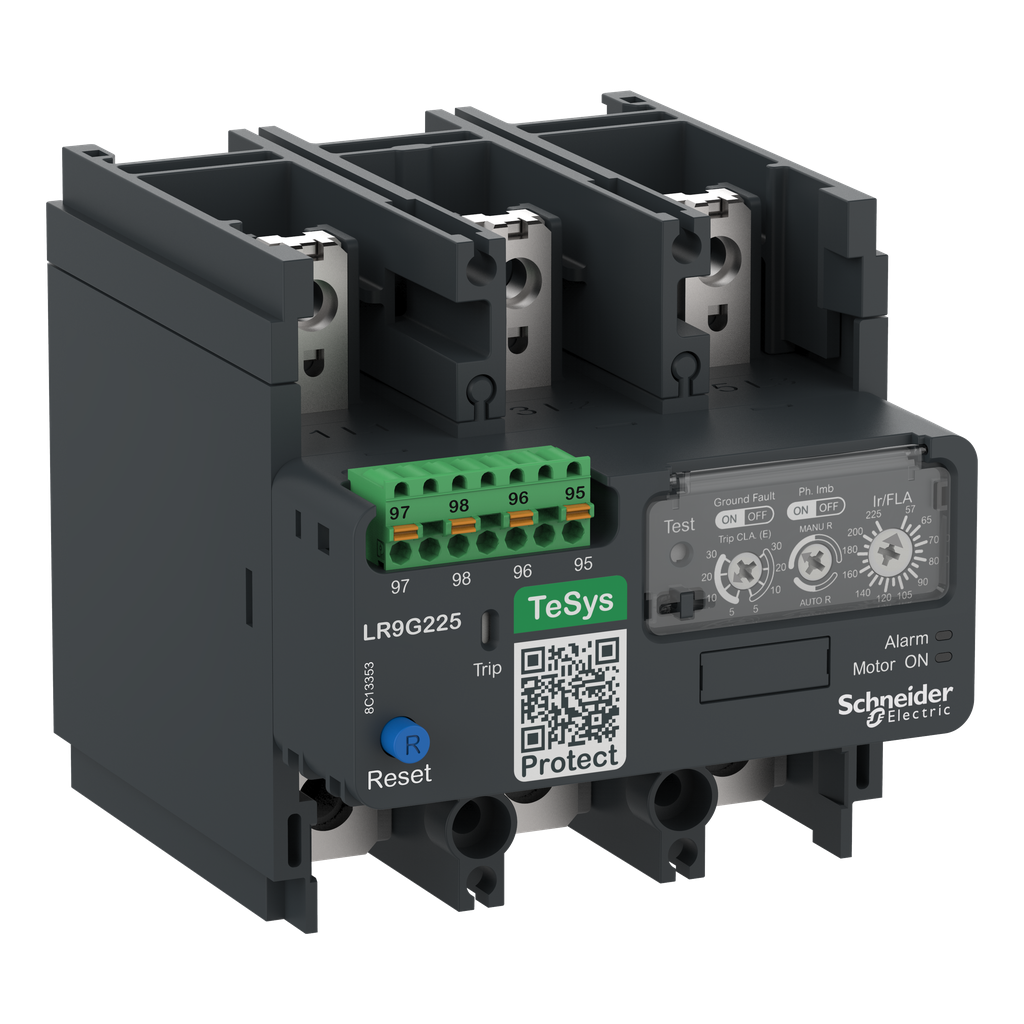

TeSys LR9G 115A thermal overload relay is compatible with TeSys Giga high power contactor, push-in control connection. It provides phase imbalance, phase failure, in-built ground-fault and single-phase loads protections. It is available for manual and auto reset options and LED indicator for Motor ON and pre-trip alarm. Tripping classes is selectable from class 5E to class 30E to suit different application needs from fast tripping, general purpose and high inertia loads. It is suitable for independent mounting or direct mounting with LC1G contactors. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It can cover -25°C to 60°C operation ambient air temperature without derating up to 3000m altitude. Multi standards certified (CE,CB,CCC,cULus,EAC,KC,RCM,Marine) and Green Premium compliant (RoHs/Reach). Unique QR code provides quick access to complete product data.
Brand: Schneider Electric
Add to Quote CatalogueNetwork Type | AC |
---|---|
Thermal Protection Adjustment Range | 28-115 A |
Relay Application | motor protection |
Product Or Component Type | electronic thermal overload relay |
Product Name | TeSys LRG |
Thermal Overload Class | class 5E...30E IEC 60947-4-1 |
Range | TeSys |
Device Short Name | LR9G |
Product Certifications |
|
Network Frequency |
|
[Uc] Control Circuit Voltage |
|
[Ith] Conventional Free Air Thermal Current | 5 A |
Tightening Torque | 18 N.m |
Reset |
|
Standards |
|
[Ue] Rated Operational Voltage | 1000 V AC 50/60 Hz |
Electromagnetic Compatibility |
|
Protection Type |
|
[Uimp] Rated Impulse Withstand Voltage | 8 kV |
Connections - Terminals |
|
Contacts Type And Composition | 1 NO + 1 NC |
Surge Withstand | 4 kV |
Tripping Threshold | 1.125 +/- 0.07 In IEC 60947-4-1 |
Mounting Support |
|
Mechanical Durability | 7000 cycles |
Local Signalling |
|
Overvoltage Category | III |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP2105014 |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI2105014 |
Eu Rohs Directive | Compliant |
Halogen Content Performance | Halogen free plastic parts product |
Height | 107 mm |
Ambient Air Temperature For Operation | -25-60 °C |
Net Weight | 0.9 kg |
Ambient Air Temperature For Storage | -60-80 °C |
Protective Treatment | TH |
Ip Degree Of Protection |
|
Mechanical Robustness |
|
Color | dark grey |
Width | 105 mm |
Depth | 126 mm |
Ambient Air Transport Temperature | -25-60 °C |
Permissible Ambient Air Temperature Around The Device | -40-60 °C at Uc |
