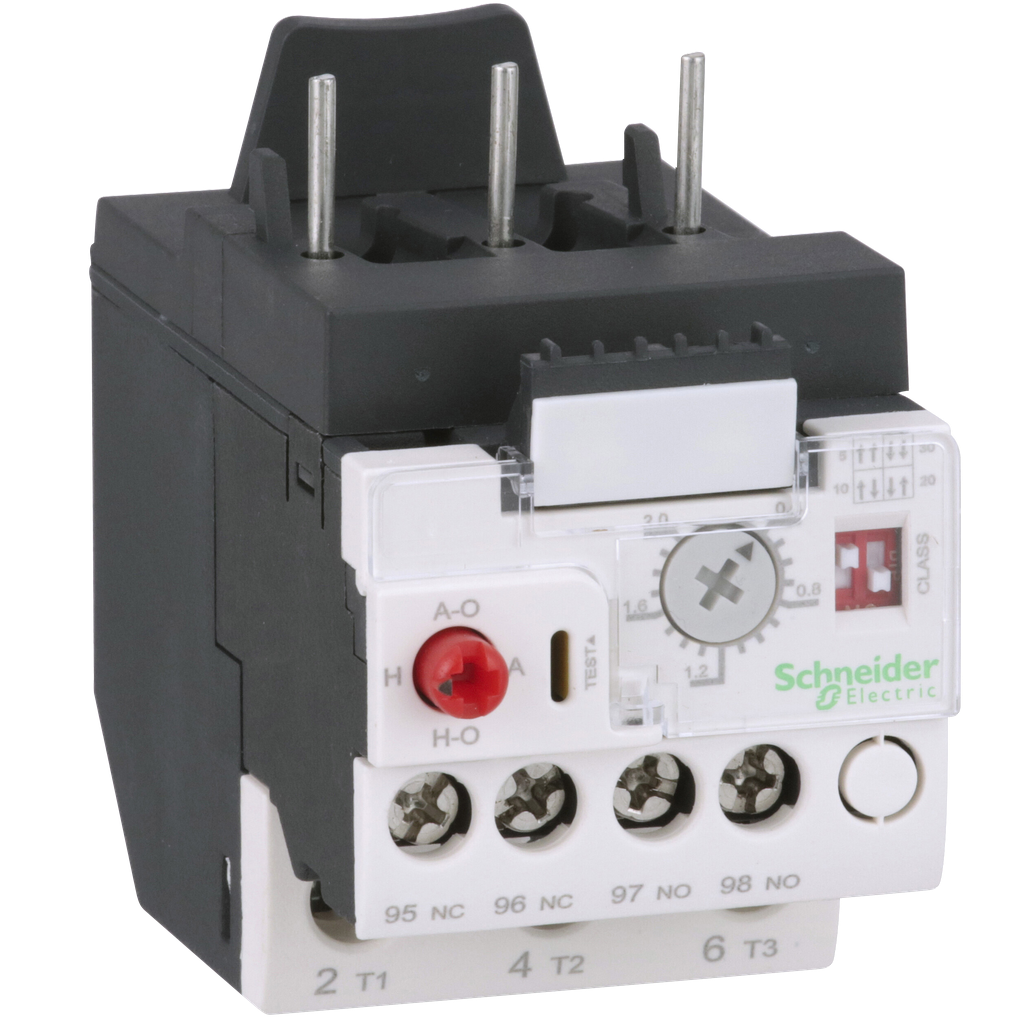

LR9D02 is a TeSys LR9D electronic overload relay from Schneider Electric to be used with a TeSys D contactor. With a thermal range 0.4-2A, selectable tripping class 5-10-20-30 and phase unbalance protection, it protects motors 0.18 to 0.75kW@400V. LR9D02 is a TeSys LR9D electronic overload relay from Schneider Electric for direct mounting on TeSys D contactors. With a large thermal setting range 0.4-2A, a selectable tripping class 5-10-20-30 and phase unbalance detection, it protects motors 0.18 to 0.75kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Thermal overload protection, electronic type, with phase unbalance protection (differential), self powered (no external power supply needed). Direct mounting on the bottom terminals of a Tesys LC1D09-D38 to form a compact starter contactor. Light and compact, 45mm wide. Manual control with test & reset buttons, manual / automatic reset selector. High accuracy, temperature compensated to keep a precise tripping over the ambient temperature range. Wide protection adjustment range 1.6-8A and selectable tripping class 5-10-20 -30. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. 90% reduction in energy dissipation compared to a thermal overload relay. Can be completed with terminal blocks and separate mounting accessories (LAD7B).
Brand: Schneider Electric
Add to Quote CatalogueThermal Protection Adjustment Range | 0.4-2 A |
---|---|
Power Consumption In W | 300 mW |
Relay Application | motor protection |
Product Or Component Type | electronic thermal overload relay |
Product Name | TeSys LRD |
Thermal Overload Class | class 5…30 |
Range | TeSys |
Mounting Support |
|
Product Compatibility |
|
Device Short Name | LR9D |
Time Range | 1.5...4 min - automatic reset time |
Height | 72.5 mm |
[Ith] Conventional Free Air Thermal Current | 5 A signalling circuit |
Tightening Torque |
|
Phase Failure Sensitivity | phase difference > 40% 3-3 s IEC 60947-4-1 |
[Ue] Rated Operational Voltage |
|
Electromagnetic Compatibility |
|
Associated Fuse Rating |
|
Net Weight | 0.18 kg |
[Uimp] Rated Impulse Withstand Voltage | 6 kV |
Connections - Terminals |
|
[Ui] Rated Insulation Voltage |
|
Tripping Threshold | 1.25 In IEC 60947-4-1 |
Control Type |
|
Width | 45 mm |
Depth | 79.9 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1502001EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Circularity Profile | ENVEOLI1502001EN |
Eu Rohs Directive | Compliant |
Product Certifications |
|
Mechanical Robustness |
|
Standards |
|
Ambient Air Temperature For Operation | -25-70 °C IEC 60255-8 |
Dielectric Strength | 6 kV 50 Hz IEC 60255-5 |
Ambient Air Temperature For Storage | -55-80 °C |
Ip Degree Of Protection | IP20 front face IEC 60529 |
Operating Altitude | 6561.68 ft (2000 m) without derating |
