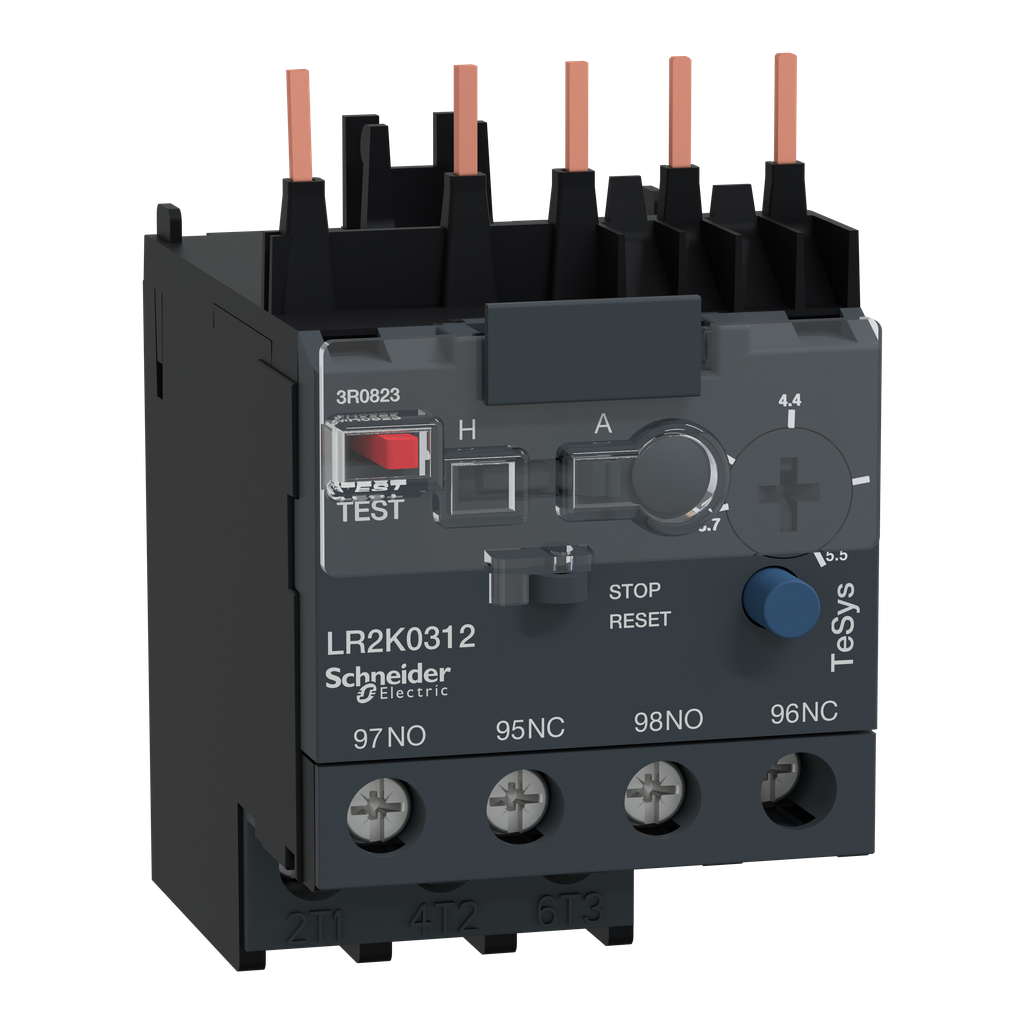

TeSys K overload relays are designed to be used with TeSys K contactors to make a motor starter. These differential thermal overload relays detect over currents in the lines to the motor. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 3.7 to 5.5 amperes. This trip current rating is calibrated per Class 10A. Mounting on DIN rail, separated from the contactor, with use of a terminal block LA7K0064 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach).
Brand: Schneider Electric
Add to Quote CatalogueNetwork Type |
|
---|---|
Thermal Protection Adjustment Range | 3.7-5.5 A |
Relay Application | motor protection |
Product Or Component Type | differential thermal overload relay |
Product Name | TeSys LRK |
Thermal Overload Class | class 10A IEC 60947-4-1 |
Range | TeSys |
[Ui] Rated Insulation Voltage |
|
Product Compatibility |
|
Device Short Name | LR2K |
Warranty | 18 months |
Network Frequency | <= 400 Hz |
Height | 58 mm |
[Ith] Conventional Free Air Thermal Current | 6 A signalling circuit |
Auxiliary Contact Composition | 1 NO + 1 NC |
Phase Failure Sensitivity | yes IEC 60947-4-1 |
[Ue] Rated Operational Voltage |
|
Associated Fuse Rating |
|
Net Weight | 0.145 kg |
Connections - Terminals |
|
[Uimp] Rated Impulse Withstand Voltage | 6 kV |
Power Dissipation Per Pole | 2 W |
Local Signalling | trip indicator Yellow) |
Tightening Torque |
|
Control Type |
|
Mounting Support |
|
Width | 45 mm |
Depth | 65 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP2211018 |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Circularity Profile | ENVEOLI2211018 |
Eu Rohs Directive | Compliant |
Product Certifications |
|
Mechanical Robustness |
|
Standards |
|
Ambient Air Temperature For Operation |
|
Ip Degree Of Protection | IP2X conforming to IEC 60529 |
Flame Retardance |
|
Ambient Air Temperature For Storage | -40-70 °C |
Protective Treatment |
|
Operating Altitude | 6561.68 ft (2000 m) without derating |
Fire Resistance | 850 °C IEC 60695-2-1 |
