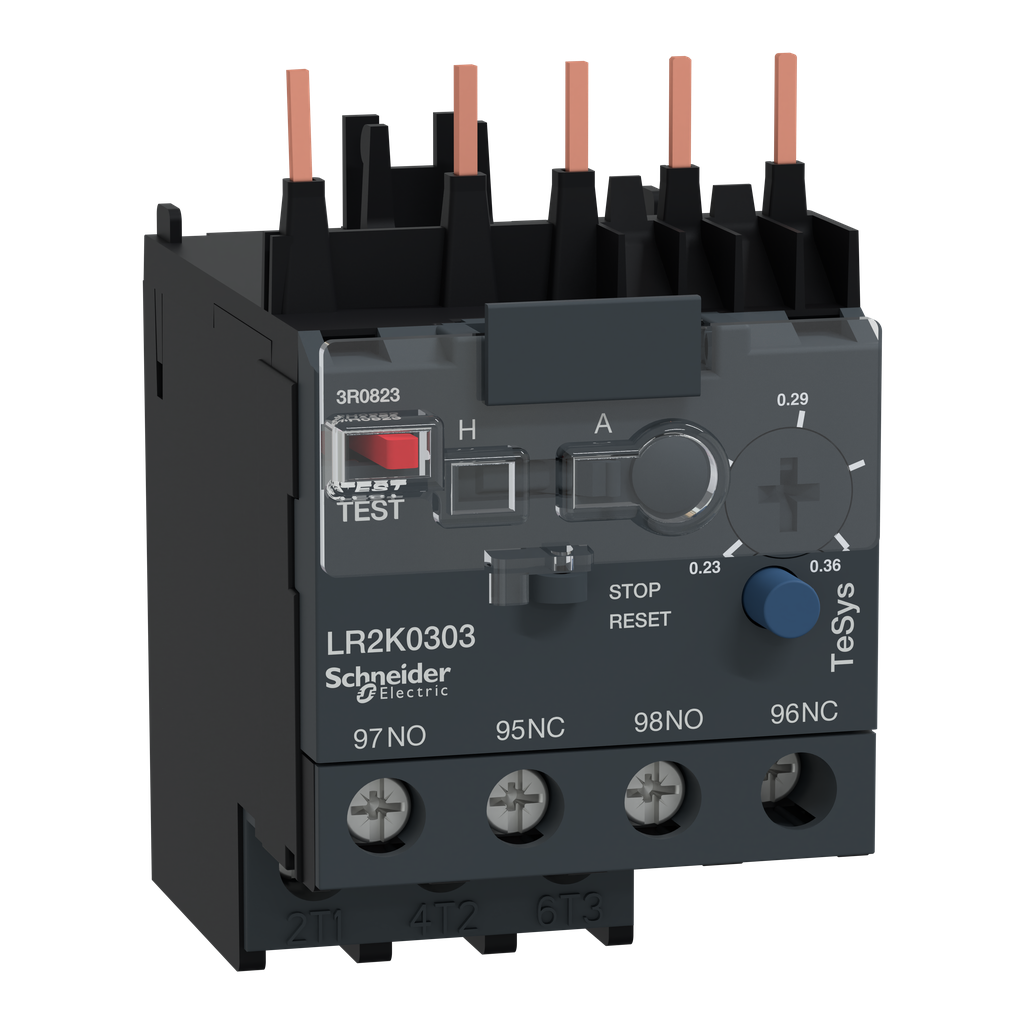

LR2K0303 is a TeSys LRK thermal overload relay from Schneider Electric to be used with a TeSys K contactors. It protects motors 0.06-0.09kW@400V thanks to a thermal range 0.23-0.36A, a tripping class 10A and phase unbalance protection. LR2K0303 is a TeSys LRK thermal overload relay from Schneider Electric for direct mounting on TeSys K contactors. With a thermal setting range 0.23-0.36A, a tripping class 10A and phase unbalance detection, it protects motors 0.06-0.09kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Thermal overload protection relay, bimetallic type, with phase unbalance protection (differential). Direct mounting on the bottom terminals of a Tesys contactor LC1K06 to form a compact starter. Light and compact, 45mm wide. Manual control with test & reset buttons, manual / automatic reset selector. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. Can be completed with terminal blocks for separate mounting (LA7K0064).
Brand: Schneider Electric
Add to Quote CatalogueNetwork Type |
|
---|---|
Thermal Protection Adjustment Range | 0.23-0.36 A |
Relay Application | motor protection |
Product Or Component Type | differential thermal overload relay |
Product Name | TeSys LRK |
Thermal Overload Class | class 10A IEC 60947-4-1 |
Range | TeSys |
[Ui] Rated Insulation Voltage |
|
Product Compatibility |
|
Device Short Name | LR2K |
Warranty | 18 months |
Network Frequency | <= 400 Hz |
Height | 58 mm |
[Ith] Conventional Free Air Thermal Current | 6 A signalling circuit |
Auxiliary Contact Composition | 1 NO + 1 NC |
Phase Failure Sensitivity | yes IEC 60947-4-1 |
[Ue] Rated Operational Voltage |
|
Associated Fuse Rating |
|
Net Weight | 0.145 kg |
Connections - Terminals |
|
[Uimp] Rated Impulse Withstand Voltage | 6 kV |
Power Dissipation Per Pole | 2 W |
Local Signalling | trip indicator Yellow) |
Tightening Torque |
|
Control Type |
|
Mounting Support |
|
Width | 45 mm |
Depth | 65 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP2211018 |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Circularity Profile | ENVEOLI2211018 |
Eu Rohs Directive | Compliant |
Product Certifications |
|
Mechanical Robustness |
|
Standards |
|
Ambient Air Temperature For Operation |
|
Ip Degree Of Protection | IP2X conforming to IEC 60529 |
Flame Retardance |
|
Ambient Air Temperature For Storage | -40-70 °C |
Protective Treatment |
|
Operating Altitude | 6561.68 ft (2000 m) without derating |
Fire Resistance | 850 °C IEC 60695-2-1 |
