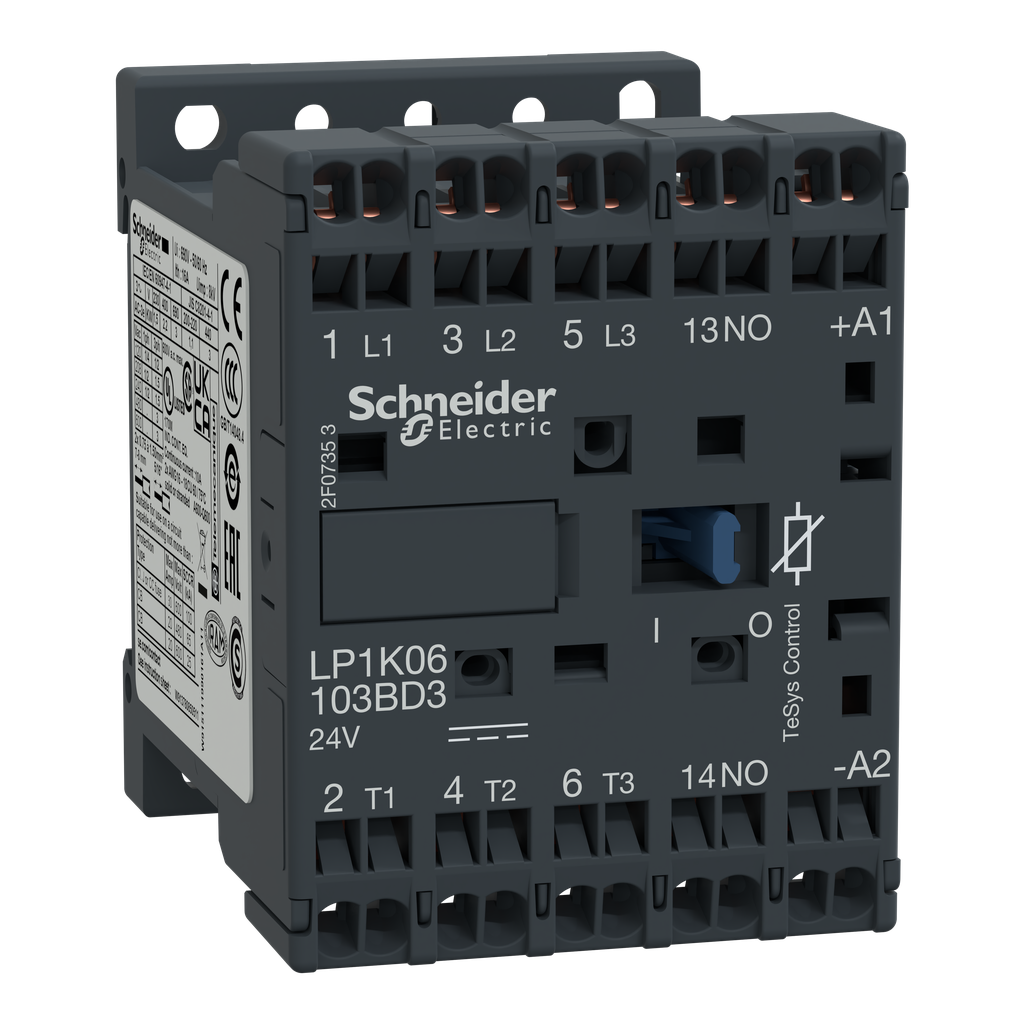

LP1K12103BD3 from Schneider Electric is a 3-pole TeSys K contactor for motor applications up to 5.5kW@400V. It provides a 24V DC coil with surge suppressor, 1NO built-in auxiliary contact, connection by spring terminals. Very compact, DIN-rail mounting and screw fixing, it procures reliability and durability to standard applications. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC) and Green Premium compliant (RoHs/Reach). Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueContactor Application |
|
---|---|
Product Or Component Type | contactor |
Range | TeSys |
Device Short Name | LP1K |
Warranty | 18 months |
Minimum Switching Current | 5 mA signalling circuit |
[Uc] Control Circuit Voltage | 24 V DC |
[Ue] Rated Operational Voltage |
|
Height | 58 mm |
Average Impedance | 3 mOhm - Ith 16 A 50 Hz power circuit |
Auxiliary Contact Composition | 1 NO |
Control Circuit Voltage Limits |
|
[Ith] Conventional Free Air Thermal Current |
|
Mounting Support |
|
Control Circuit Type | DC standard |
Safety Reliability Level |
|
Hold-In Power Consumption In W | 3-3 W 20 °C |
Insulation Resistance | > 10 MOhm signalling circuit |
Rated Breaking Capacity |
|
Irms Rated Making Capacity |
|
Motor Power Kw |
|
Associated Fuse Rating |
|
Net Weight | 0.225 kg |
[Uimp] Rated Impulse Withstand Voltage | 8 kV |
Connections - Terminals |
|
Pole Contact Composition | 3 NO |
Coil Technology | built-in bidirectional peak limiting diode suppressor |
Utilisation Category |
|
[Ie] Rated Operational Current |
|
Minimum Switching Voltage | 17 V signalling circuit |
Maximum Operating Rate | 3600 cyc/h |
Electrical Durability |
|
Mechanical Durability | 10 Mcycles |
Inrush Power In W | 3-3 W 20 °C) |
Auxiliary Contacts Type | instantaneous 1 NO |
Poles Description | 3P |
Operating Time |
|
Width | 45 mm |
Overvoltage Category | III |
Depth | 57 mm |
[Ui] Rated Insulation Voltage |
|
[Icw] Rated Short-Time Withstand Current |
|
Heat Dissipation | 1.3-1.3 W |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1503003EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Circularity Profile | ENVEOLI1503003EN |
Eu Rohs Directive | Compliant |
Product Certifications |
|
Ambient Air Temperature For Operation | -25-50 °C |
Standards |
|
Flame Retardance |
|
Ambient Air Temperature For Storage | -50-80 °C |
Ip Degree Of Protection | IP2X |
Operating Altitude | 6561.68 ft (2000 m) without derating |
